10W IP67 Continuous Strip

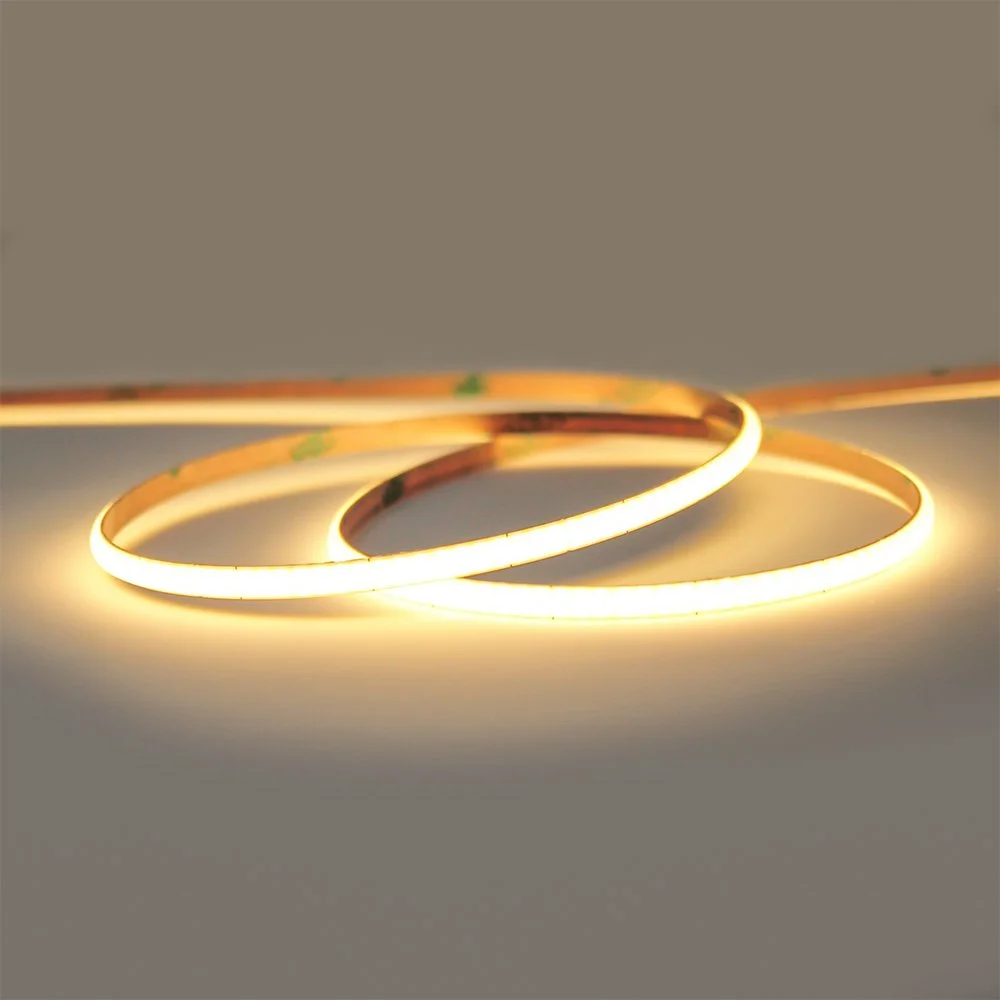

The 10W IP67 Continuous LED Strip is a dot free LED strip which is available in 5m/roll packets. This LED strip provides seamless and sophisticated LED lighting and is ideal for installation in LED profiles installed in bathrooms and externally.
SPECIFICATIONS
Power: 10W LED
Lumen Output: 900lm per metre
Colour Temperature: 3000K
Width: 8mm
Length: 5m roll per packet.
Adjustability: Fixed
CRI: 90-95
IP Rated: 67
Wiring Info: 240V or DALI to driver remote, low voltage to strip.
Input: 24V
Beam Angle: 120°
Dimming: DALI, Phase.
Warranty: 3 years.
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
DOWNLOADS
Photometric IES Files
