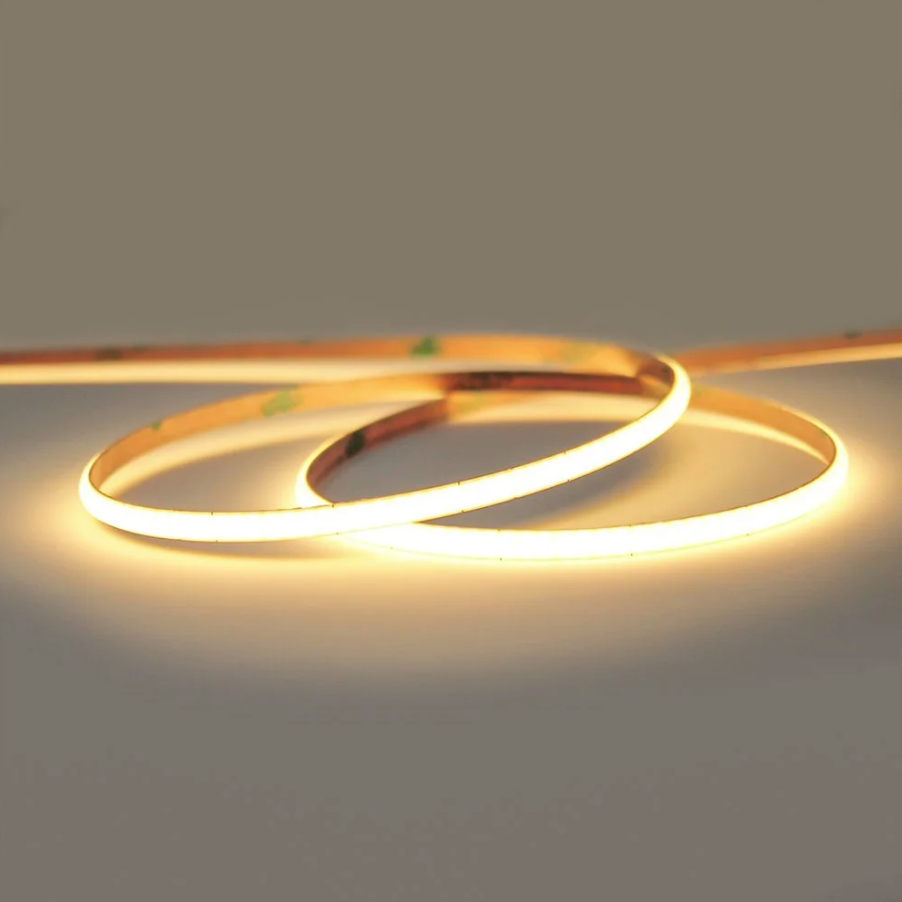

14W CCT IP67 LED Strip
The 14W CCT IP67 Continuous LED Strip is available in 10m rolls. This LED is ideal for installation in LED profiles for a range of applications in bathrooms, laundries and exterior locations.
CCT or circadian lighting offers a range of benefits, from enhancing materials and design features such as timber, stone, and artwork, to supporting natural circadian rhythms. It can provide energising light during productive hours and transition to softer, calming tones for relaxation, delivering both wellbeing benefits and enhanced visual appeal.
SPECIFICATIONS
Power: 14W/m Continuous LED
Lumen Output: 1250lm per metre
Width: 10mm
Height: 5mm
Length: 10m roll per packet.
Adjustability: Fixed
CRI: 95
IP Rated: 67
Wiring Info: 240V to driver. Low voltage and driver remote.
Input: 24V
Dimming: CCT Tunable White
CCT Strip: Requires 3-core cables: warm white, cool white and a positive cable.
CCT Tunable White: 2700K-6500K
Warranty: 3 years.
CONTROL GEAR OPTIONS (AVAILABLE IN DALI ONLY)
-
• 150W/24V CCT DALI Driver and Controller (Dimmable) - Remote Driver
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
DOWNLOADS
Photometric IES Files
