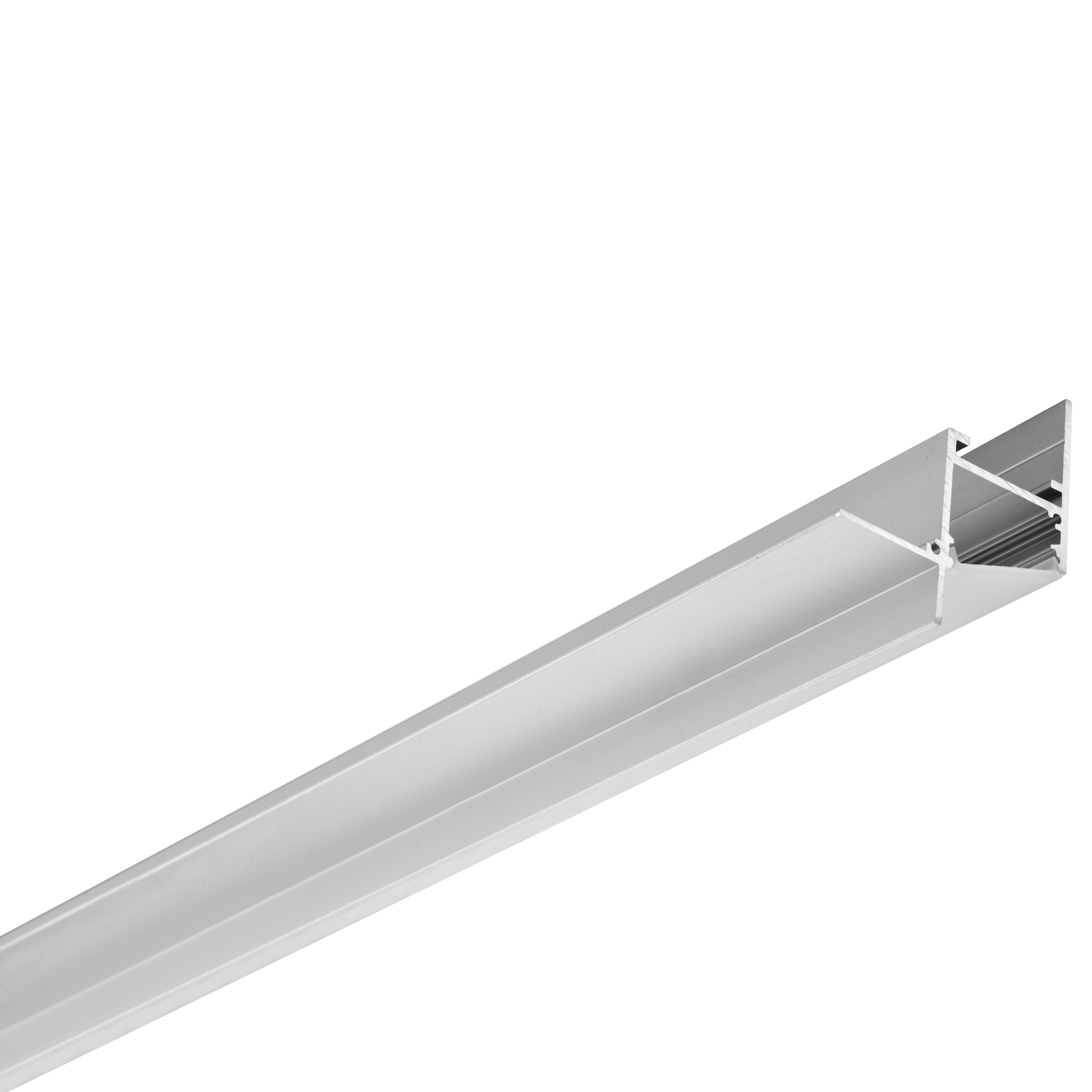

G018

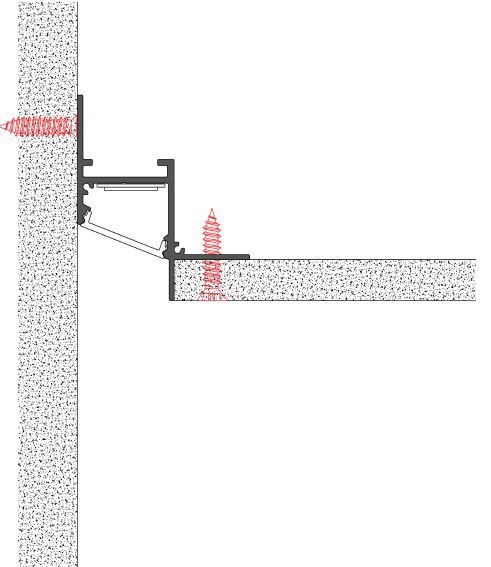

The G018 is a wall washer LED profile, suitable for installation in ceilings to create a shadowline of light and to wash down walls.

APPLICATION: Ceilings.

Power: See spec sheet for LED strip power options.

Colour Temperature: See spec sheet for colour temperature options.

Cut Out: See spec sheet for LED strip cut out.

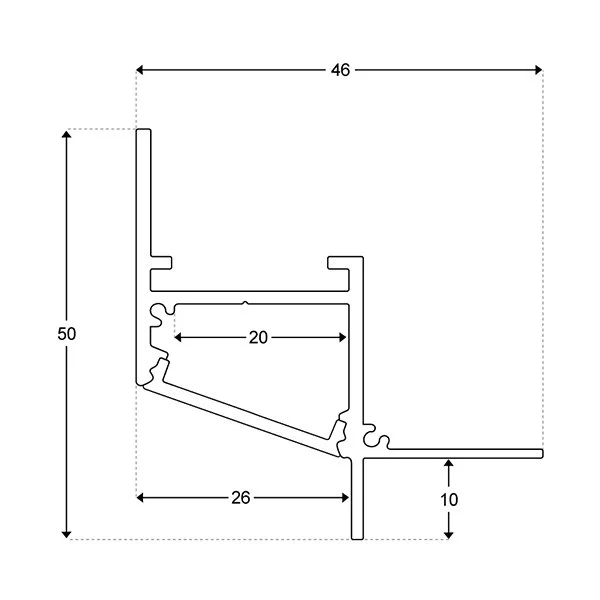

Depth: 50mm

Adjustability: Fixed

CRI: 80-95

IP Rated: 20, 65 or 67

Wiring Info: 240V/DALI to driver, low voltage, driver remote.

Input: 24V

Dimming: DALI, Phase, CCT Tunable White

CCT Strip Wiring Info: Requires 3-core cables: warm white, cool white & positive cable.

CCT Tunable White: See spec sheet for LED strip CCT tunable white options.

Warranty: 3 years.

Aluminium

• 10W/m Continuous IP20 3000K Strip
• 10W/m Continuous IP65 3000K Strip
• 20W/m 3000K IP20 Strip
• 15W/m 3000K IP66 Strip
CCT TUNABLE WHITE: (Requires 3-core cables: warm white, cool white & positive cable).
• 14W/m Continuous 2700K-6500K IP20 Strip
• 14W/m Continuous 2700K-6500K IP67 Strip
• 22W/m Continuous 2500K-5000K IP20 Strip
• 22W/m Continuous 2500K-5000K IP66 Strip
RGB CCT: (Requires 6-core cables: red, green, blue, warm white, cool white & positive cable).
• 19.2W RGB CCT IP20 Strip

• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
CCT TUNABLE WHITE:
• 150W/24V CCT DALI Driver and Controller (Dimmable) - Remote Driver
RGB CCT: (Confirm driver and/or controllers with LA Lounge).
• 150W/24V RGB CCT DALI Controller (Dimmable) - Remote Driver
