Athena
The Athena is an alabaster crystal and antique brass decorative wall light. This fitting is ideal for general and ambient lighting in a range of interior spaces, such as powder rooms, bedrooms and hallways.
SPECIFICATIONS
Power: 5W LED
Lumen Output: 450lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 60mm
Adjustability: Fixed
CRI: >90
IP Rated: 20
Wiring Info: DALI to driver or 240V to driver remote, low voltage to fitting. Wire in parallel.
Input: 24V
Beam Angle: Backlit
Dimming: Phase, DALI
Warranty: 3 years.
FINISHES

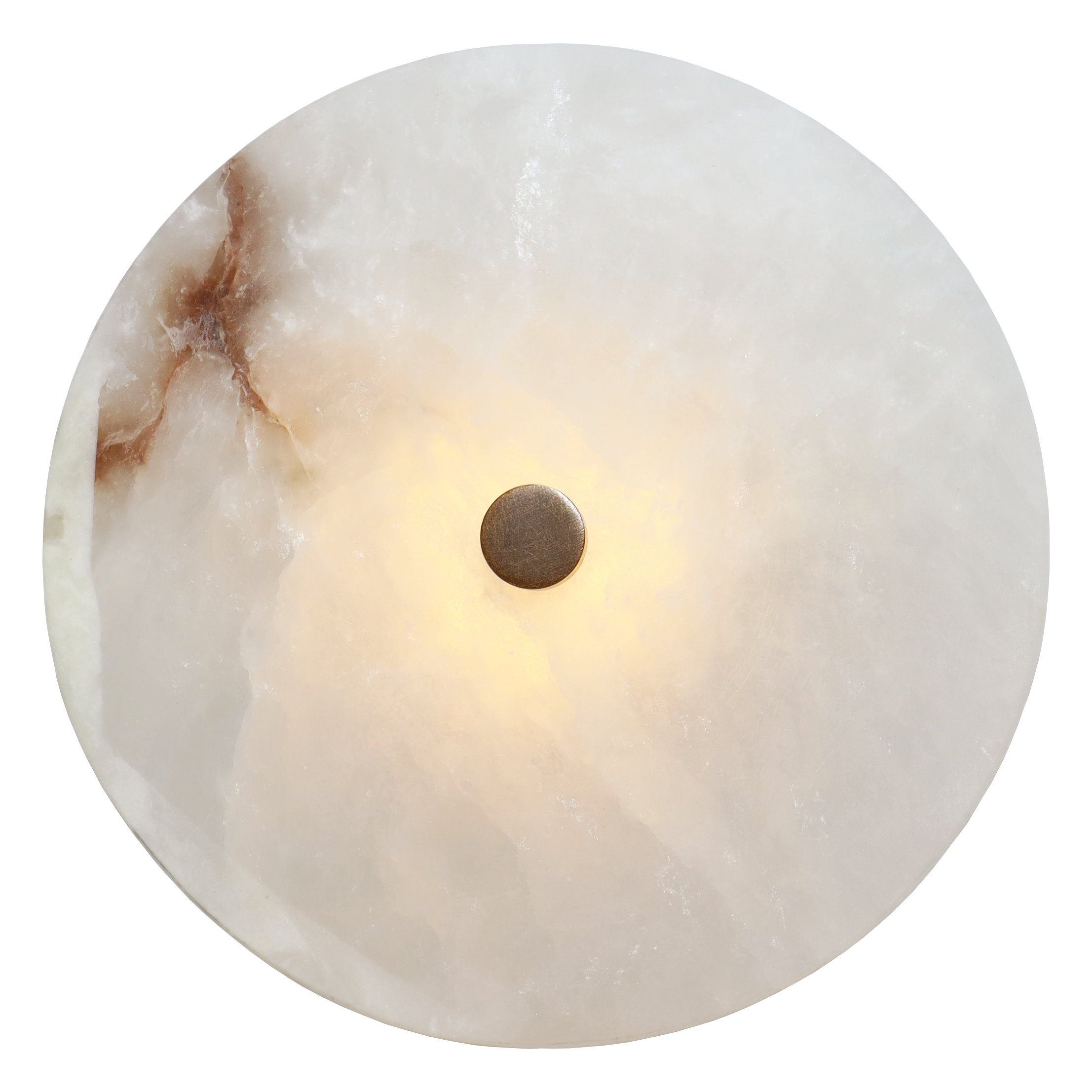

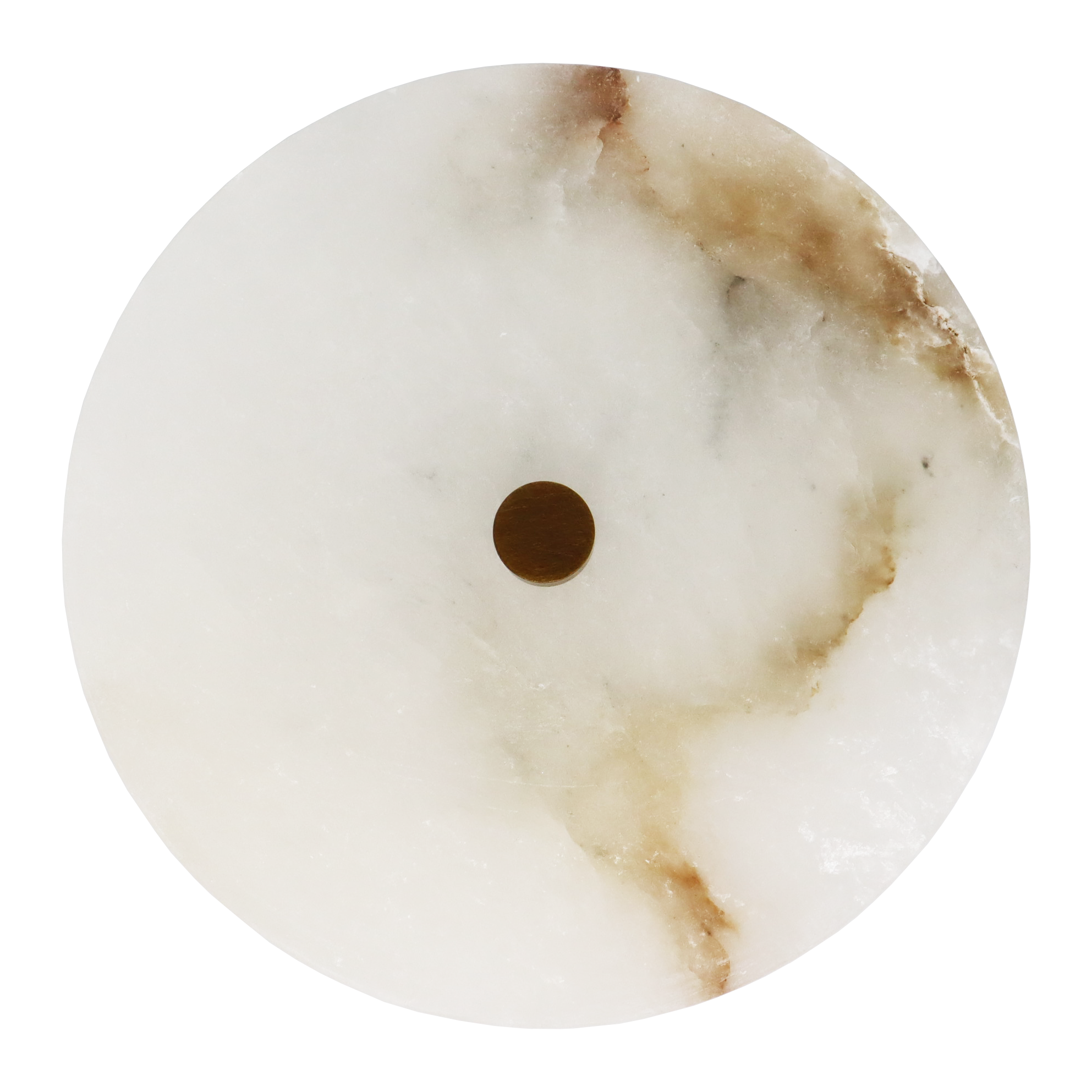

Textured

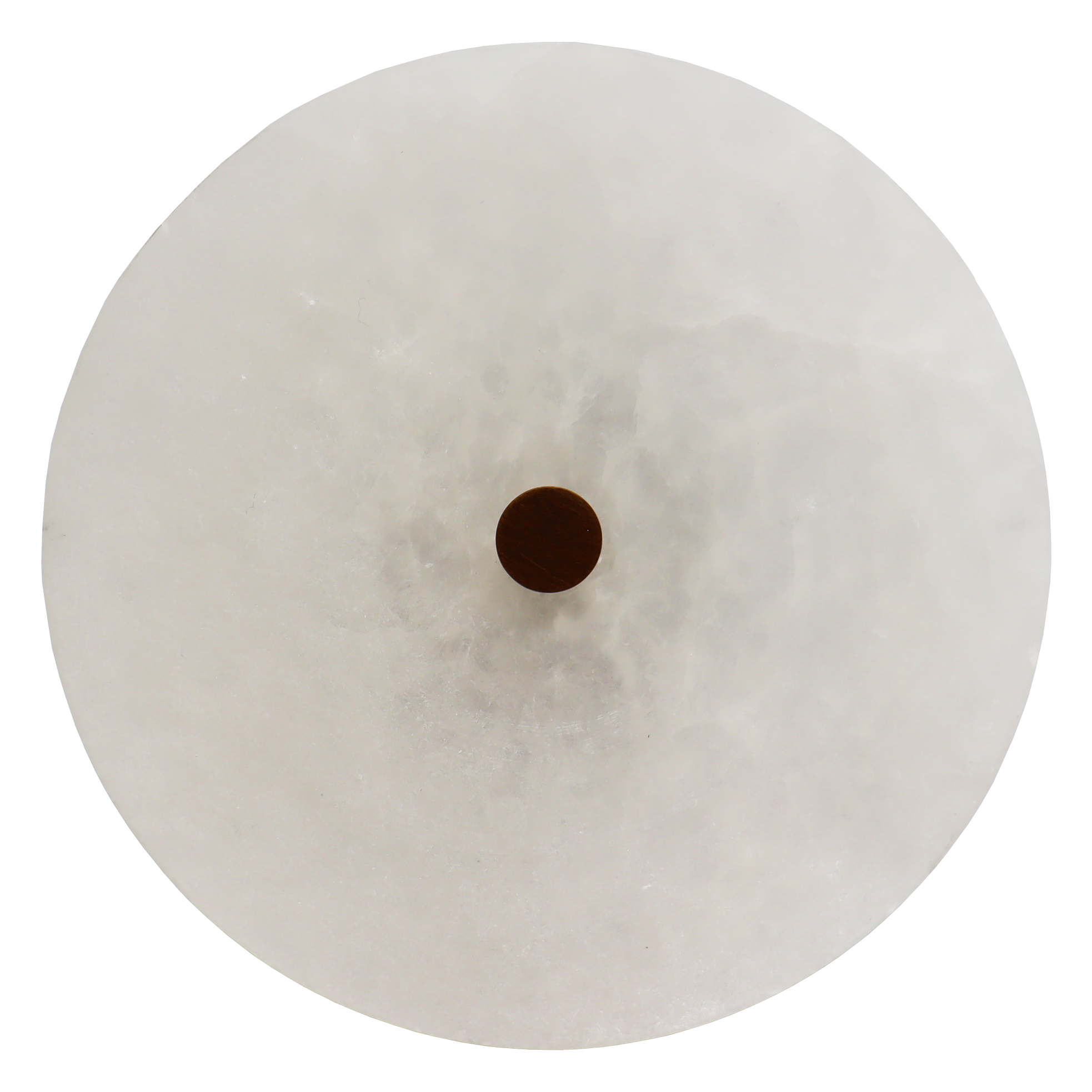

Untextured
Alabaster crystal comes in a range of natural textures/veins. Please note that each individual Athena wall light will have a unique appearance. If you would like to specify a textured or untextured appearance, please confirm with LA Lounge.
PRODUCT GALLERY
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V DALI Driver (Dimmable) - Remote Driver
• 75W/24V DALI Driver (Dimmable) - Remote Driver
• 150W/24V DALI Driver (Dimmable) - Remote Driver
• 240W/24V DALI Driver (Dimmable) - Remote Driver
DOWNLOADS
Photometric IES Files
WIRING INFORMATION

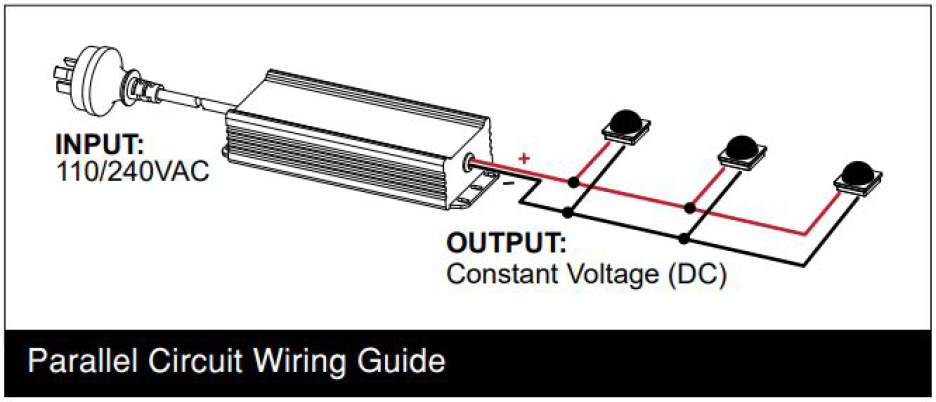

Constant voltage 24V drivers must be wired in parallel. See the below diagram on how to wire in parallel.
