Nebula

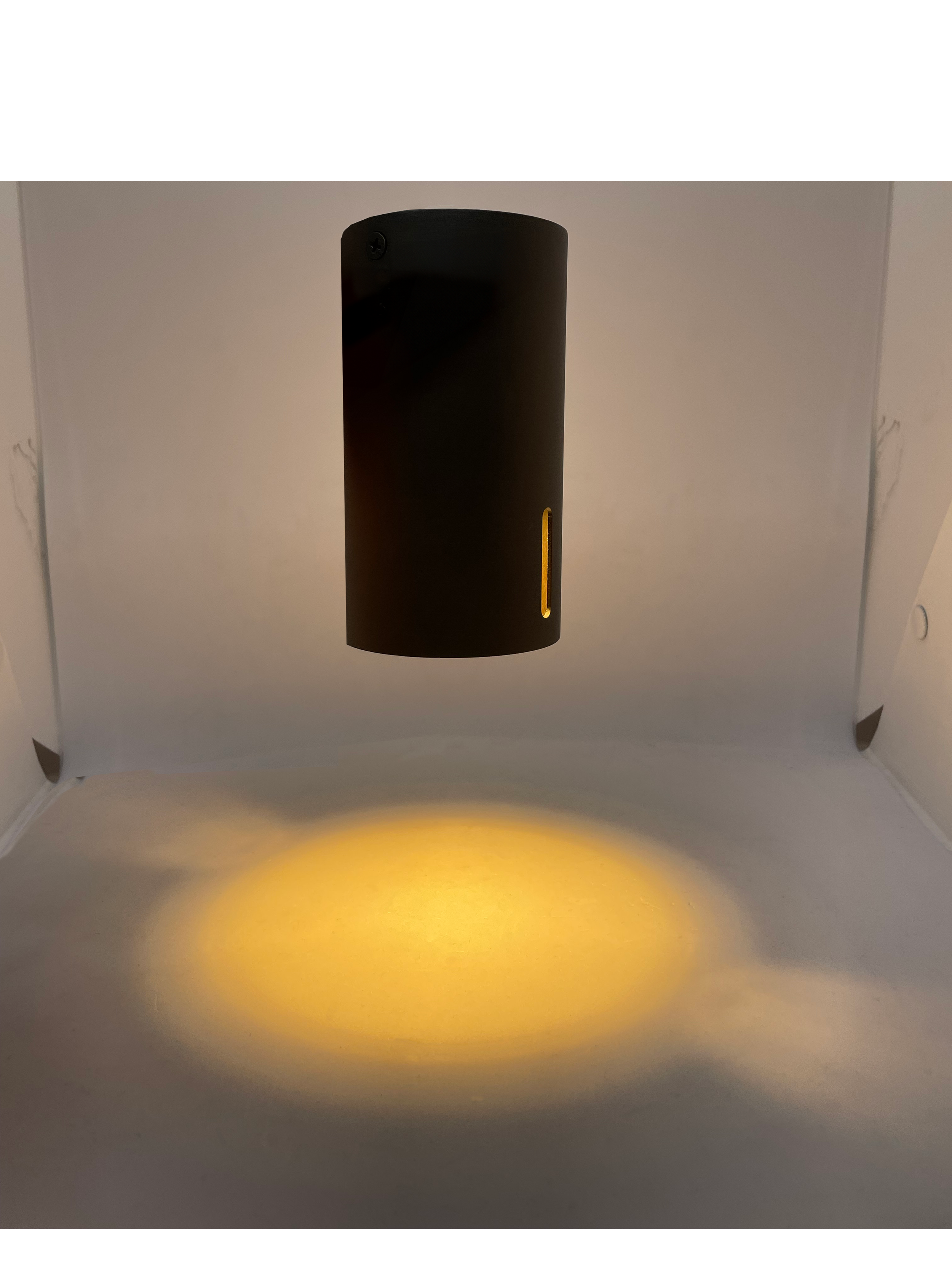

The Nebula is a surface mounted antique brass can light with downlighting and sideways and upward light pooling. This fitting has dual slits on either side, which creates a soft wash across the the ceiling. This unique fitting is suitable for interior and exterior applications to provide general and ambient lighting.

Our brass luminaires are suitable for all climates, including coastal environments. Brass exposed to the elements will oxidise over time to create a patina and a darker finish. This is a natural  process and does not compromise the structural integrity.

SPECIFICATIONS

Power: 8W LED, 4W or 12W available on request.

Lumen Output: 750lm

Colour Temperature: 3000K

Cut Out: Surface Mounted

Depth: 130mm

Adjustability: Fixed

CRI: 90

IP Rated: 65

Wiring Info: Low voltage to fitting, driver remote. Wire in parallel. If 240V, fitting must be earthed.

Input: 24V, 240V

Beam Angle: 35°

Dimming: DALI, Phase, CCT Tuneable White

CCT Tuneable White: 2500K-5000K

Warranty: 3 years.


FINISH OPTIONS

Antique Brass



PRODUCT GALLERY

DOWNLOADS

Photometric IES Files

WIRING INFORMATION

Constant voltage 24V drivers must be wired in parallel. See the below diagram on how to wire in parallel.

DRIVER OPTIONS

  • • 36W/12V Driver (Dimmable) - Remote Driver

    • 75W/12V Driver (Dimmable) - Remote Driver

  • • 36W/12V Driver (Dimmable) - Remote Driver

    • 75W/12V Driver (Dimmable) - Remote Driver

  • • CCT Driver (Dimmable) - Remote Driver
