Jedha
LOW LEVEL LIGHT/WALL LIGHT | DARK RANGE

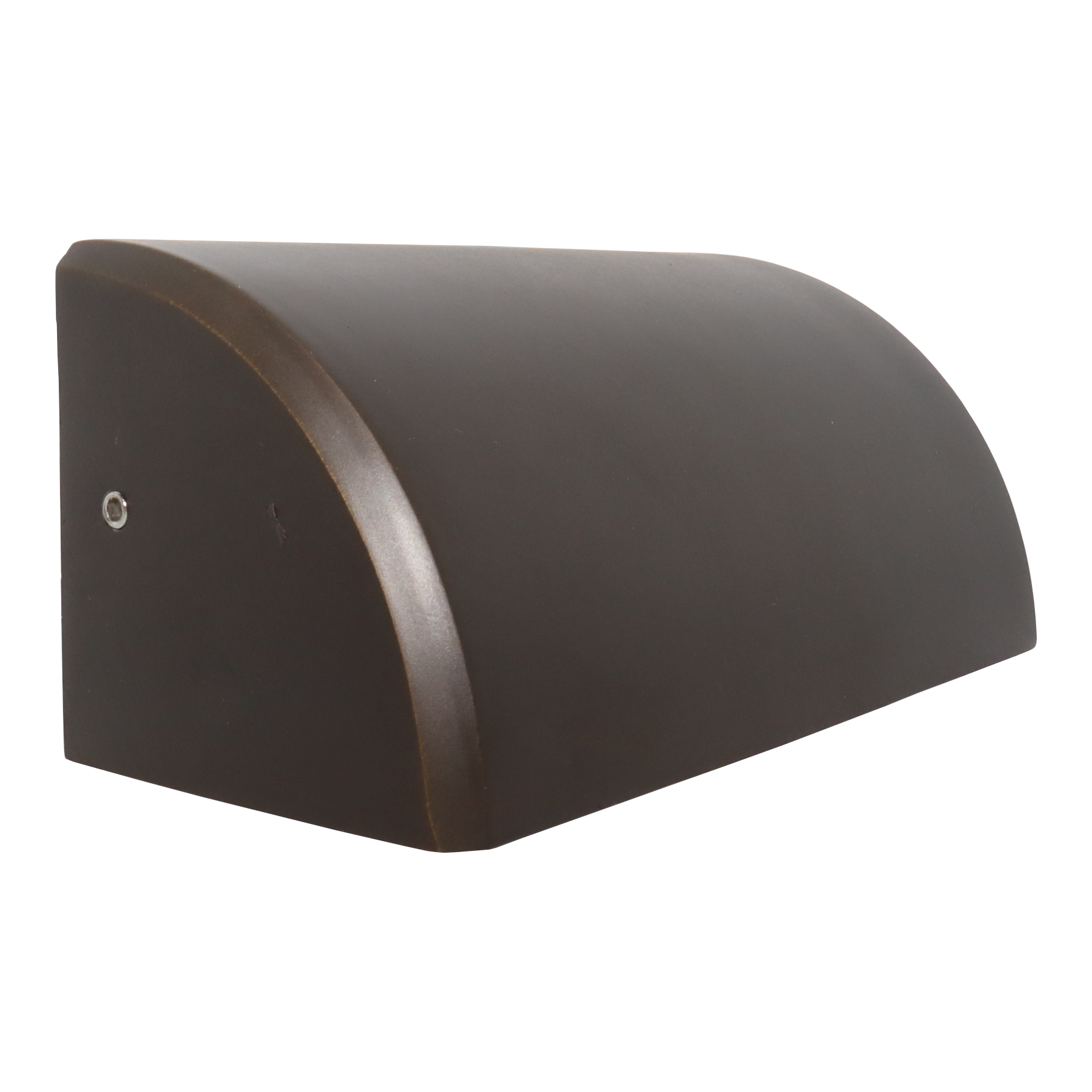

The Jedha is a solid brass low level light/wall light. This fitting is suitable for path lighting, wall washing and general exterior lighting.
Our brass luminaires are suitable for all climates, including coastal environments. Brass exposed to the elements will oxidise over time to create a patina and a darker finish. This is a natural process and does not compromise the structural integrity.
SPECIFICATIONS
Power: 4W LED
Lumen Output: 400lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 62mm
Adjustability: Fixed
CRI: 80-90
IP Rated: 65
Wiring Info: 240V to driver remote, low voltage to fitting. If more than one fitting, wire in parallel.
Input: 12V
Beam Angle: 120°
Dimmable: No
Warranty: 7 year ‘structural’ warranty.
FINISH OPTIONS
Antique Brass
PRODUCT GALLERY
DOWNLOADS
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
• 150W/12V Driver (Dimmable) - Remote Driver
• 240W/12V Driver (Dimmable) - Remote Driver
WIRING INFORMATION
Constant Voltage 12V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
Electricians must use silicon-based heat shrink to secure the back of the fitting, ensuring there is no water leakage and allowing for proper drainage during careful installation to prevent water damage.
Failure to adhere to these guidelines will result in voiding the warranty.
DRIVER OPTIONS
