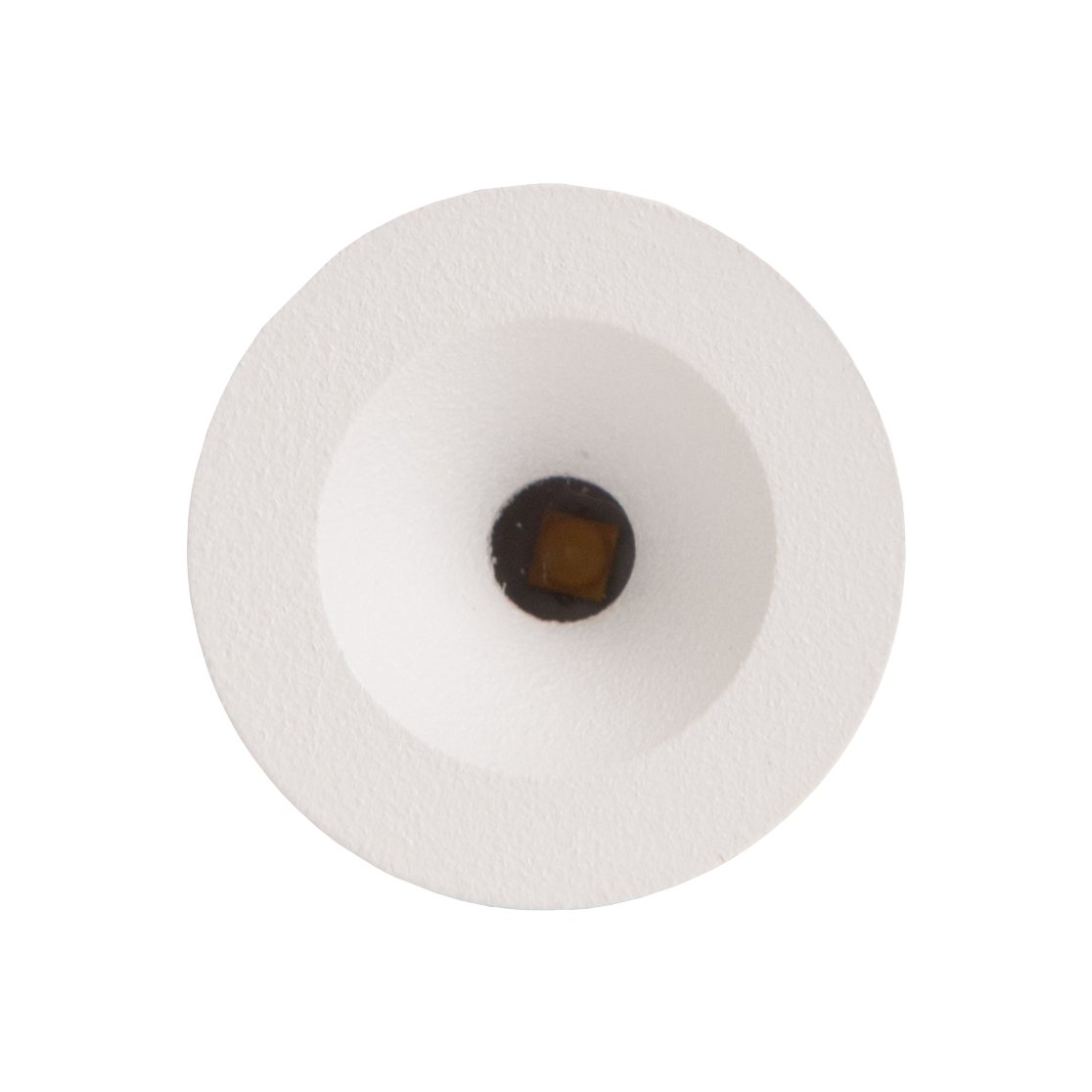

Button
The Button is a recessed pin light, suitable for installation in joinery units, for path lighting and to highlight a range of architectural and joinery features.
SPECIFICATIONS
Power: 1W Built-in-LED
Lumen Output: 60lm
Colour Temperature: 3000K
Cut Out: Ø19mm
Depth: 34mm, allow 10mm more.
Adjustability: Fixed
CRI: 90
IP Rated: 65
Wiring Info: 240V to driver, low voltage to fitting. If more than one fitting, wire in series.
Input: 350mA
Beam Angle: 30°
Dimming: DALI, requires more than two fittings.
Warranty: 3 years
FINISH OPTIONS
White
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant current 350mA drivers must be wired in series. See the below diagram on how to wire in series. Drivers are recommended to be set at 300mA with a maximum of 5 fittings on one driver.
Electricians must use silicon-based heat shrink to secure the back of the fitting, ensuring there is no water leakage and allowing for proper drainage during careful installation to prevent water damage.
Failure to adhere to these guidelines will result in voiding the warranty.
DRIVER OPTIONS
-
• 12W/350mA Driver (Dimmable) - Remote Driver
• 15W/350mA Driver (Dimmable) - Remote Driver
-
• 12W/350mA Driver (Dimmable) - Remote Driver
• 36W/350mA Driver (Dimmable) - Remote Driver
