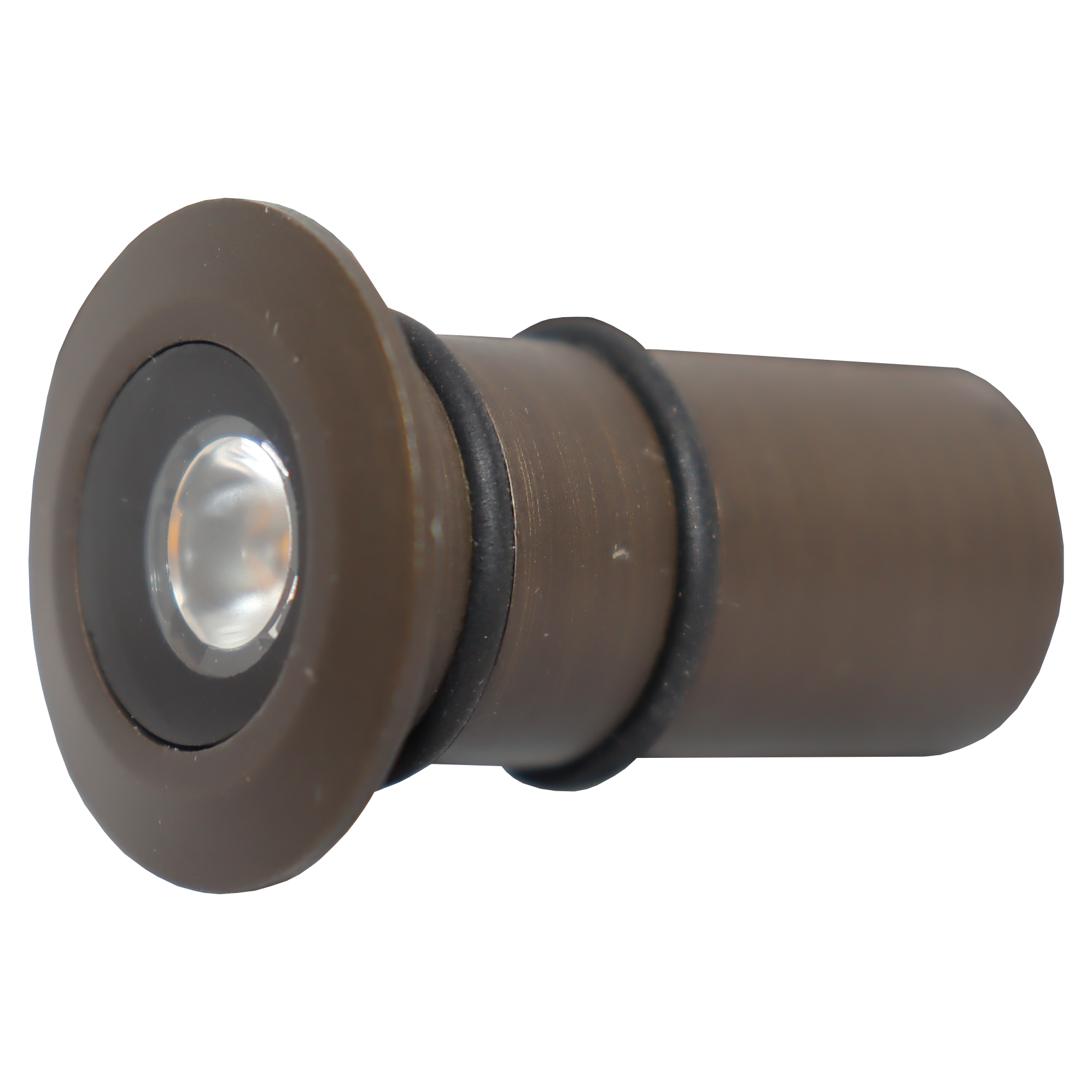

Stella Mini

The Stella Mini is an inground uplight and pin light with an antique brass finish in LA Lounge’s Dark Range of external fittings. This fitting is suitable for interior and exterior lighting to wash onto architectural features and path, wall and planter boxes.

Our brass luminaires are suitable for all climates, including coastal environments. Brass exposed to the elements will oxidise over time to create a patina and a darker finish. This is a natural process and does not compromise the structural integrity.

SPECIFICATIONS

Power: 1W LED

Lumen Output: 100lm

Colour Temperature: 3000K

Cut Out: Ø18mm

Depth: 36mm, allow for canister.

Adjustability: Fixed

CRI: 80

IP Rated: 67

Wiring Info: Low voltage to driver.

Input: 12V

Beam Angle: 25°

Dimming: No

Warranty: 7 year 'structural' warranty.

FINISH OPTIONS

Antique Brass

DOWNLOADS

Specification Data Sheet

Photometric IES Files

PROJECT GALLERY

• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
• 150W/12V Driver (Dimmable) - Remote Driver
• 240W/12V Driver (Dimmable) - Remote Driver

WIRING INFORMATION

Constant Voltage 12V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.

Electricians must use silicon-based heat shrink to secure the back of the fitting, ensuring there is no water leakage and allowing for proper drainage during careful installation to prevent water damage.

Failure to adhere to these guidelines will result in voiding the warranty.
