Hush Mini Round
INSET PLASTER LOW LEVEL LIGHT

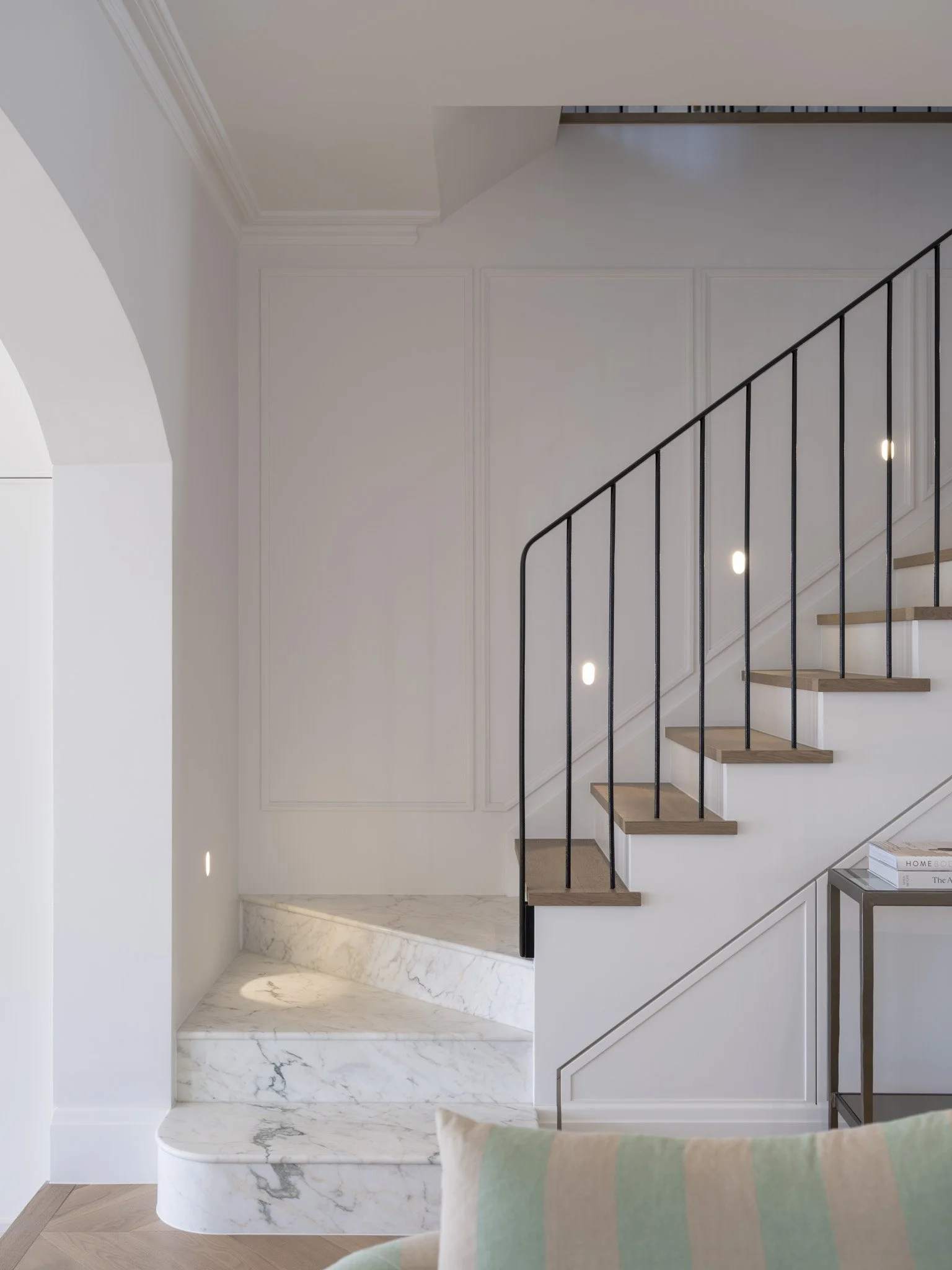

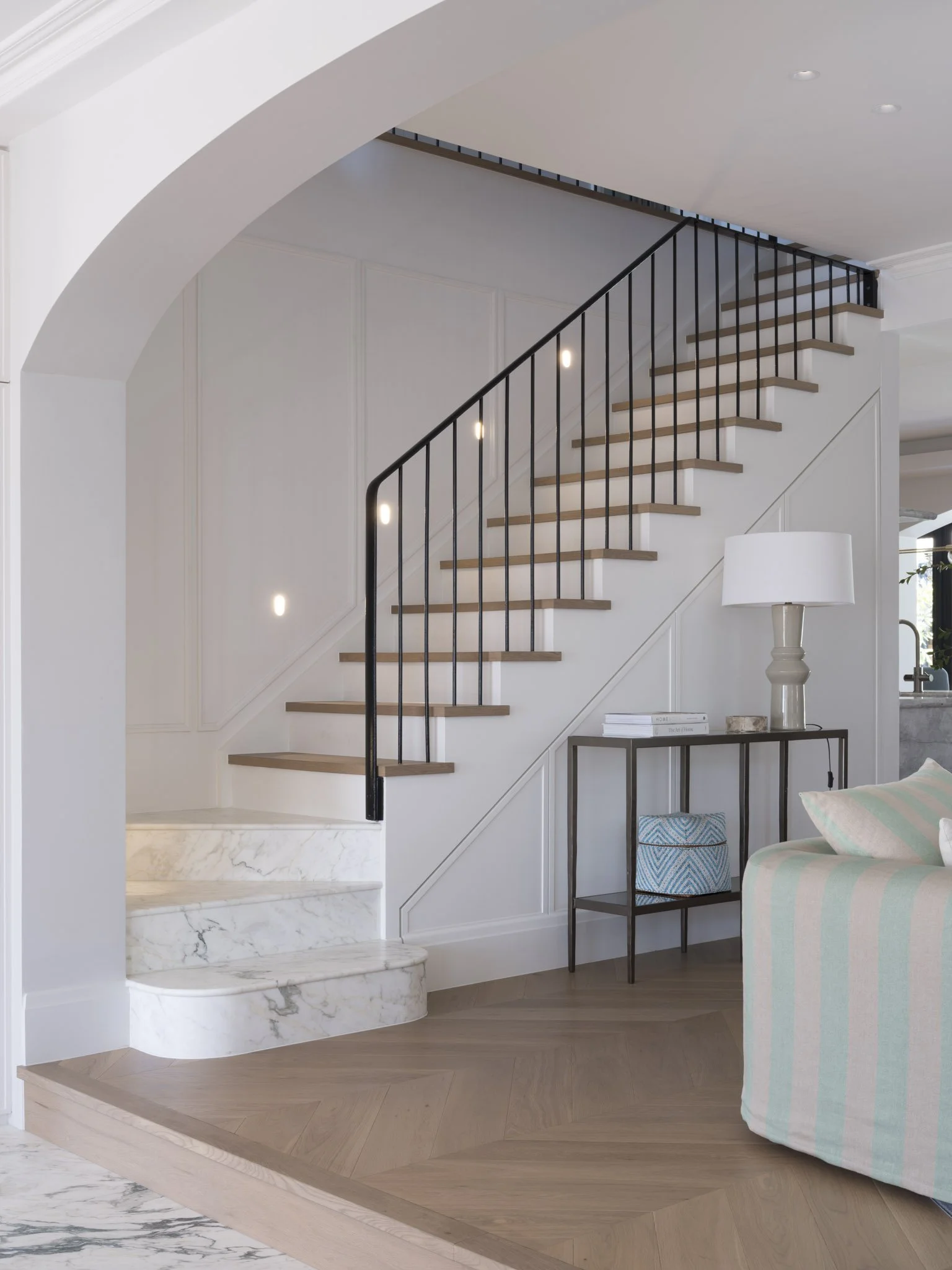

The Hush Mini Round is a handcrafted gypsum/plaster low level light which is inset to provide seamless and elegant path lighting. This fitting creates a candlelit effect when installed along hallways, stairways and next to doorways.
SPECIFICATIONS
Power: 3W Removable Lamp
Lumen Output: 280lm
Colour Temperature: 3000K or CCT (2700K-6500K) Available
Cut Out: 141mm x 71mm
Depth: 50mm
Adjustability: Fixed, asymmetrical.
CRI: 80
IP Rated: 20
Wiring Info: 240V or DALI to driver remote, low voltage to fitting. If more than one fitting, wire in parallel. (CCT requires a remote driver and a 3-Core cable from each driver to a remote location)
Input: 24V
Beam Angle: Asymmetrical 30°
Dimming: DALI, Phase.
Warranty: 3 years
FINISH OPTIONS
Plaster/Gypsum
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
INSTALLATION INSTRUCTIONS
-
Cut the paper tape into small pieces to cover the circular shape.
Create hole markings on the side aluminium clips to secure the fitting in the desired positions.
Apply plaster over the raised set-bead. Then, use a damp cloth to smooth down the edges for subsequent coats.
See the download section for installation videos
-
We would suggest the below two methods.
Attach the fitting to a piece of timber to screw it in, with this you can adjust it to suit the location/positioning. Laser the wall/position. Finish with rendering the fitting and wall.
Use cement foam as an alternative to the timber, hold it till it dries and takes the place of shape, same as the above this can then be adjusted to suit the positioning of the fitting. Finish off with rendering
See the download section for bracket photos.
CONTROL GEAR OPTIONS
-
36W/24V Driver: Dimmable & remote driver.
75W/24V Driver: Dimmable & remote driver.
-
36W/24V DALI Driver: Dimmable & remote driver.
75W/24V DALI Driver: Dimmable & remote driver.
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
