Veil

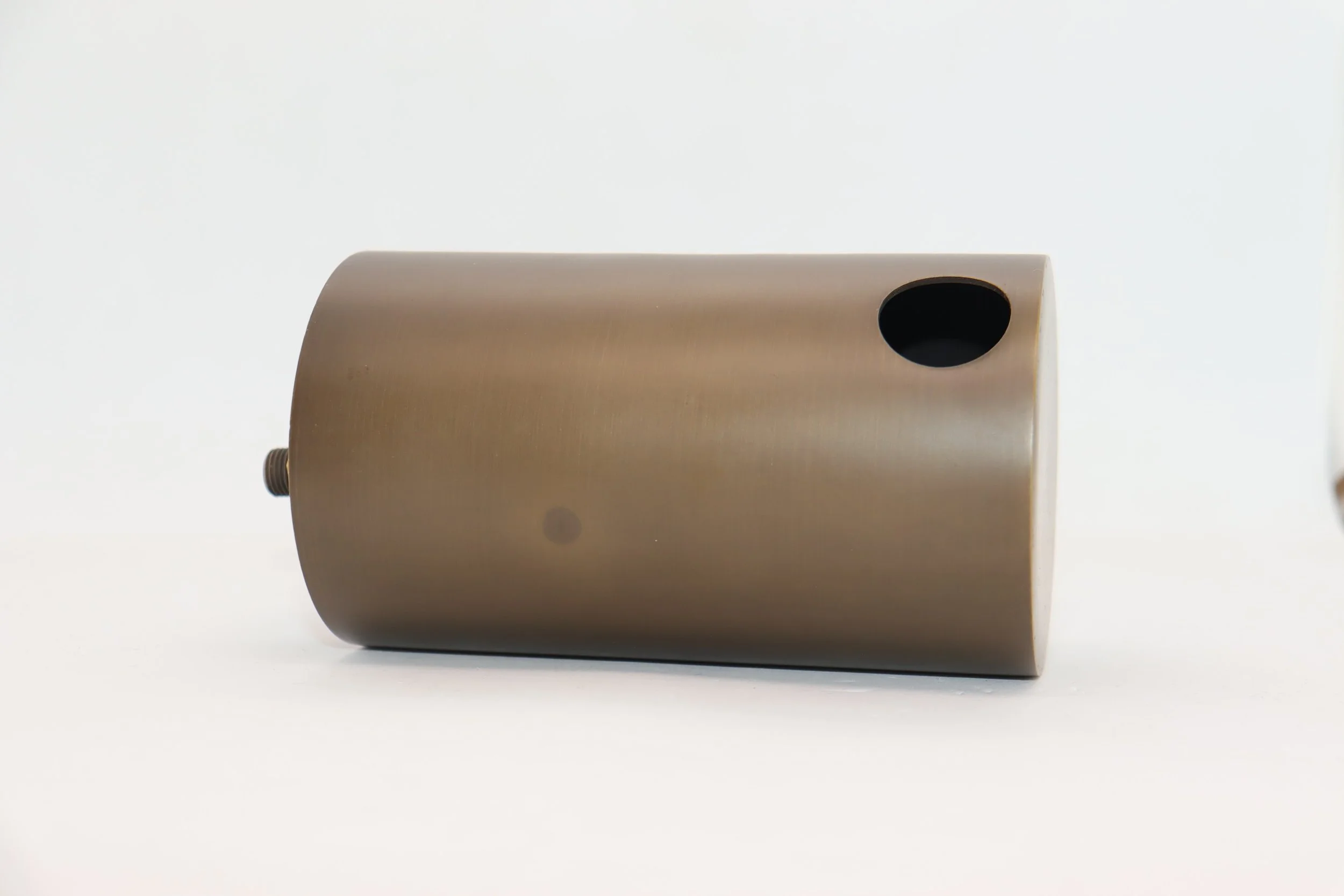

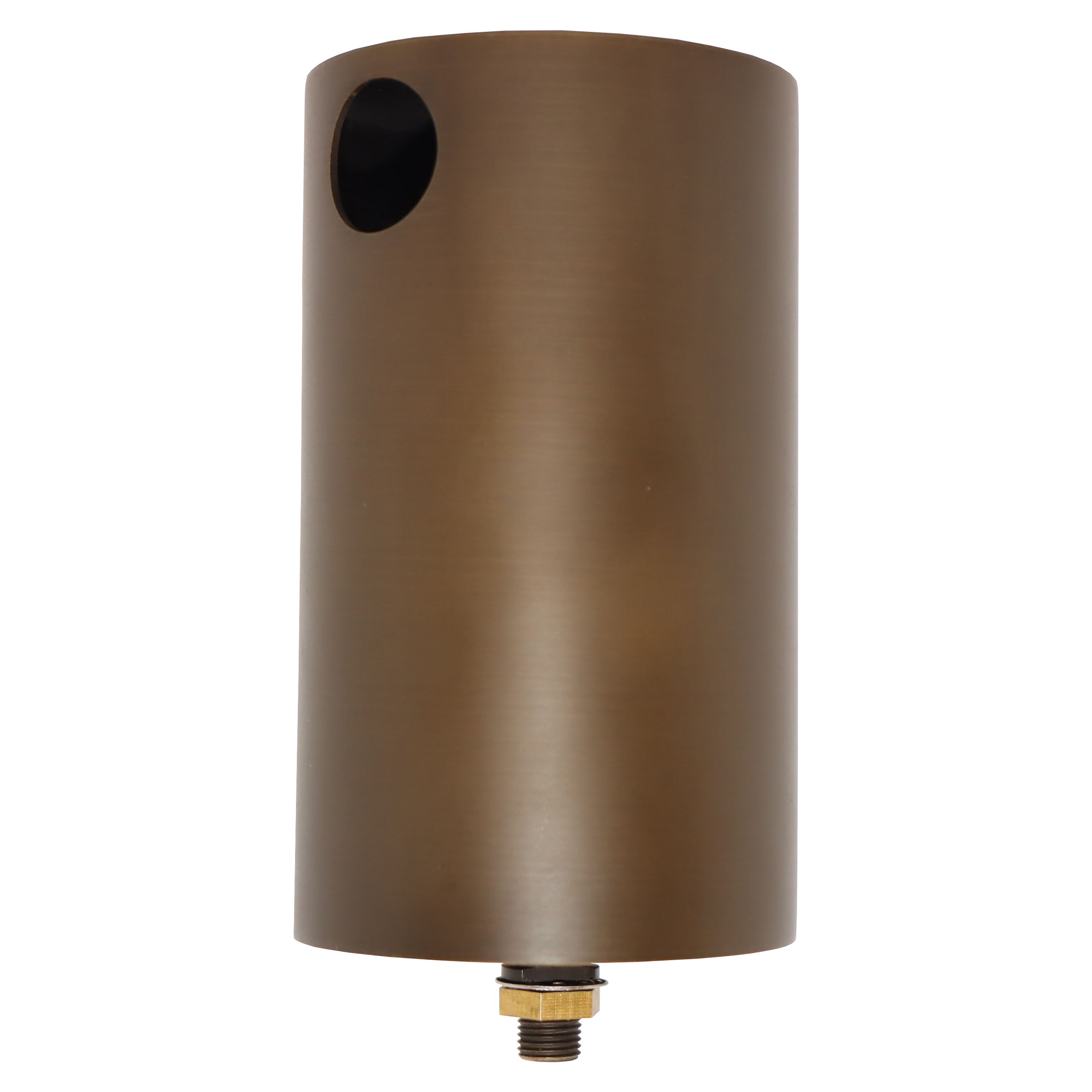

The Veil is a solid antique brass, LA Lounge designed, flush set-in concrete can light, which is multi-functional as a downlight or a spotlight. This fitting is installed during concrete pouring, creating a seamless look in a finished, exposed concrete ceiling.
Our brass luminaires are suitable for all climates, including coastal environments. Brass exposed to the elements will oxidise over time to create a patina and a darker finish. This is a natural process and does not compromise the structural integrity.
SPECIFICATIONS
Power: 8W LED 24V, 6W MR16 12V on request.
Lumen Output: 750lm
Colour Temperature: 3000K
Cut Out: Ø75
Depth: 130mm, allow for 10mm more in ceiling.
Adjustability: Fixed (downlight), adjustable (spotlight).
CRI: 90+
IP Rated: 54
Wiring Info: Low voltage to fitting, driver remote. Wire in parallel.
CCT Tunable White: 2500K-5000K
CCT Wiring: Requires 3-core cables: warm white, cool white and a positive cable.
Input: 24V, 12V on request.
Beam Angle: 30° or 60°
Dimming: DALI, phase or CCT tunable white.
Warranty: 7 year 'structural' warranty.
FINISH OPTIONS
Antique Brass
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant voltage 24V drivers must be wired in parallel. See the below diagram on how to wire in parallel.
DRIVER OPTIONS
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
-
• CCT Driver (Dimmable) - Remote Driver
