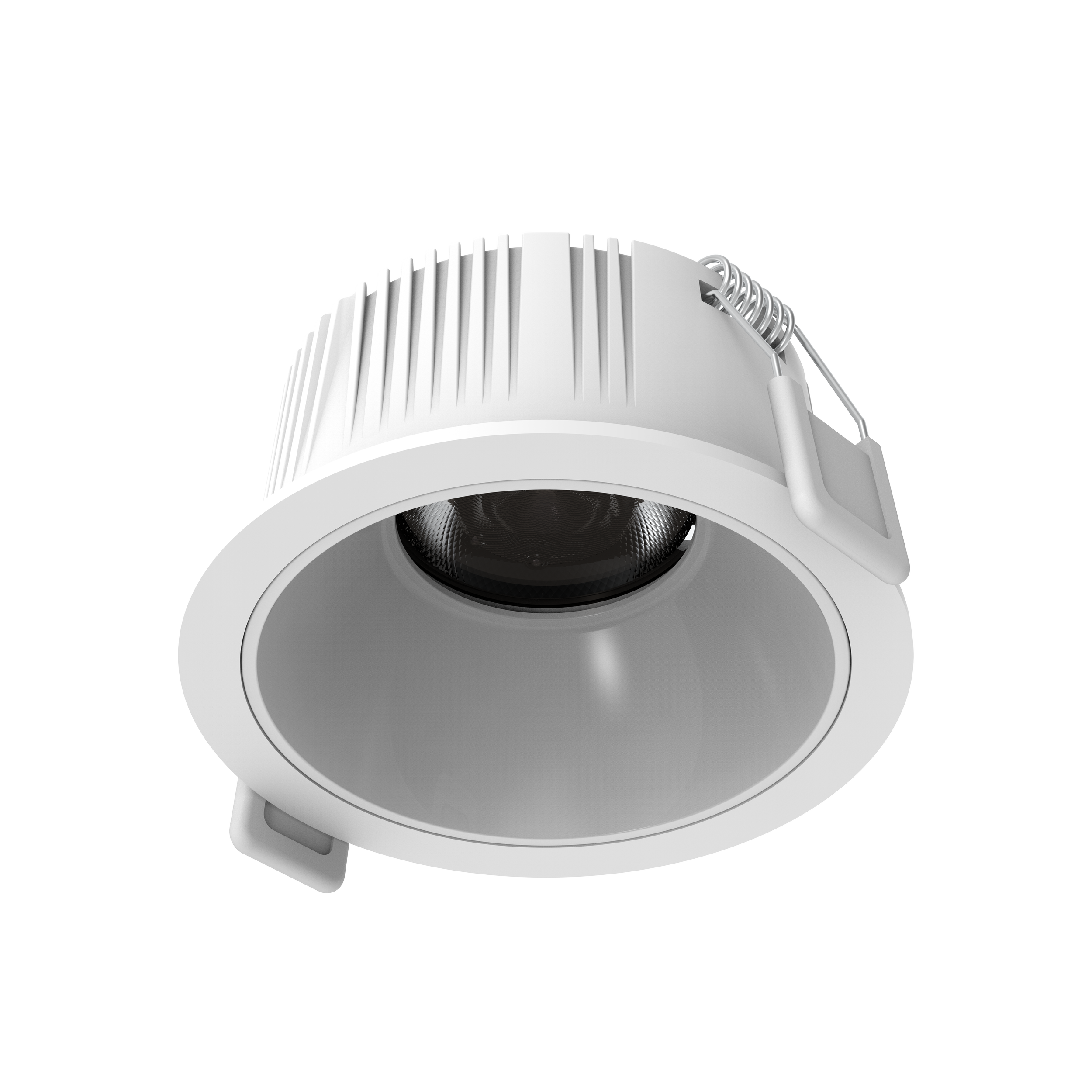

Willow 5W

The Willow 5W is a miniature and shallow downlight suitable for general and task lighting and is ideal for areas with ceiling restrictions. This fitting features an aluminium heatsink,  designed for superior heat dissipation, ensuring a long lifespan.

SPECIFICATIONS

Power: 5W COB-LED

Lumen Output: 300lm

Colour Temperature: 3000K

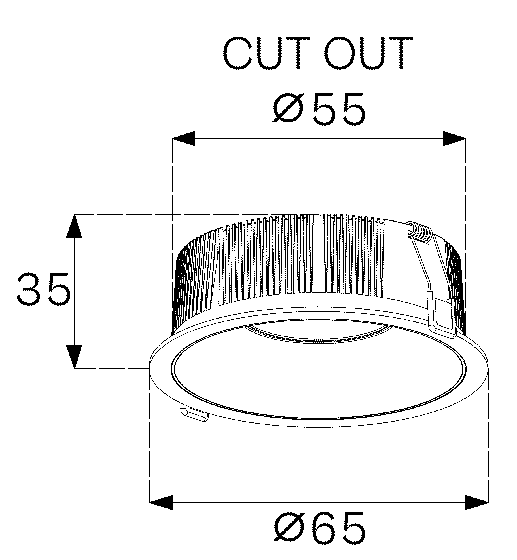

Cut Out: Ø55mm

Depth: 35mm, allow for 10mm more in ceiling.

Adjustability: Fixed

CRI: 95

IP Rated: 44

Wiring Info: 240V/DALI to driver local.

Input: 240V/DALI

Beam Angle: 60°

Dimming: DALI, Phase, CCT Tunable White

CCT Tunable White: 2500K-4500K

Warranty: 3 years

FINISH OPTIONS

White

PRODUCT GALLERY

CONTROL GEAR OPTIONS

  • • 5W 3000k Globe & Local Driver (Dimmable) - Cutout Ø55mm & 35mm Depth

    • 7W 3000k Globe & Local Driver (Dimmable) - Cutout Ø75mm & 45mm Depth

    • 9W 3000k Globe & Local Driver (Dimmable) - Cutout Ø80mm & 47mm Depth

    • 12W 3000k Globe & Local Driver (Dimmable) - Cutout Ø95mm & 50mm Depth

    • 15W 3000k Globe & Local Driver (Dimmable) - Cutout Ø120mm & 52mm Depth

    • 20W 3000k Globe & Local Driver (Dimmable) - Cutout Ø145mm & 60mm Depth

    • 35W 3000k Globe & Local Driver (Dimmable) - Cutout Ø160mm & 63mm Depth

    • 40W 3000k Globe & Local Driver (Dimmable) - Cutout Ø200mm & 75mm Depth

  • • 5W 3000k Globe & Local Driver (Dimmable) - Cutout Ø55mm & 35mm Depth

    • 7W 3000k Globe & Local Driver (Dimmable) - Cutout Ø75mm & 45mm Depth

    • 9W 3000k Globe & Local Driver (Dimmable) - Cutout Ø80mm & 47mm Depth

    • 12W 3000k Globe & Local Driver (Dimmable) - Cutout Ø95mm & 50mm Depth

    • 15W 3000k Globe & Local Driver (Dimmable) - Cutout Ø120mm & 52mm Depth

    • 20W 3000k Globe & Local Driver (Dimmable) - Cutout Ø145mm & 60mm Depth

    • 35W 3000k Globe & Local Driver (Dimmable) - Cutout Ø160mm & 63mm Depth

    • 40W 3000k Globe & Local Driver (Dimmable) - Cutout Ø200mm & 75mm Depth

  • • 5W 3000k Globe & Local Driver (Dimmable) - Cutout Ø55mm & 35mm Depth

    • 7W 3000k Globe & Local Driver (Dimmable) - Cutout Ø75mm & 45mm Depth

    • 9W 3000k Globe & Local Driver (Dimmable) - Cutout Ø80mm & 47mm Depth

    • 12W 3000k Globe & Local Driver (Dimmable) - Cutout Ø95mm & 50mm Depth

    • 15W 3000k Globe & Local Driver (Dimmable) - Cutout Ø120mm & 52mm Depth

    • 20W 3000k Globe & Local Driver (Dimmable) - Cutout Ø145mm & 60mm Depth

    • 35W 3000k Globe & Local Driver (Dimmable) - Cutout Ø160mm & 63mm Depth

    • 40W 3000k Globe & Local Driver (Dimmable) - Cutout Ø200mm & 75mm Depth
