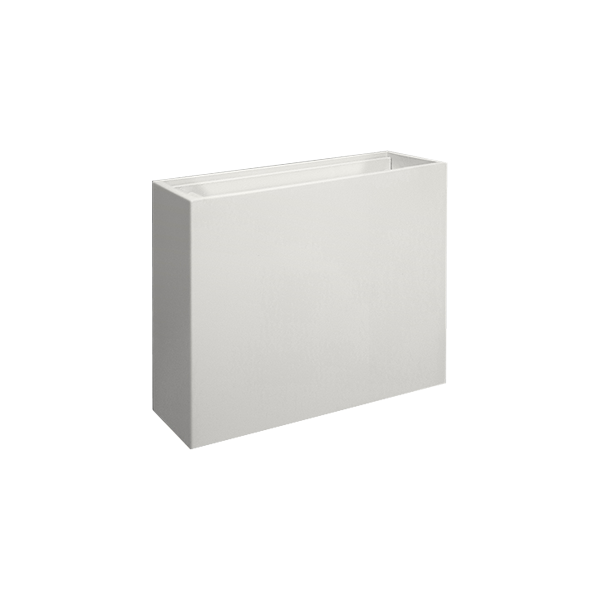

Zoom Mini
The Zoom Mini is an up/down wall light, ideal for general and ambient lighting. This fitting is suitable for interior and exterior applications.
SPECIFICATIONS
Power: 2x 3W Built-in LED
Lumen Output: 420lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 55mm
Adjustability: Fixed
CRI: 80-90
IP Rated: 54
Wiring Info: 240V to driver, requires a DALI relay in DALI. LOW VOLTAGE: Remote the driver and allow a L/V cable to fitting. With more than 1 fitting is on the same circuit, a separate L/V cable and driver is required to each fitting.
Input: 700mA
Beam Angle: N/A
Dimmable: No
Warranty: 3 years
FINISH OPTIONS

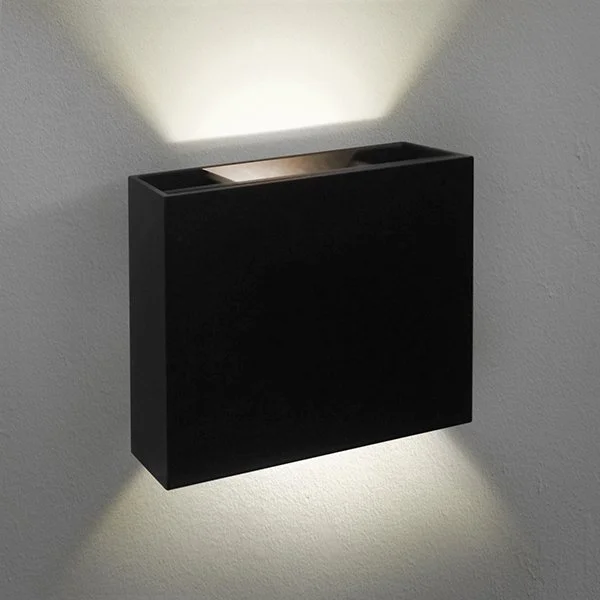

Matte Black

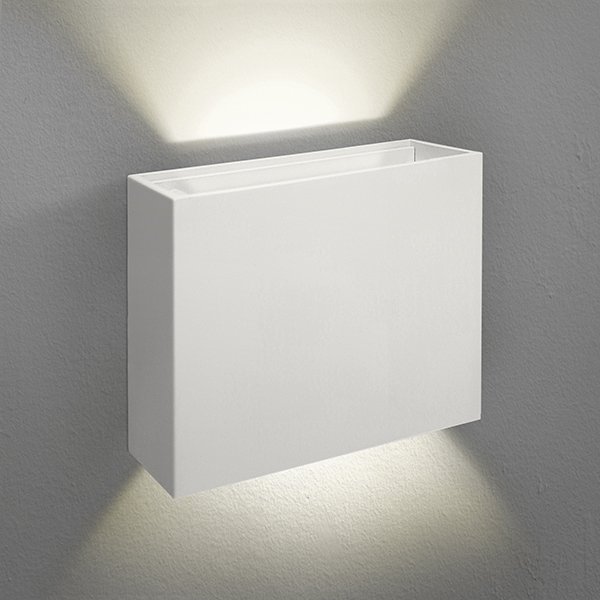

Matte White
PRODUCT GALLERY
CONTROL GEAR OPTIONS
-
• Integral Driver (Non-Dimmable)
-
• DALI Relay - One per switch (Non-Dimmable)
DOWNLOADS
WIRING INFORMATION
See the below diagram on how to wire DALI Relays.
