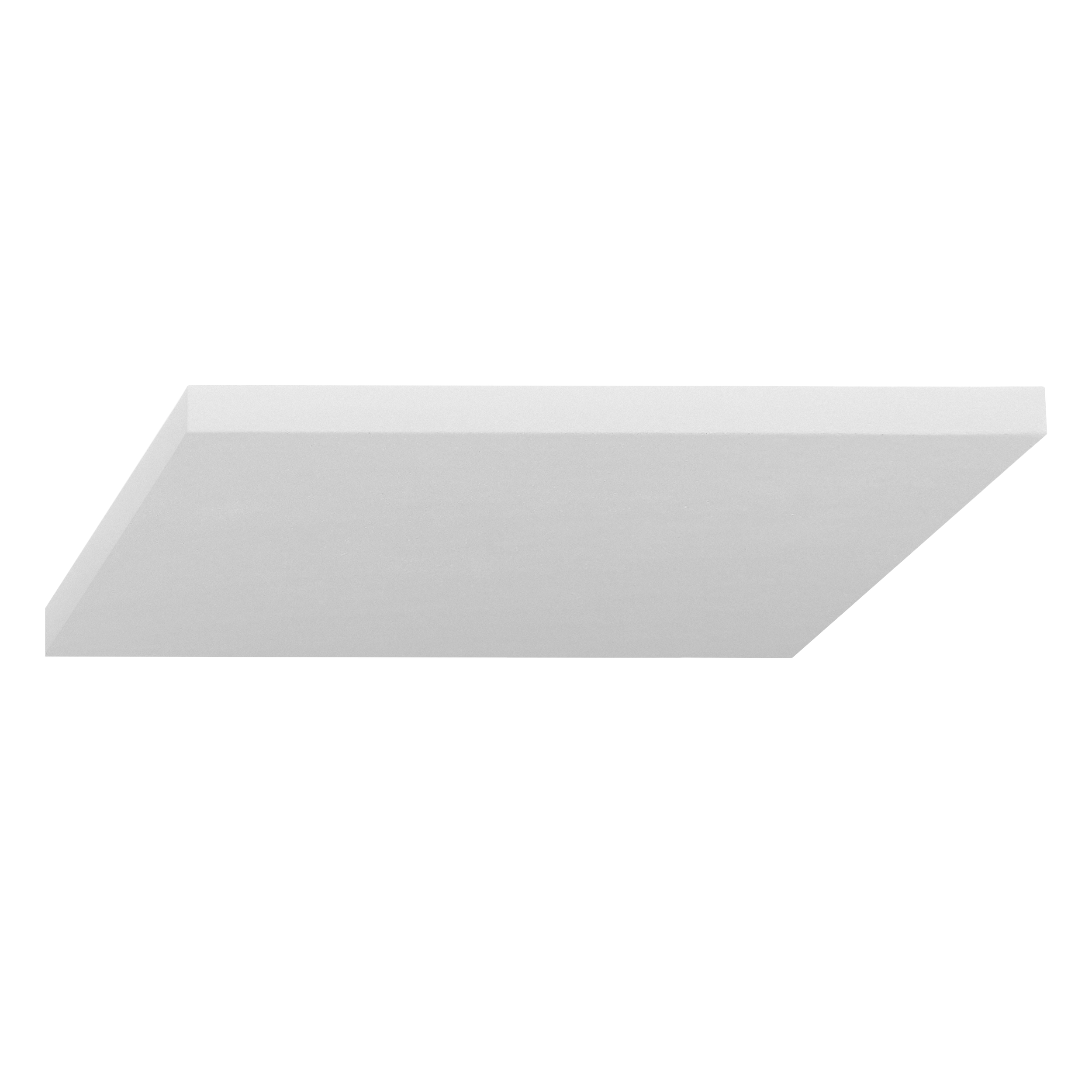

Minimal Single
The Minimal Single is a slim and minimalistic wall mounted uplight. This sleek fitting is perfect for wall mounting above beds or to wash up onto raked or high ceilings, to provide warm, indirect ambient and general lighting.
SPECIFICATIONS
Power: 10W Built-in-LED
Lumen Output: 950lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 120mm
Adjustability: Fixed
CRI: 90
IP Rated: 20
Wiring Info: 240V or DALI to driver remote. If more than one fitting, wire in parallel.
Input: 240V (DALI relay required in DALI) or 24V.
Beam Angle: 180°
Dimming: DALI, Phase
Warranty: 3 years.
FINISH OPTIONS
Matte White
PRODUCT GALLERY
DOWNLOADS
Specification Data Sheet
Photometric IES Files
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
DRIVER OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
