G05 Mini
The G05 Mini is a mini joinery LED profile which is suitable for installation in joinery such as stair handrails and shelving.
SPECIFICATIONS
Power: LED Strip 10W/m 5mm
Colour Temperature: 3000K

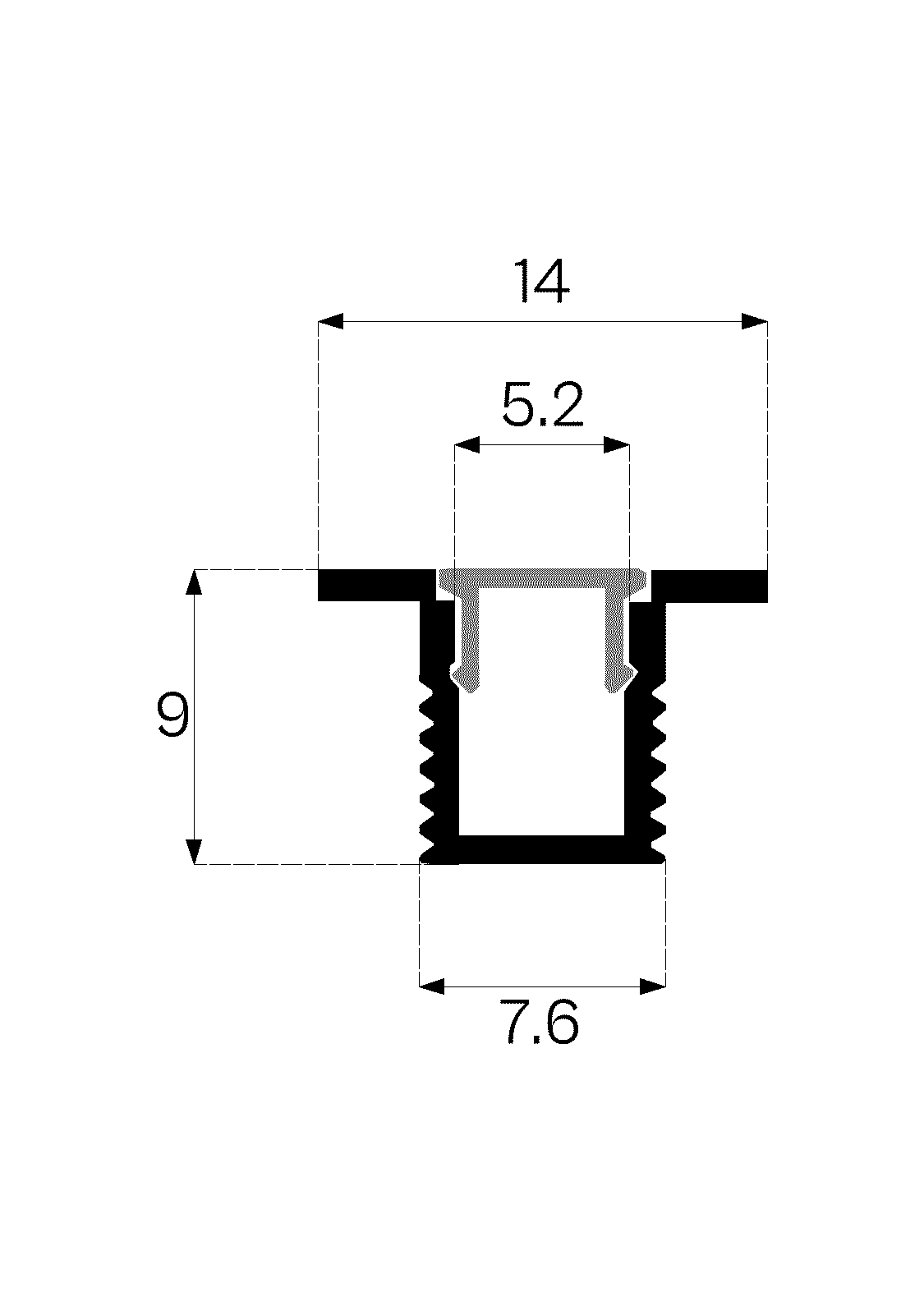

Cut Out: 9.6mm x 11mm
Depth: 9mm
Adjustability: Fixed
CRI: 80-90
IP Rated: 20
Wiring Info: 240V/ DALI to driver, low voltage, driver remote.
Input: 24V
Dimming: DALI, Phase.
Finishes: Aluminium or black, custom powder coat colours may be available on request. Prices may vary.
Warranty: 3 years.
FINISH OPTIONS

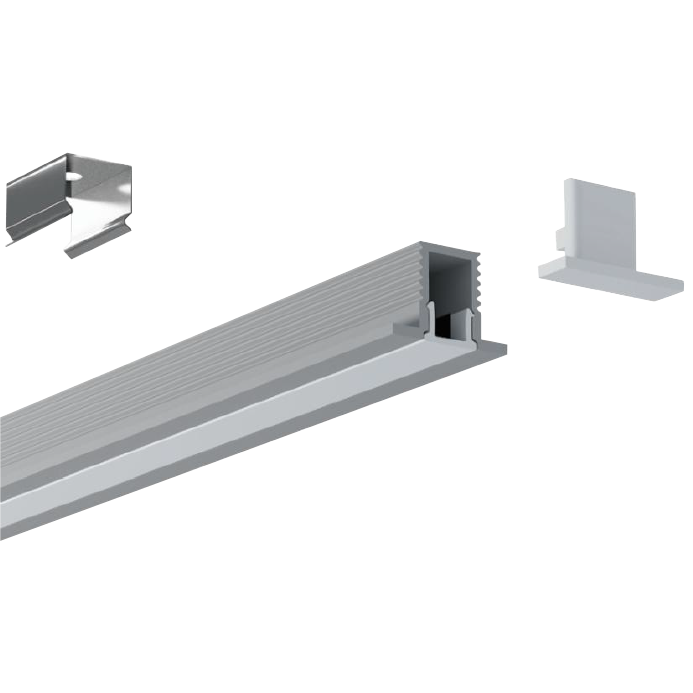

Aluminium

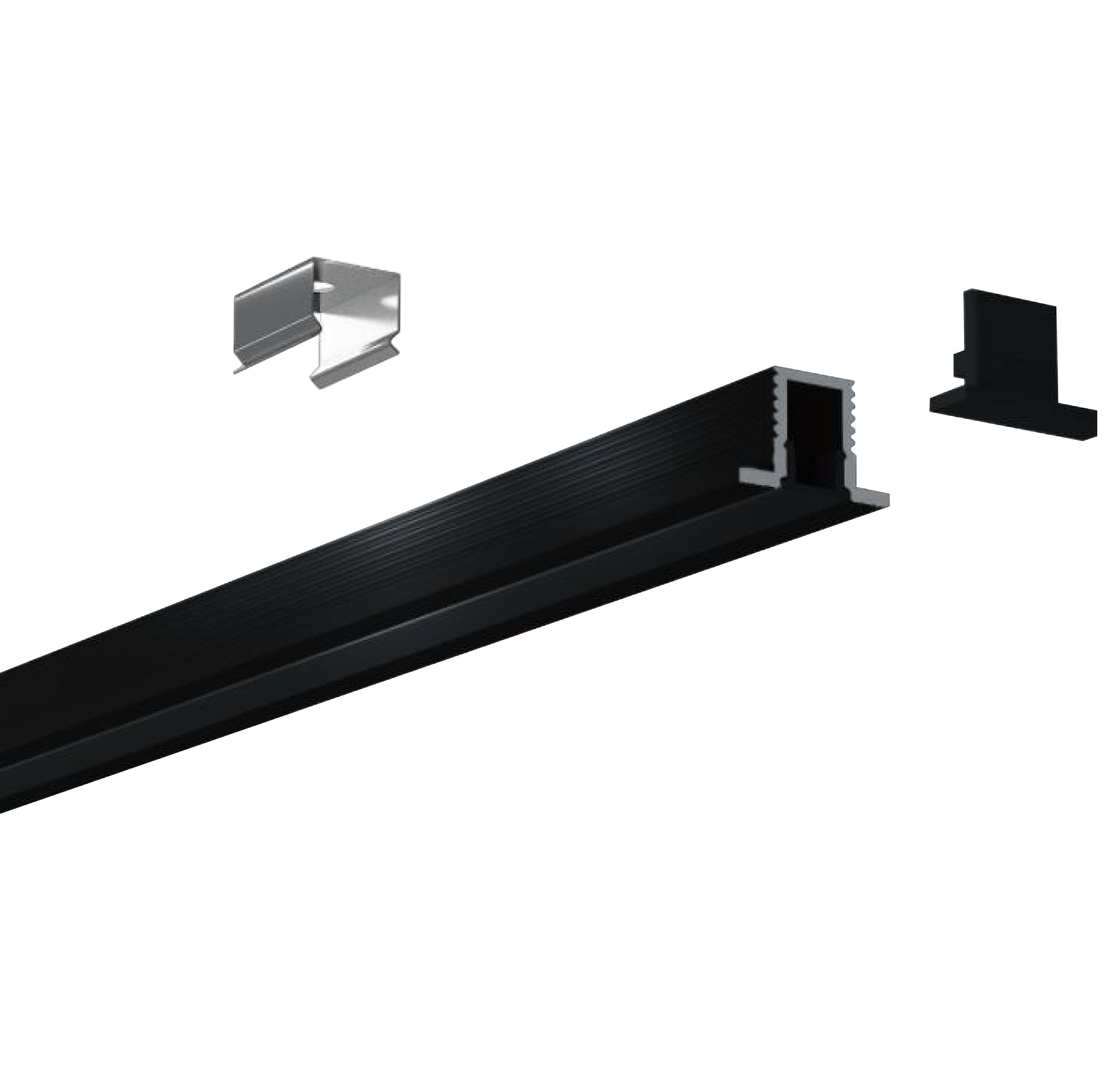

Black
LED STRIP OPTIONS
-
• 10W/m 5mm IP20 3000K
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
