G012

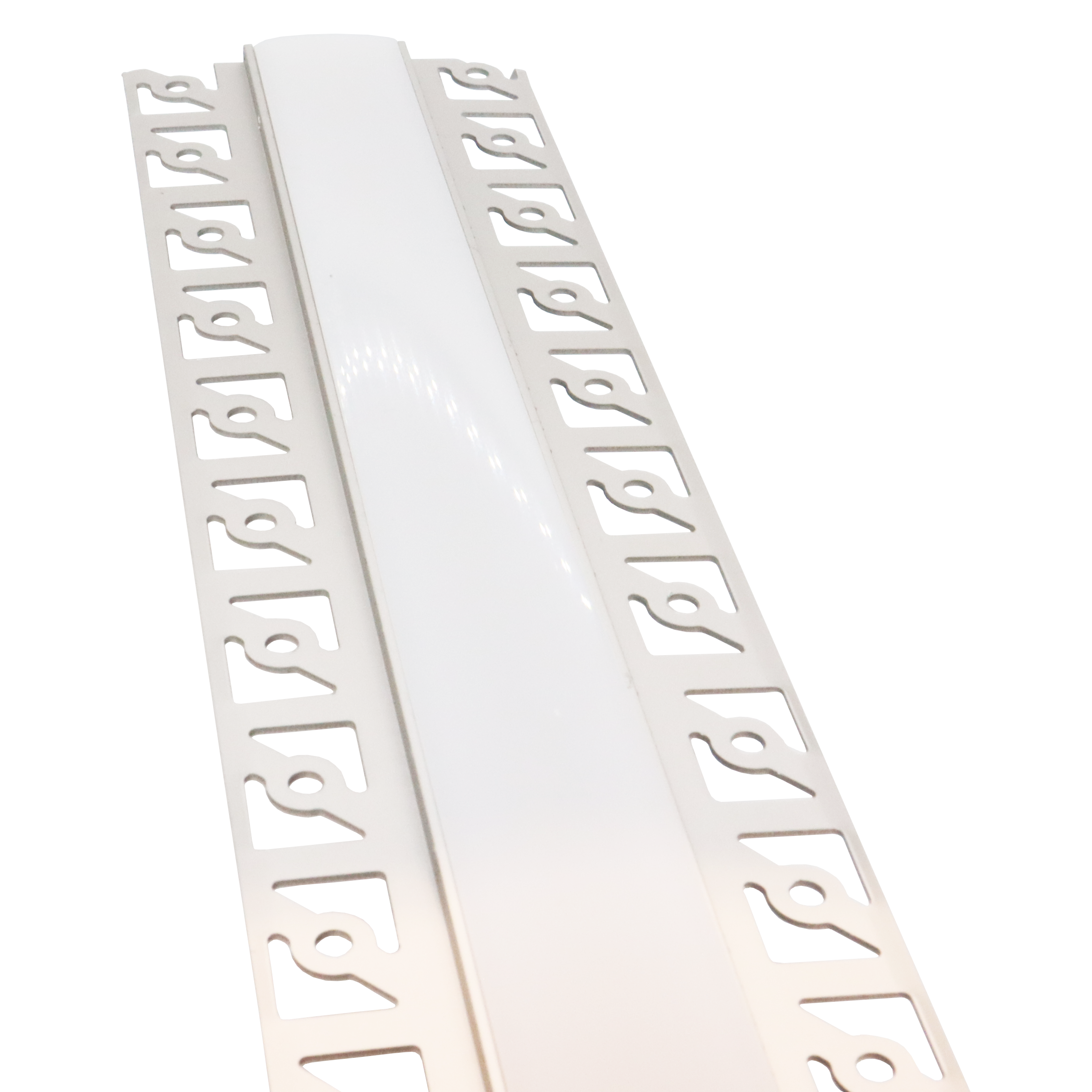

The G012 is an inset plaster LED profile, ideal for installation in plaster ceilings and walls as feature lighting.
APPLICATION: Ceilings, walls.
SPECIFICATIONS
Power: See spec sheet for LED strip power options.
Colour Temperature: 3000K
Cut Out: See line drawing for LED strip cut out.
Depth: 16mm
Adjustability: Fixed
CRI: 80-95
IP Rated: 20, 65 or 67
Wiring Info: 240V/DALI to driver, low voltage, driver remote.
Input: 24V
Dimming: DALI, Phase, CCT Tunable White CCT Strip
Wiring Info: Requires 3-core cables: warm white, cool white & positive cable.
CCT Tunable White: See spec sheet for LED strip CCT tunable white options.
Warranty: 3 years.
FINISH OPTIONS
Aluminium
LED STRIP OPTIONS
-
• 10W/m Continuous IP20 3000K Strip
• 10W/m Continuous IP65 3000K Strip
• 20W/m 3000K IP20 Strip
• 15W/m 3000K IP66 Strip
-
CCT TUNABLE WHITE: (Requires 3-core cables: warm white, cool white & positive cable).
• 14W/m Continuous 2700K-6500K IP20 Strip
• 14W/m Continuous 2700K-6500K IP67 Strip
• 22W/m Continuous 2500K-5000K IP20 Strip
• 22W/m Continuous 2500K-5000K IP66 Strip
RGB CCT: (Requires 6-core cables: red, green, blue, warm white, cool white & positive cable).
• 19.2W RGB CCT IP20 Strip
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
CCT TUNABLE WHITE:
• 150W/24V CCT DALI Driver and Controller (Dimmable) - Remote Driver
RGB CCT: (Confirm driver and/or controllers with LA Lounge).
• 150W/24V RGB CCT DALI Controller (Dimmable) - Remote Driver
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
