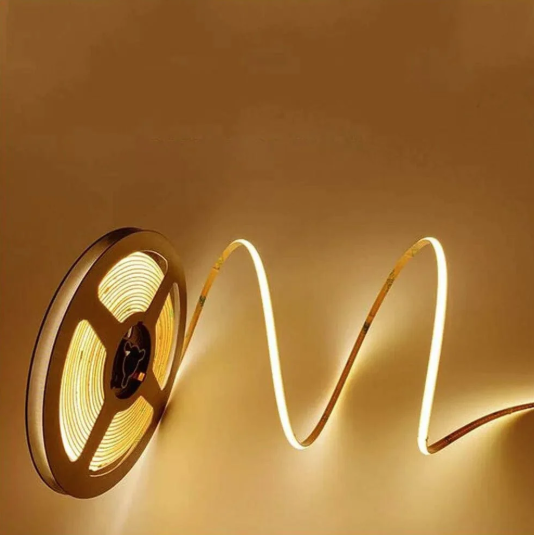

10W/m 5mm IP20 Mini LED Strip
The 10W/m 5mm IP20 continuous LED strip is a mini strip, available in 5m rolls. This LED strip is suitable for installation in a mini LED profile, such as the G013, and is ideal for installation in joinery with size limitations in interior applications.
SPECIFICATIONS
Power: 10W Continuous LED per metre
Lumen Output: 1000lm per metre
Colour Temperature: 3000K
Width: 5mm
Length: 5m roll per packet.
Adjustability: Fixed
CRI: 90
IP Rated: 20
Wiring Info: 240V or DALI to driver remote, low voltage to strip.
Input: 24V
Beam Angle: N/A
Dimming: DALI, Phase
Warranty: 3 years.
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
PRODUCT GALLERY
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
DOWNLOADS
Photometric IES Files
