Peak Pendant

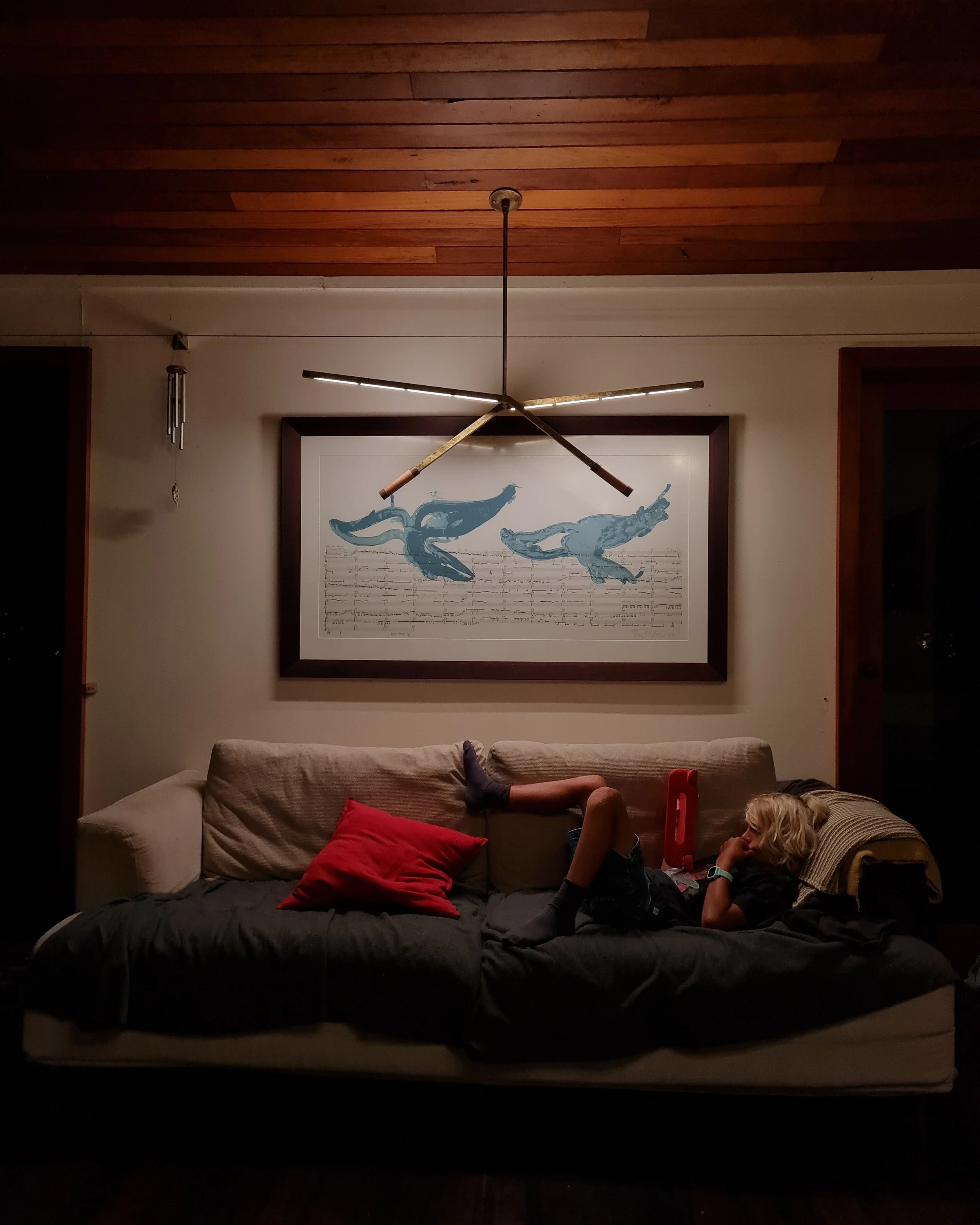

The Peak Pendant is a decorative linear pendant with custom metal or timber finishes, trim details and rod lengths. This pendant is ideal for installation above kitchen islands, dining tables and in living rooms.
Additionally, this pendant offers versatility with an optional up and down version, which creates a gentle uplighting onto the ceiling to accentuate architectural details and provide ambient lighting.
SPECIFICATIONS
Power: 10W LED or 20W LED.
Lumen Output: 900lm (10W), 1800lm (20W).
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: N/A
Adjustability: Fixed
CRI: 80-90
IP Rated: 20
Wiring Info: 240V to driver remote, low voltage to fitting.
Input: 24V
Beam Angle: N/A
Dimming: DALI, Phase, CCT Tunable White
CCT Tunable White: 2700K-6000K
Warranty: 3 years.
Drop Height: 1m drop height or custom.
FINISH OPTIONS
Please note that due to the raw and organic nature of our finishes, each fitting may exhibit slight variations from the below images.
METAL OPTIONS
CANOPY OPTIONS
Canopy for Two Middle Rods
Canopy for Two Rods

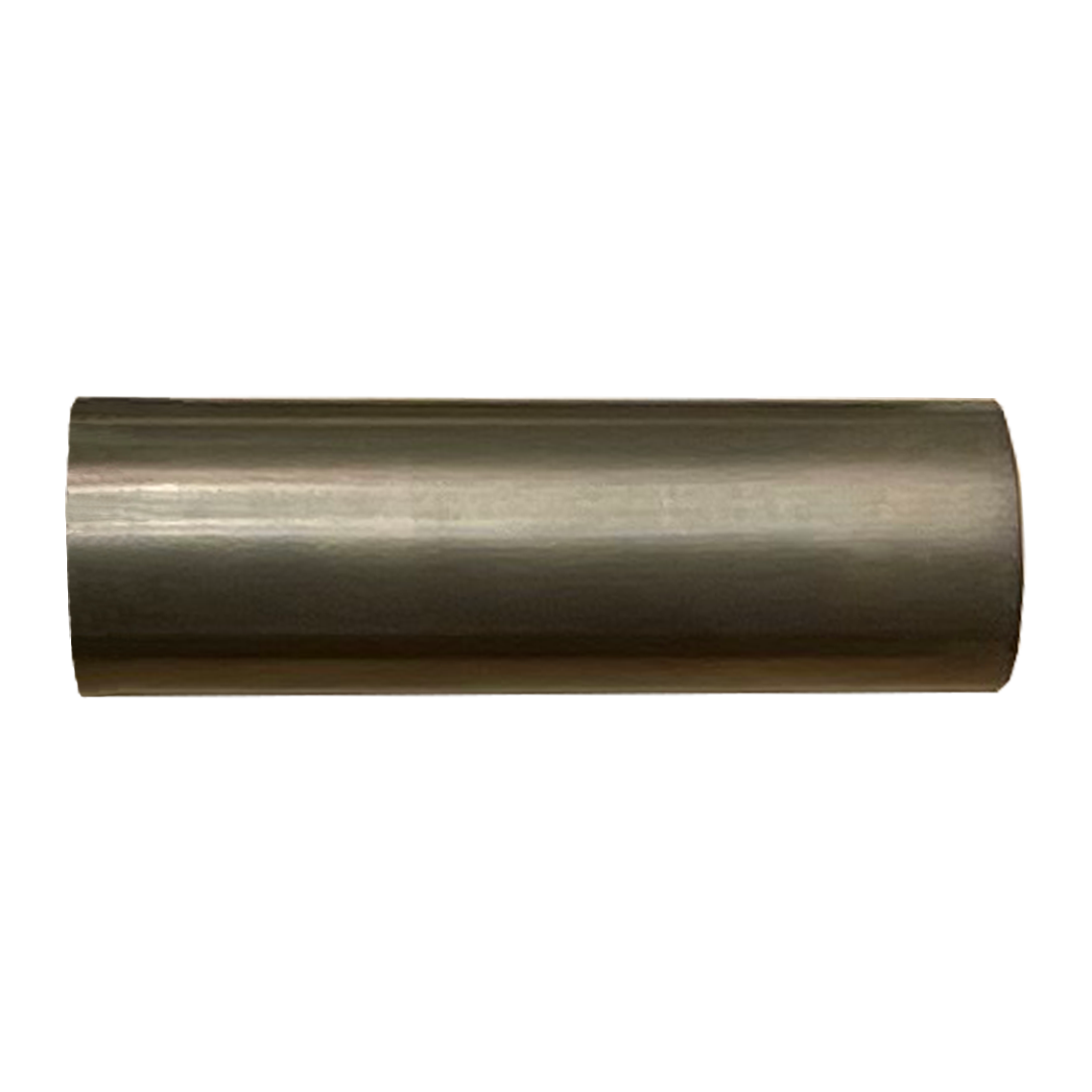

Brass Dark Bronze

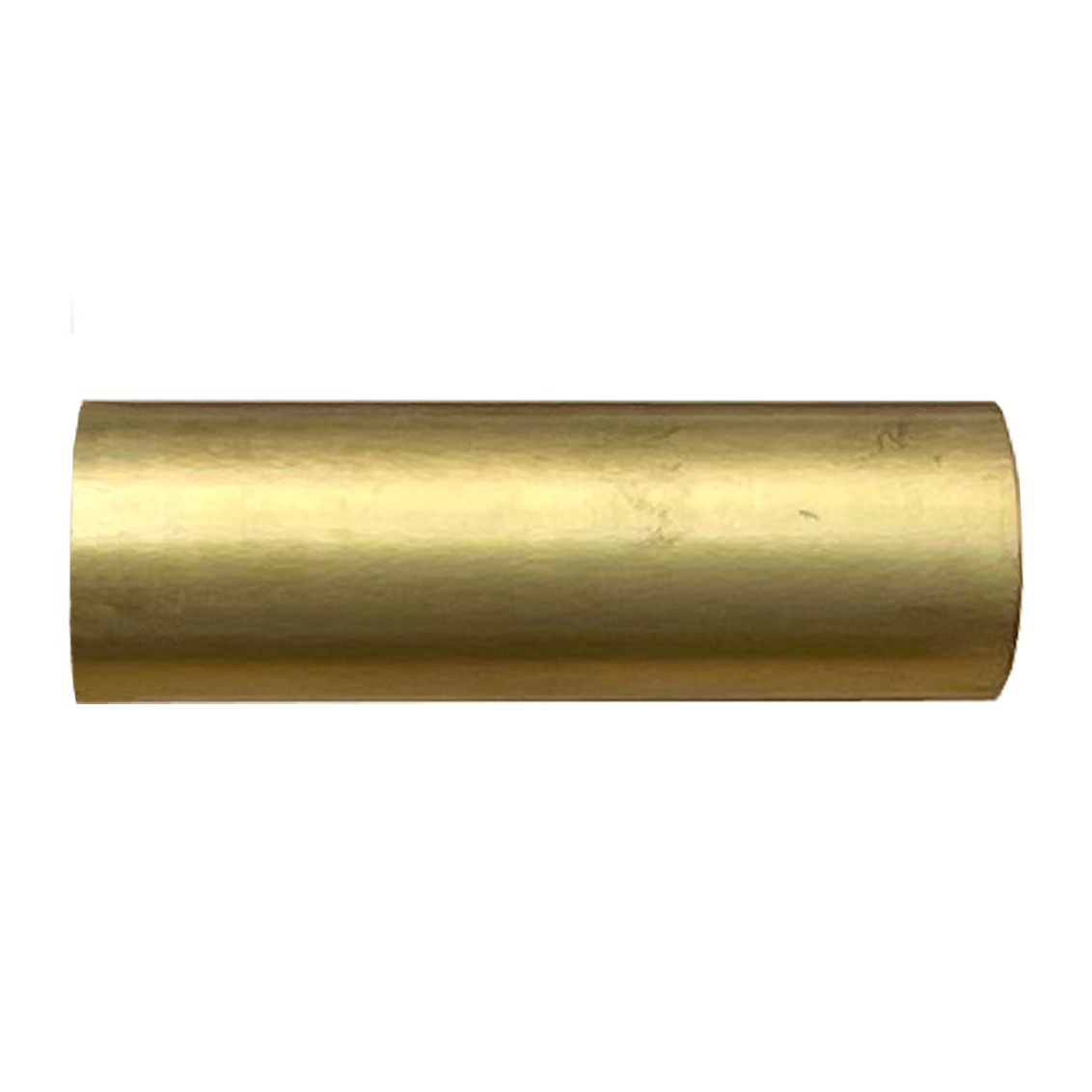

Brass Satin
Brass Wild Patina

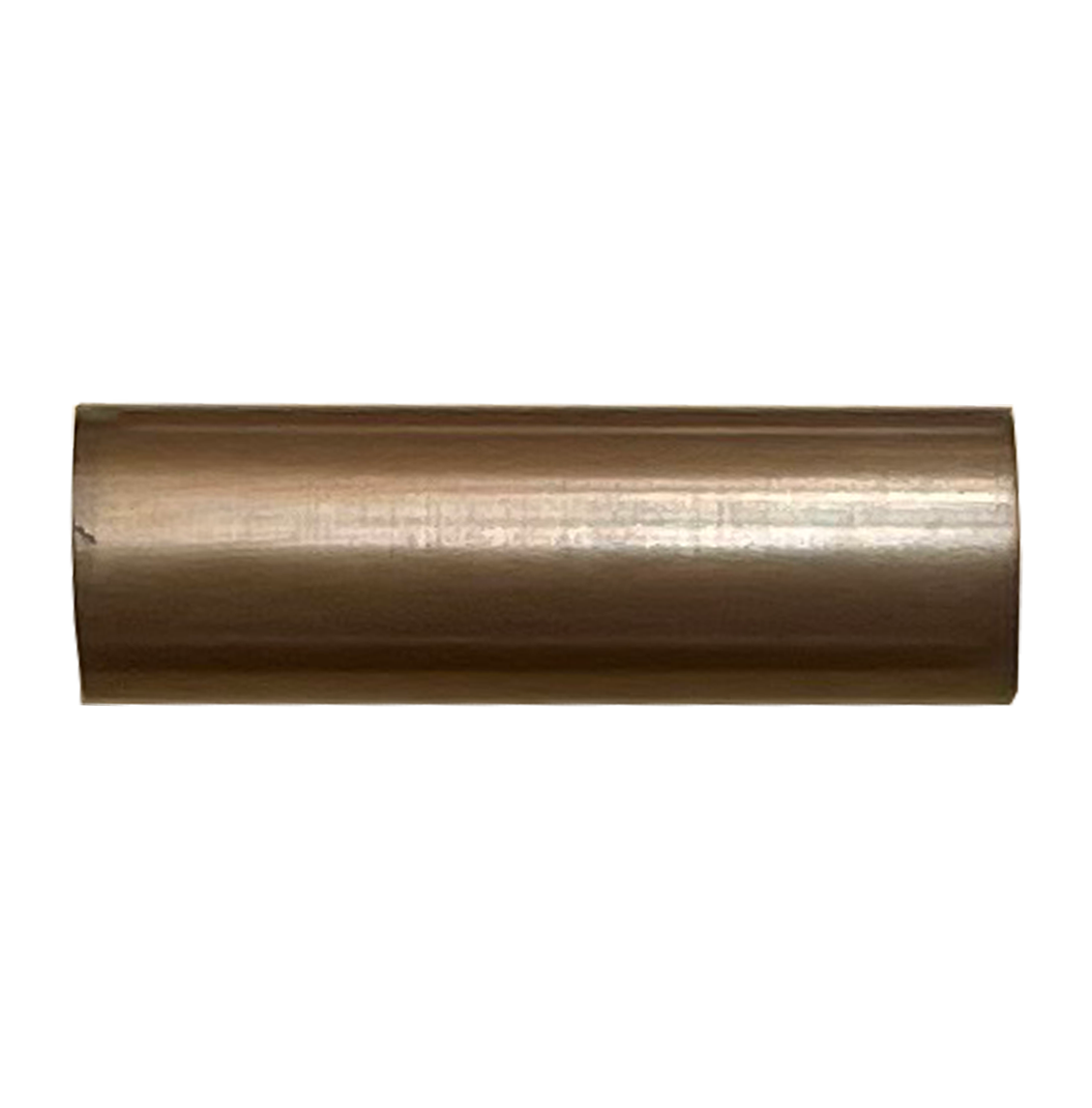

Copper Dark Bronze
Copper Satin

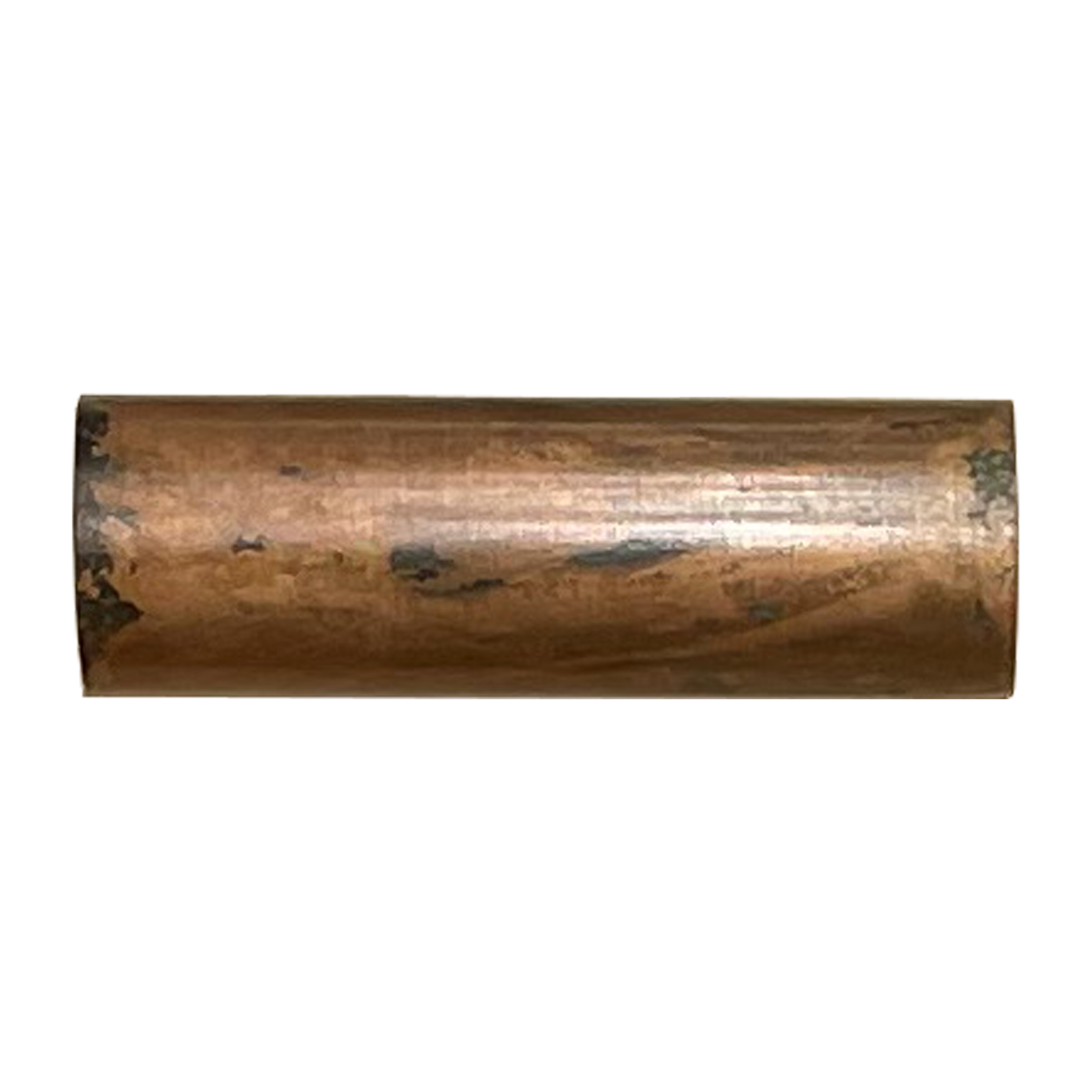

Copper Wild Patina
TIMBER OPTIONS
Blackbutt

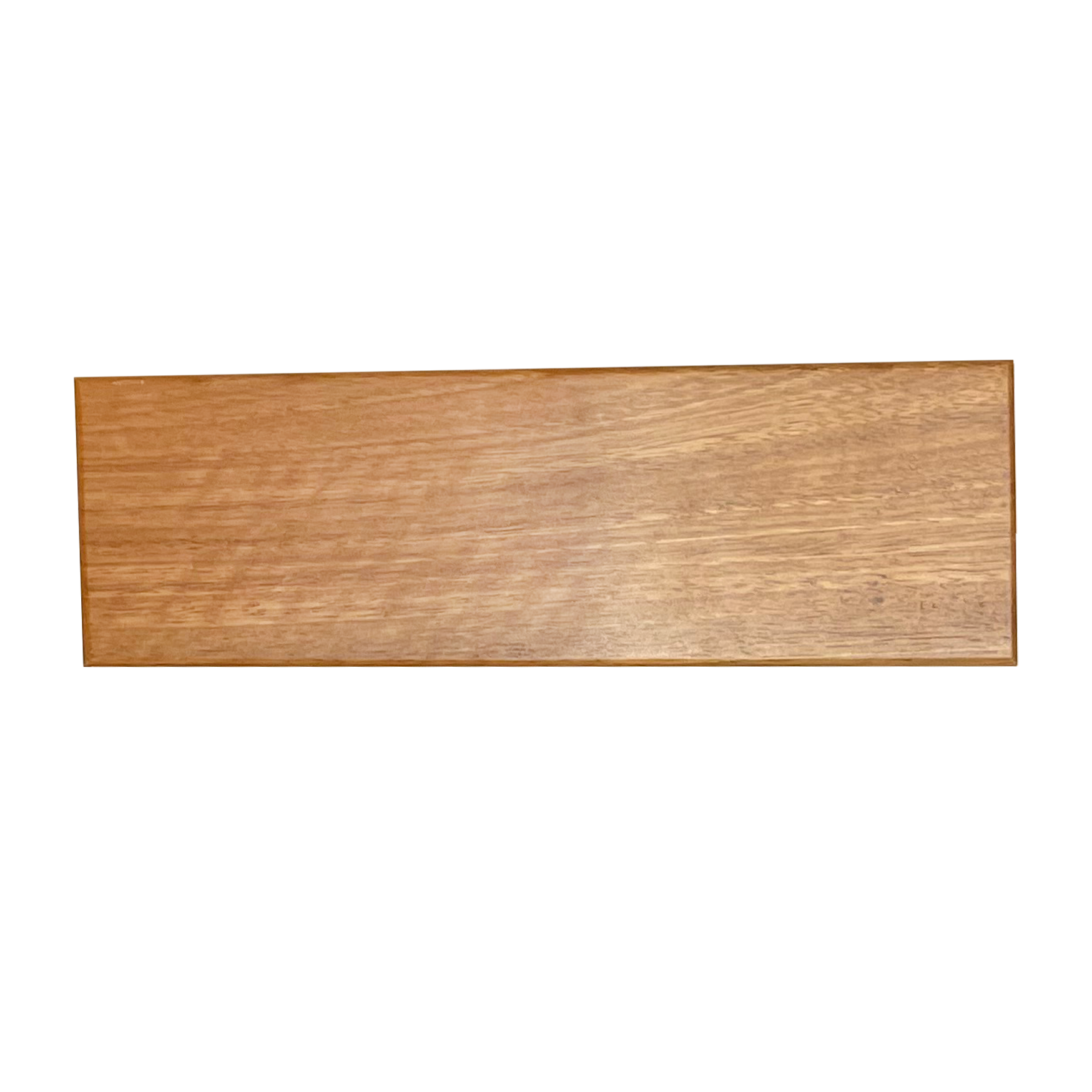

Spotted Gum

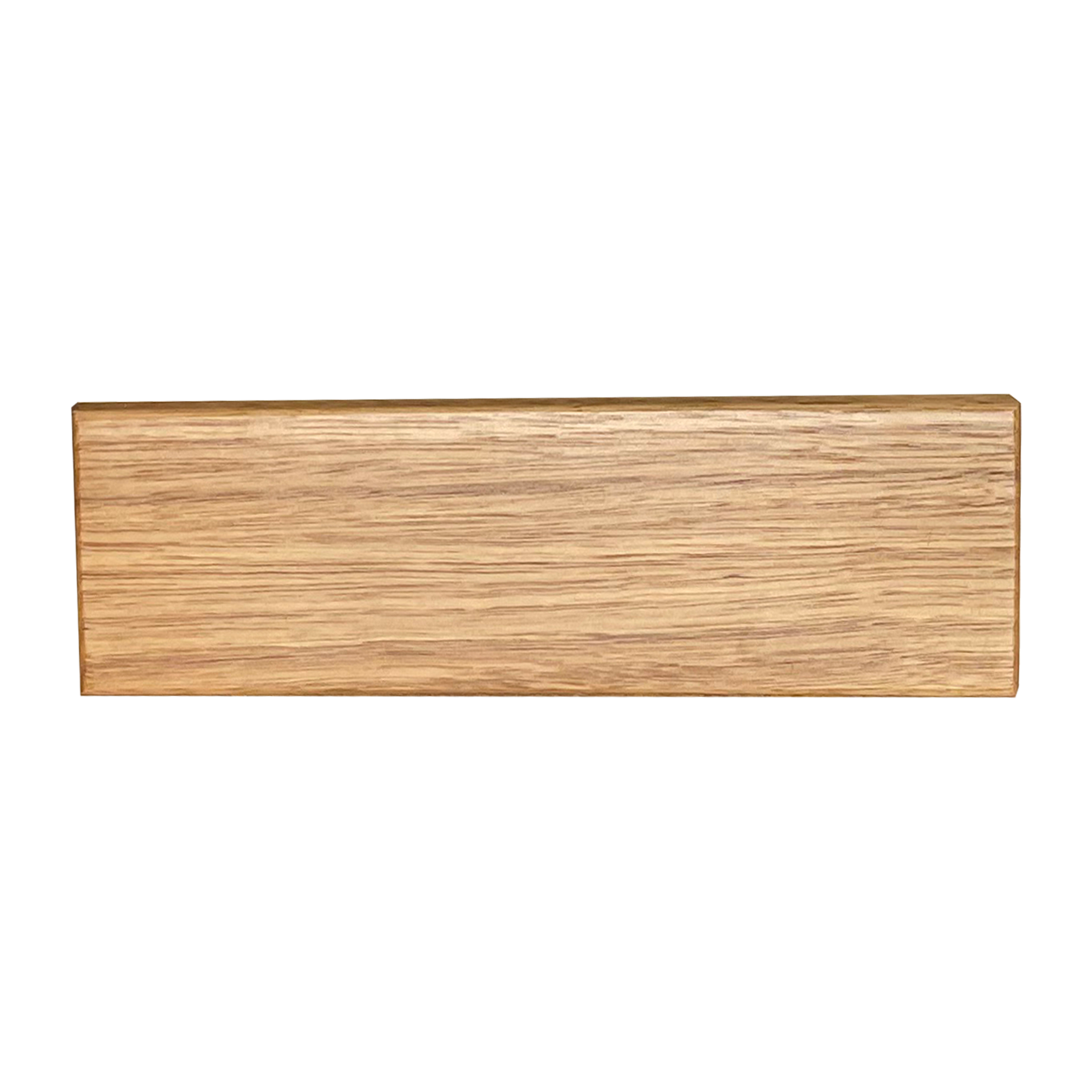

Tasmanian Oak
Additional timber types, timber stains and painted colours may be available on request.
LED STRIP OPTIONS
-
• 10W Continuous 3000K IP20 Strip
• 10W Continuous IP66 3000K Strip
• 20W 3000K IP20 Strip
• 20W 3000K IP66 Strip
-
• Elvis Flex CCT - 10W/m IP67 2700K-5300K Flexible LED Strip
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 150W/24V CCT DALI Driver (Dimmable) - Remote Driver
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
