Lectura
The Lectura is an adjustable, wall mounted reading light. This fitting is ideal for above bed heads or bedside tables for reading lighting. The Lectura has an in-built switch on the face of the fitting, allowing for ease of use.
SPECIFICATIONS
Power: 3W LED
Lumen Output: 280lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 73mm
Adjustability: Adjustable: 90° tilt & 320° swivel.
CRI: >90
IP Rated: 20
Wiring Info: 240V to fitting. If connected to DALI system, DALI relay required.
Input: 240V
Beam Angle: 24°
Dimming: No
Warranty: 3 years.
FINISH OPTIONS

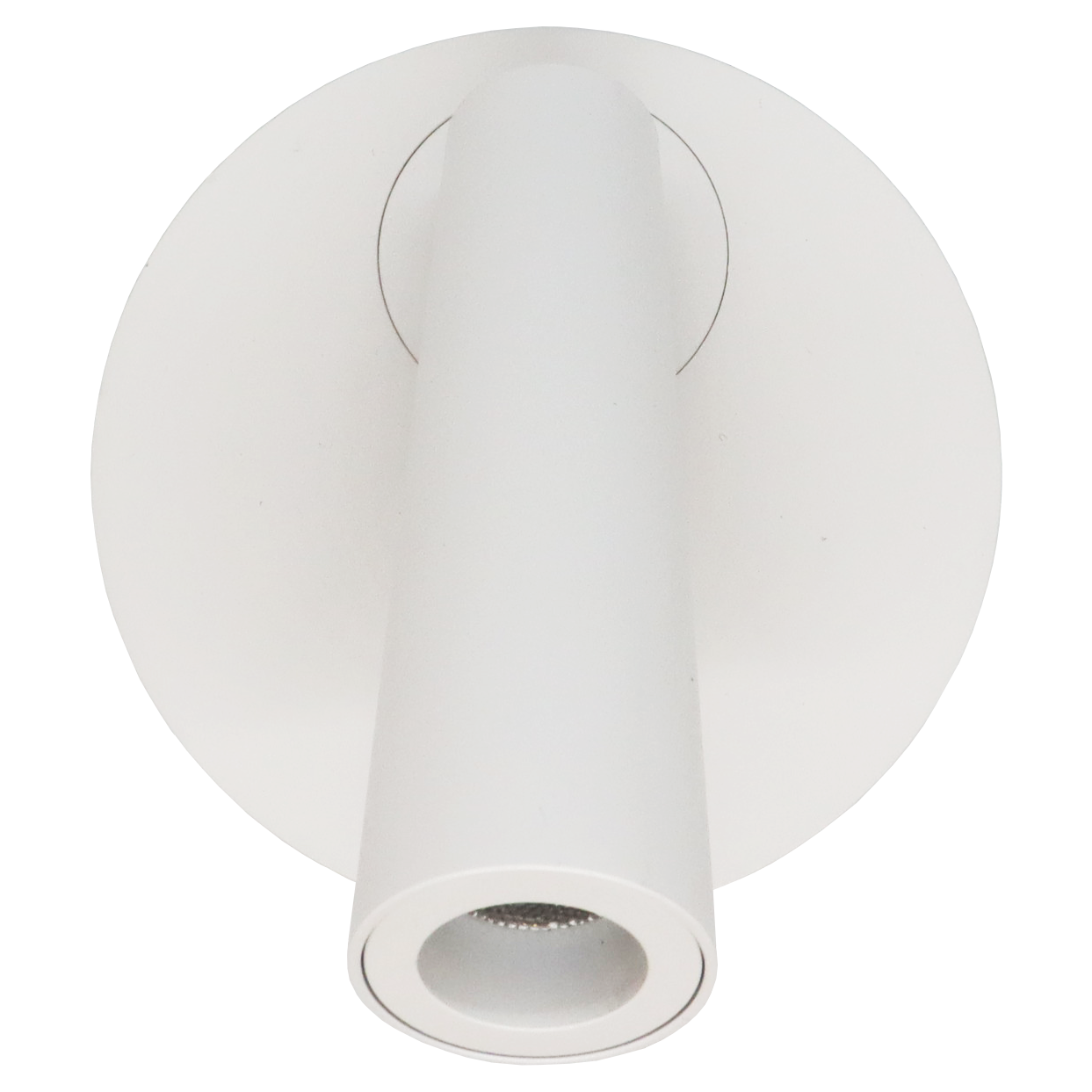

Sand White

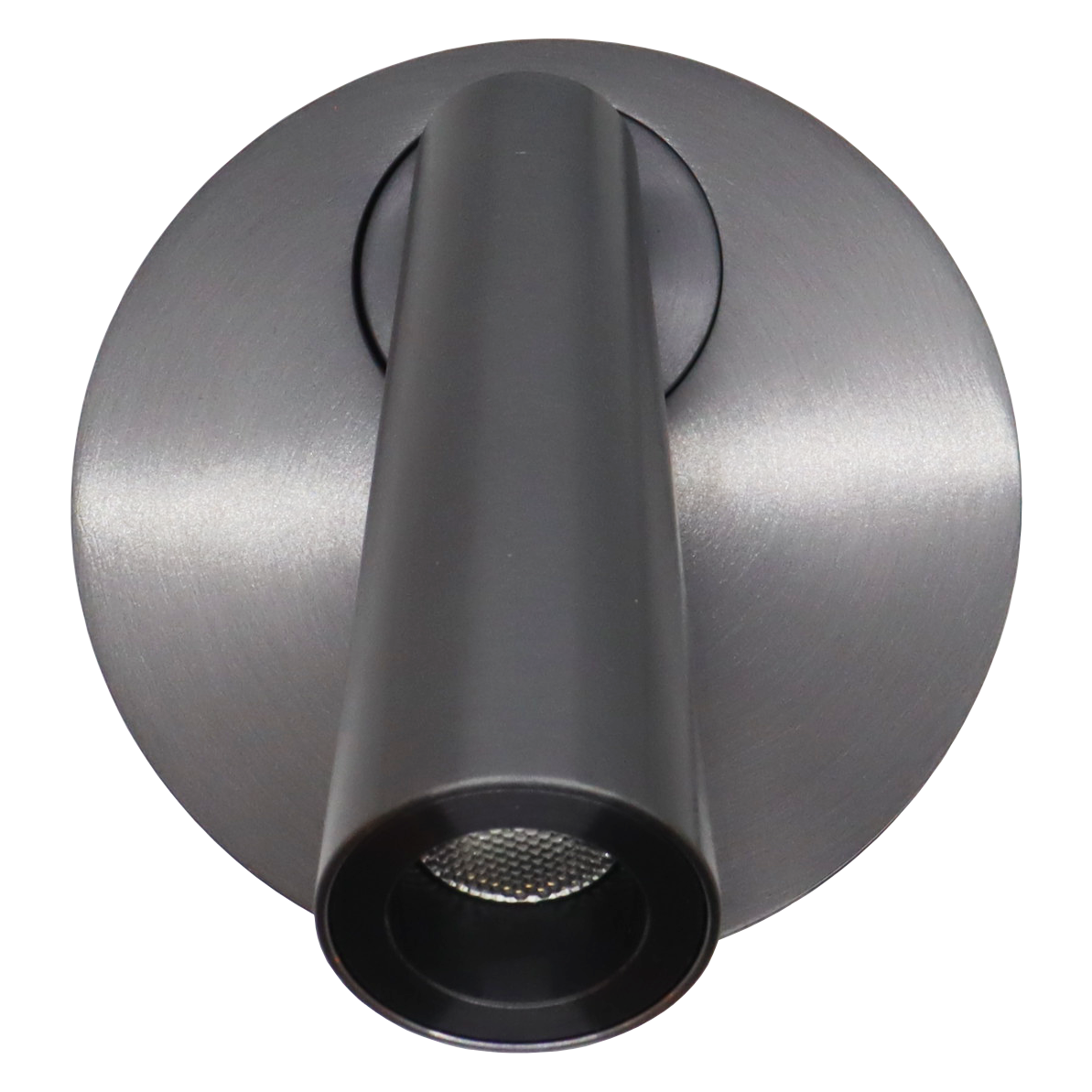

Nickel Brass
PRODUCT GALLERY
CONTROL GEAR OPTIONS
-
• Integral Driver (Non-Dimmable)
-
• DALI Relay - One per switch (Non-Dimmable)
DOWNLOADS
Photometric IES Files
WIRING INFORMATION FOR DALI
See the below diagram on how to wire DALI Relays.
