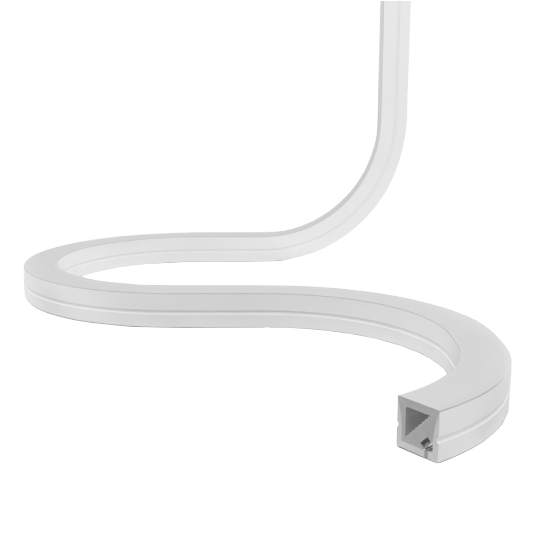

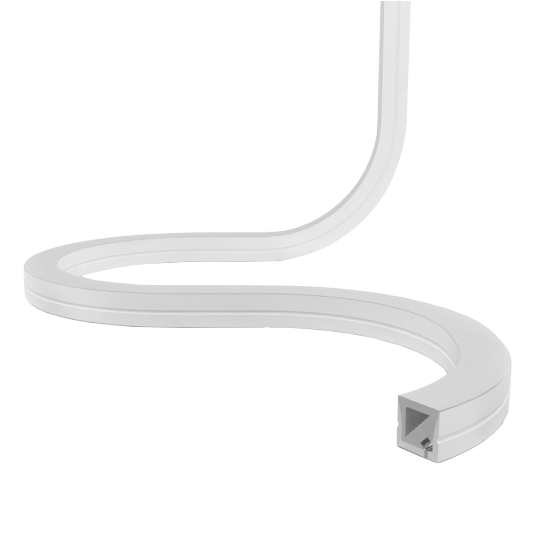

Elvis CCT Flex
The Elvis CCT Flex is a CCT, side and top bending flexible LED. A straight and curved profile are available with mounting clips. This LED is IP67 and is ideal for curved walls, ceilings, joineries or exterior settings.
SPECIFICATIONS
Power: 10W/m LED
Lumen Output: 520lm/m approx.
CCT Colour Temperature: 2700K-6500K
CCT Strip: Requires 3-core cables; warm white, cool white and a positivie cable.
Cut Out: 16mm x 15mm
Cut Out - Straight & Curved Profile: 1000mm (length) x 18.1mm (w) x 18.9mm (h).
Adjustability: Flexible, side and top bending.
CRI: >90
IP Rated: 67
Wiring Info: 240V/DALI to driver, low voltage, driver remote.
Input: 24V
Beam Angle: N/A
Dimming: DALI
Warranty: 3 years.
FINISH OPTIONS
White
CONTROL GEAR OPTIONS
-
• 75W/24V CCT DALI Driver (Dimmable) - Remote Driver
• 150W/24V CCT DALI Driver and Controller (Dimmable) - Remote Driver

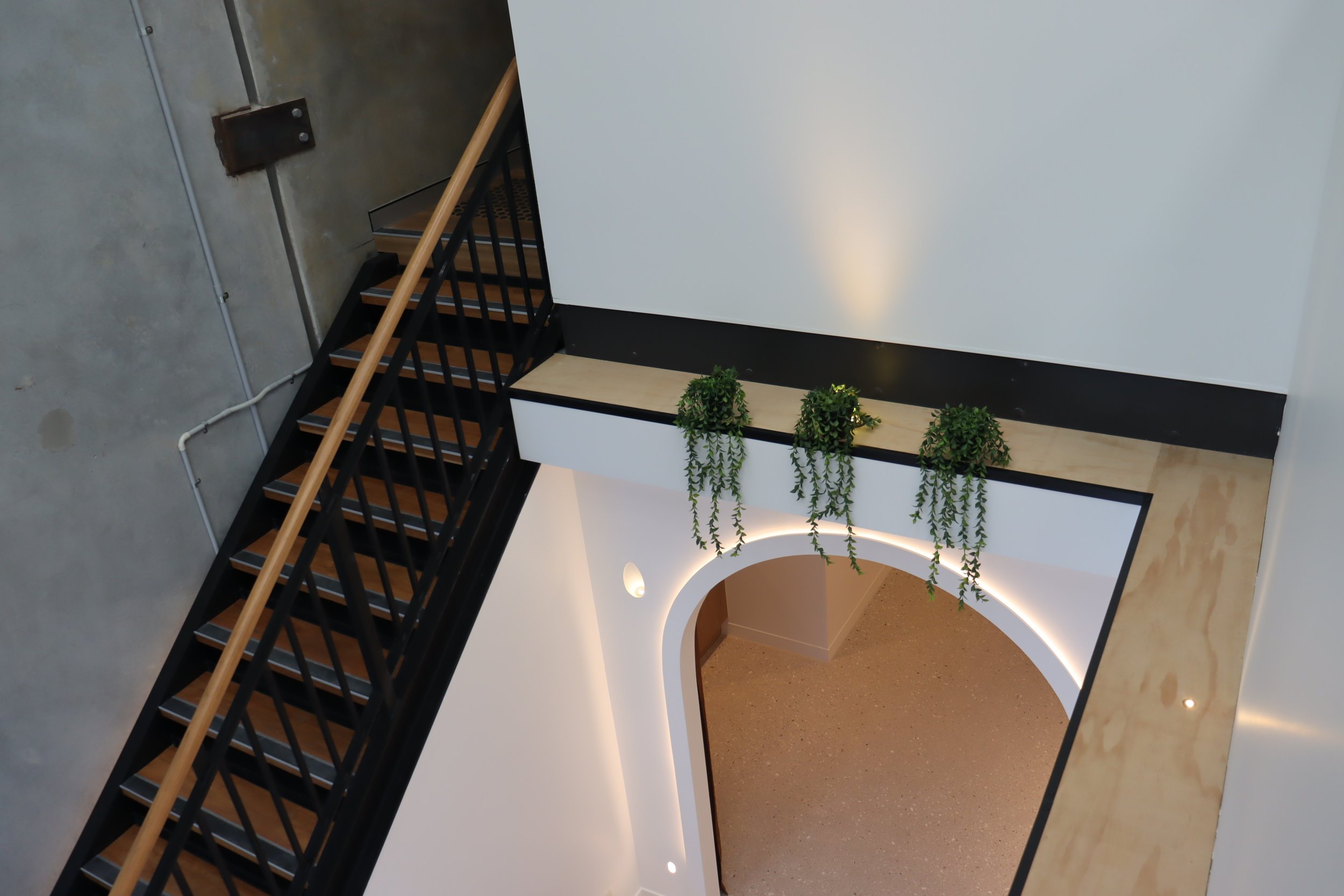

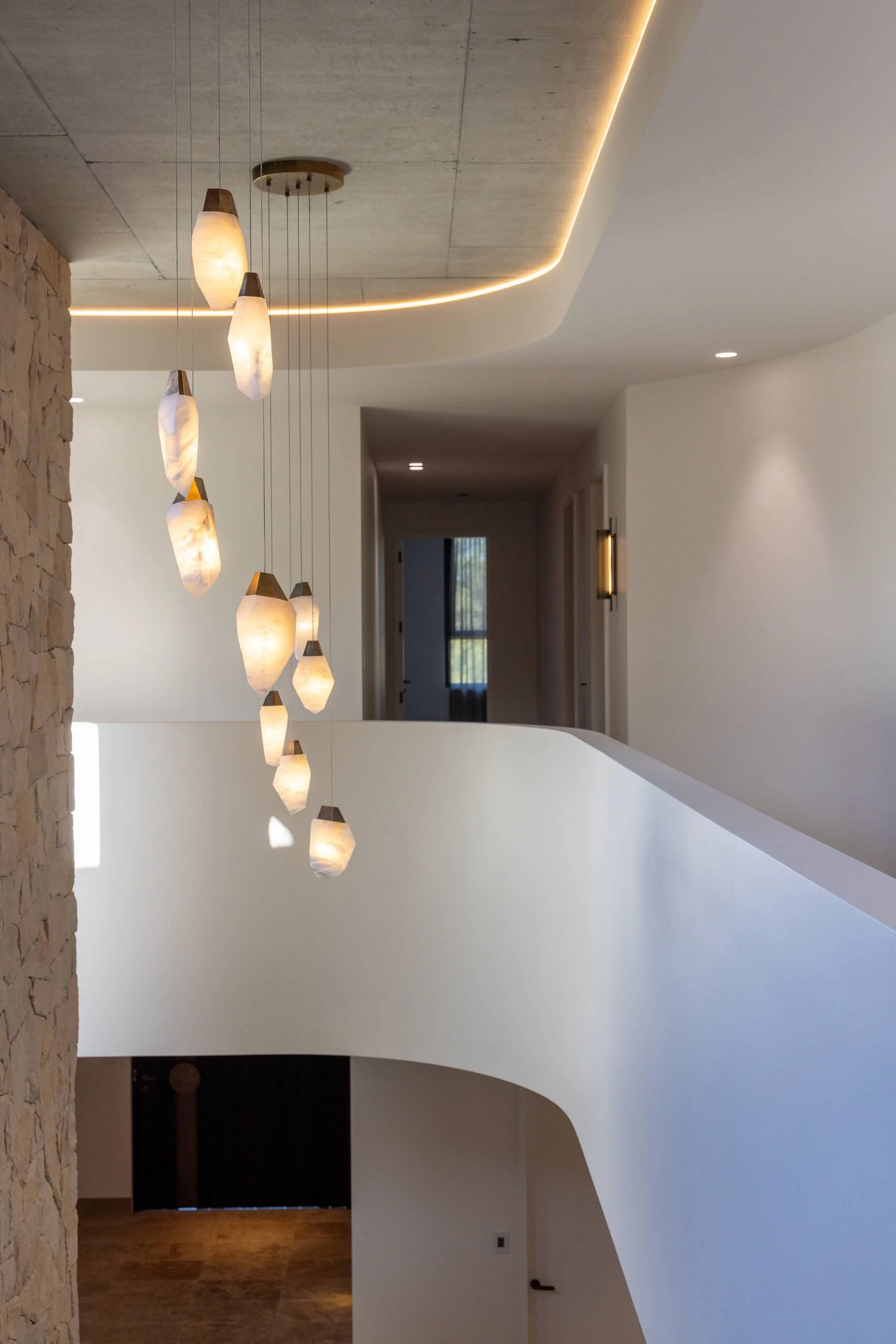

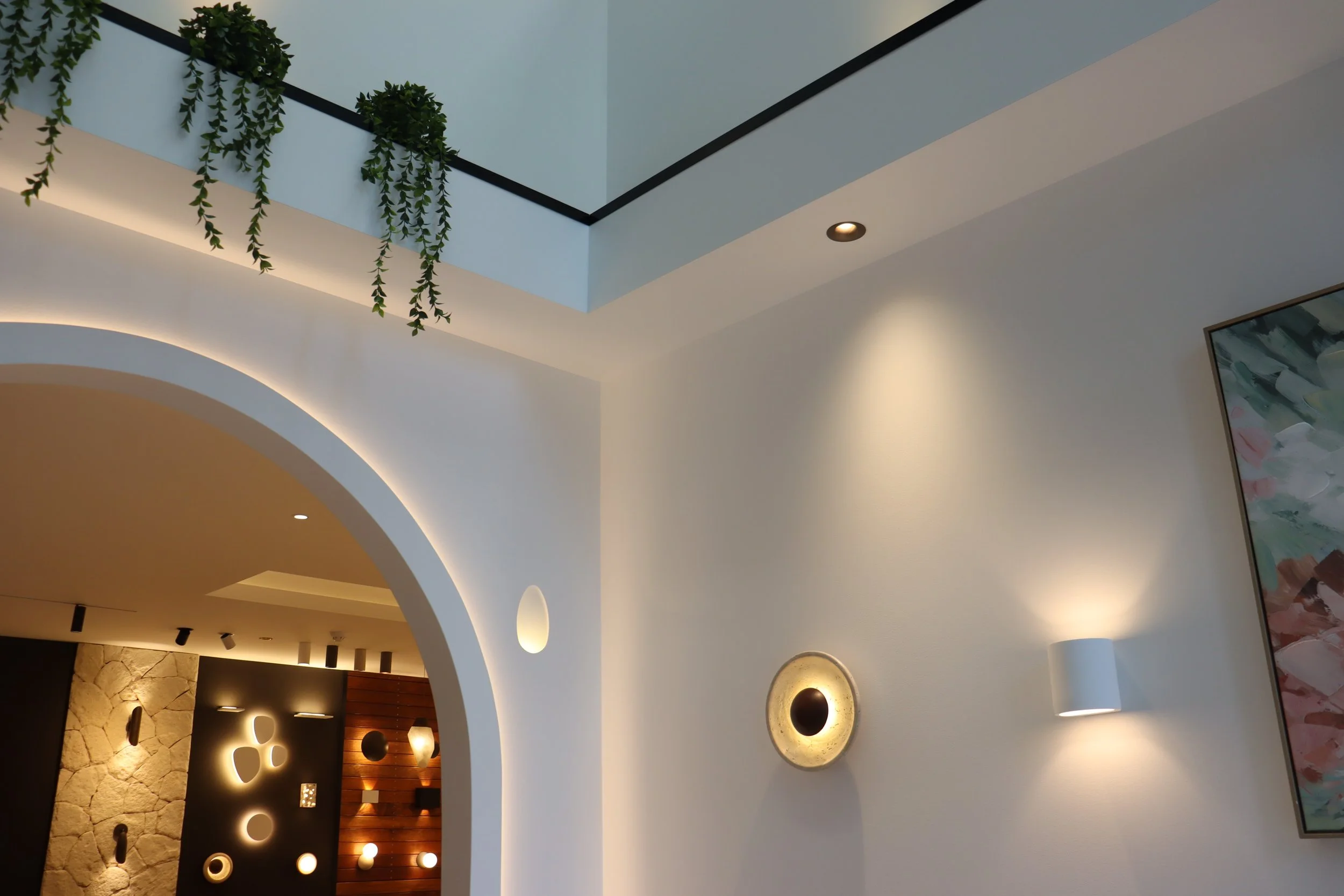

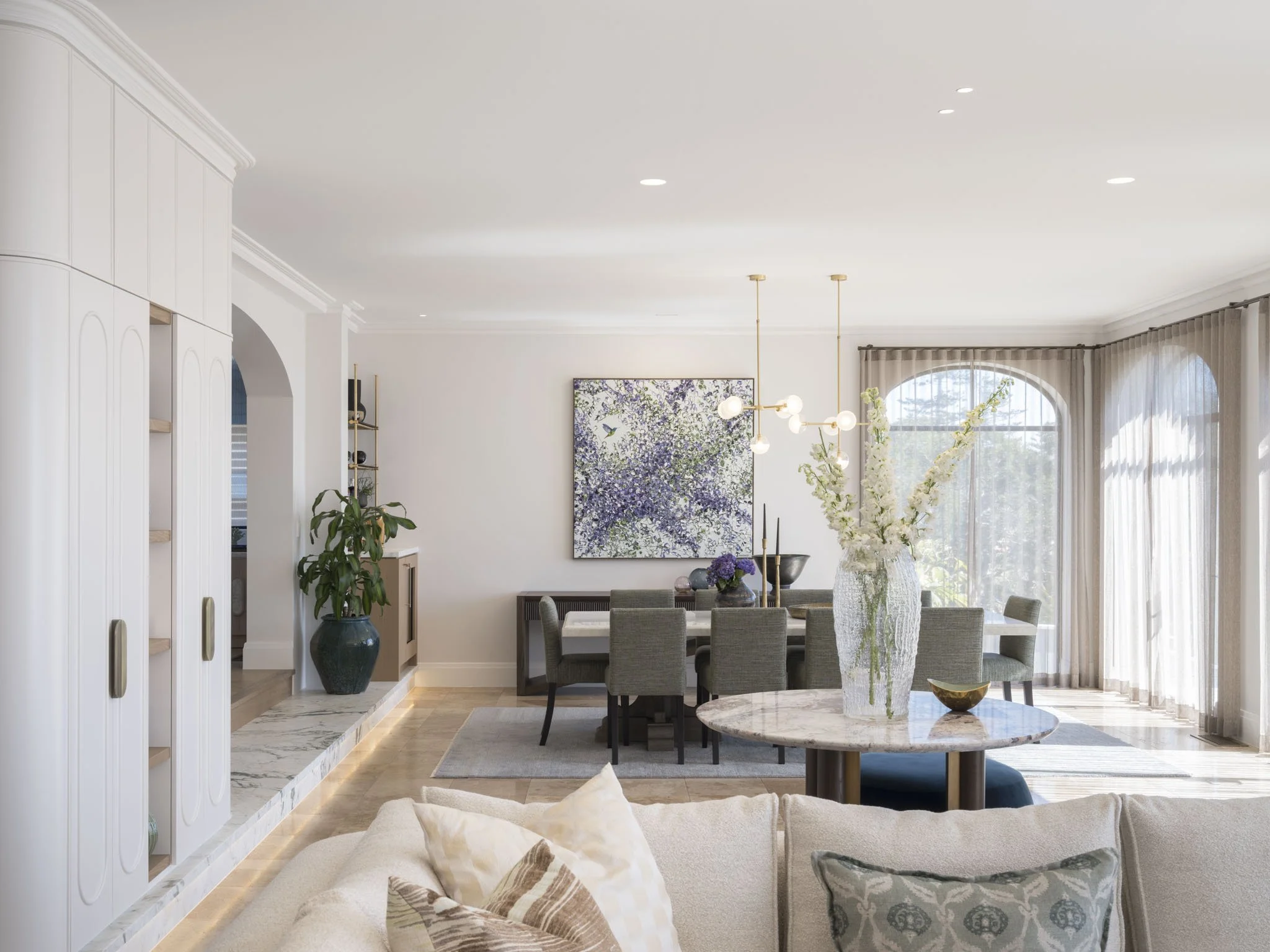

PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in series. See the below diagram on how to wire in parallel.
