Zeppelin RGBW LED Flex
TOP & SIDE BENDING RGBW FLEXIBLE LED

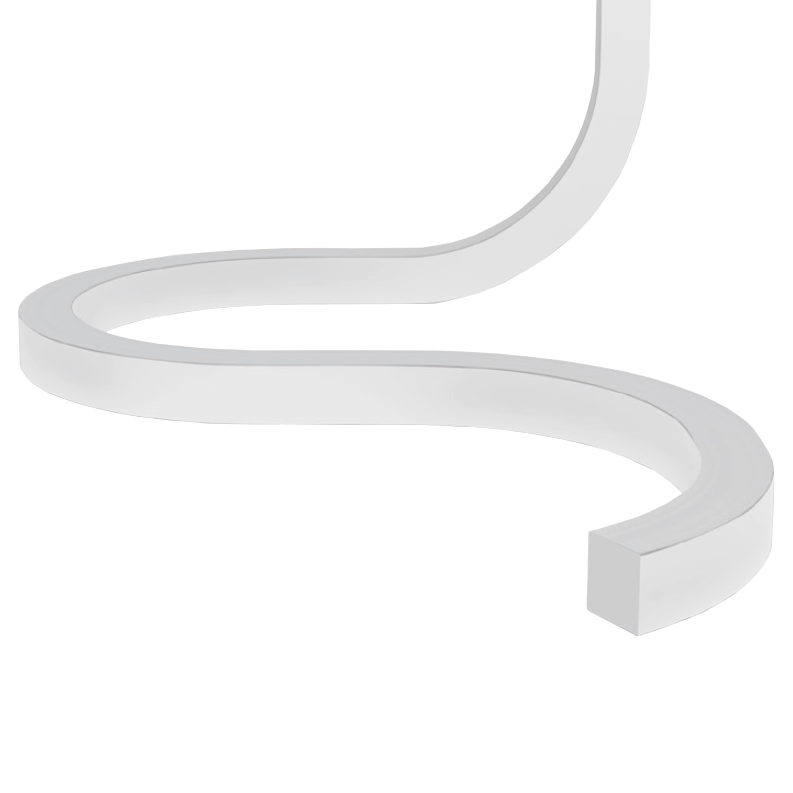

The Zeppelin is an RGBW LED Flex made from silicone which provides high transparency and strength. The coextrusion IP67 IP67 neon has dual vertical & horizontal bend. This LED Flex is available in 5m rolls & cut point is 62.5mm.
SPECIFICATIONS
Power: 15W/m LED
Lumen Output: 447lm/m
Colour Temperature: 3000K
Cut Out: 17mm x 16mm, allow 2mm more.
Depth: 17mm, allow 2mm more.
Adjustability: Flexible, top & side bend.
CRI: 80-90
IP Rated: 67
Wiring Info: DALI to driver remote, low voltage.
Input: 24V
Beam Angle: N/A

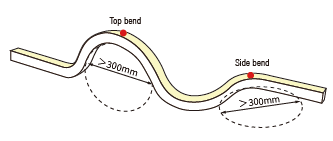

Bending: Minimum bending diameter of top bend & side bend: <300mm.
Dimming: DALI
Warranty: 3 years.
FINISH OPTIONS
White
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in series. See the below diagram on how to wire in parallel.
-
• 150W/24V RGB/RGBW DALI Driver
