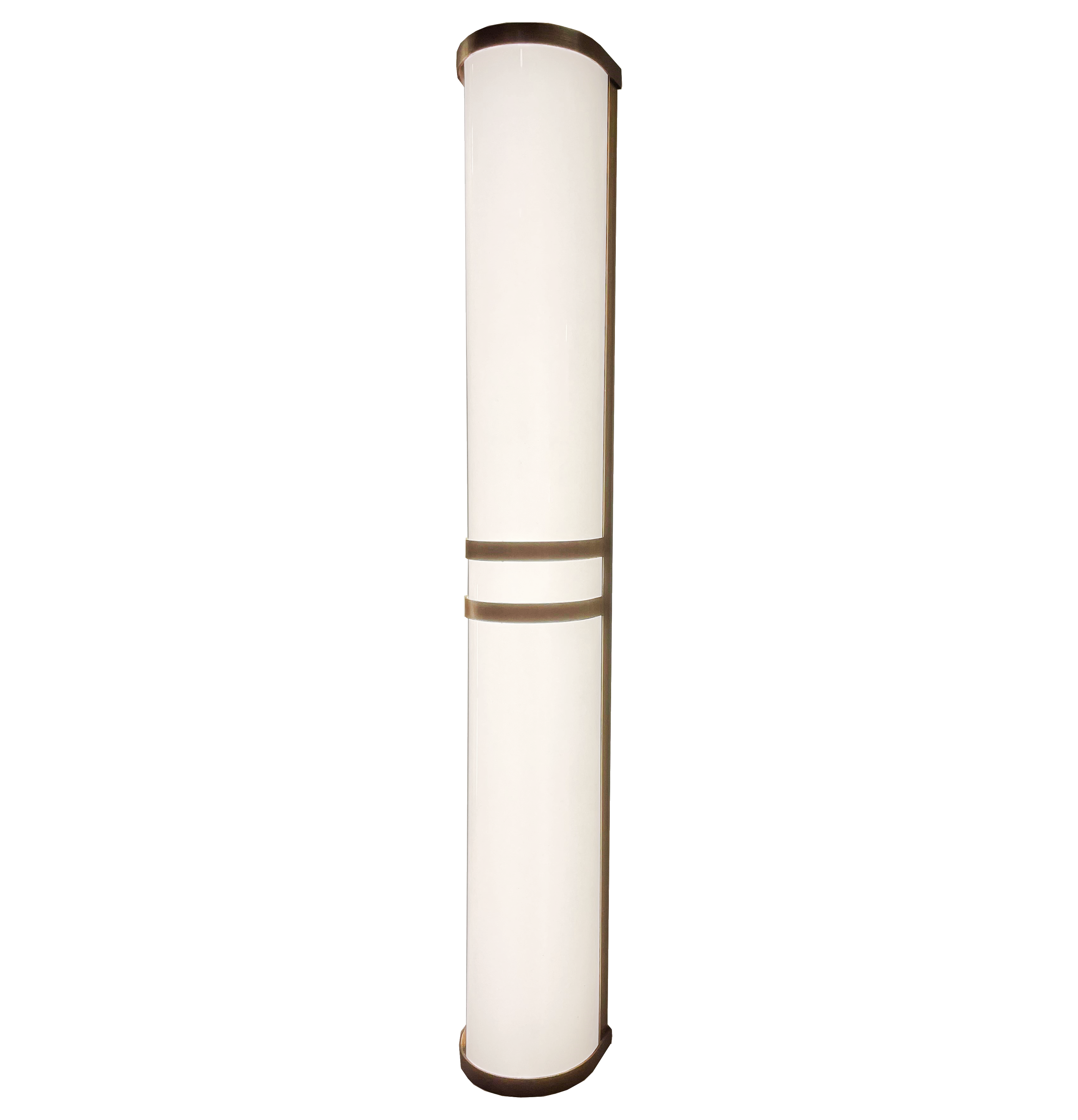

Celine Wall Light
DECORATIVE WALL LIGHT
The Celine is a decorative wall light ideal for installation in powder rooms, lounge rooms and general areas to provide ambient and general lighting.
SPECIFICATIONS
Power: 5W/500mm
Lumen Output: 300lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 70mm
Adjustability: Fixed
CRI: 80
IP Rated: 20
Wiring Info: Parallel to driver.
Input: 24V
Beam Angle: N/A
Dimming: DALI, Phase, CCT Tunable White
CCT Tunable White: 2700K-6000K
Warranty: 3 years.
FINISH OPTIONS
Antique Brass + Polycarbonate
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
CONTROL GEAR OPTIONS
-
36W/24V driver: dimmable, remote driver & one per switch.
75W/24V driver: dimmable, remote driver & one per switch.
150W/24V driver: dimmable, remote driver & one per switch.
-
36W/24V DALI driver: dimmable, remote driver & one per switch.
75W/24V DALI driver: dimmable, remote driver & one per switch.
150W/24V DALI driver: dimmable, remote driver & one per switch.
240W/24V DALI driver: dimmable, remote driver & one per switch.
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
