Clementine II

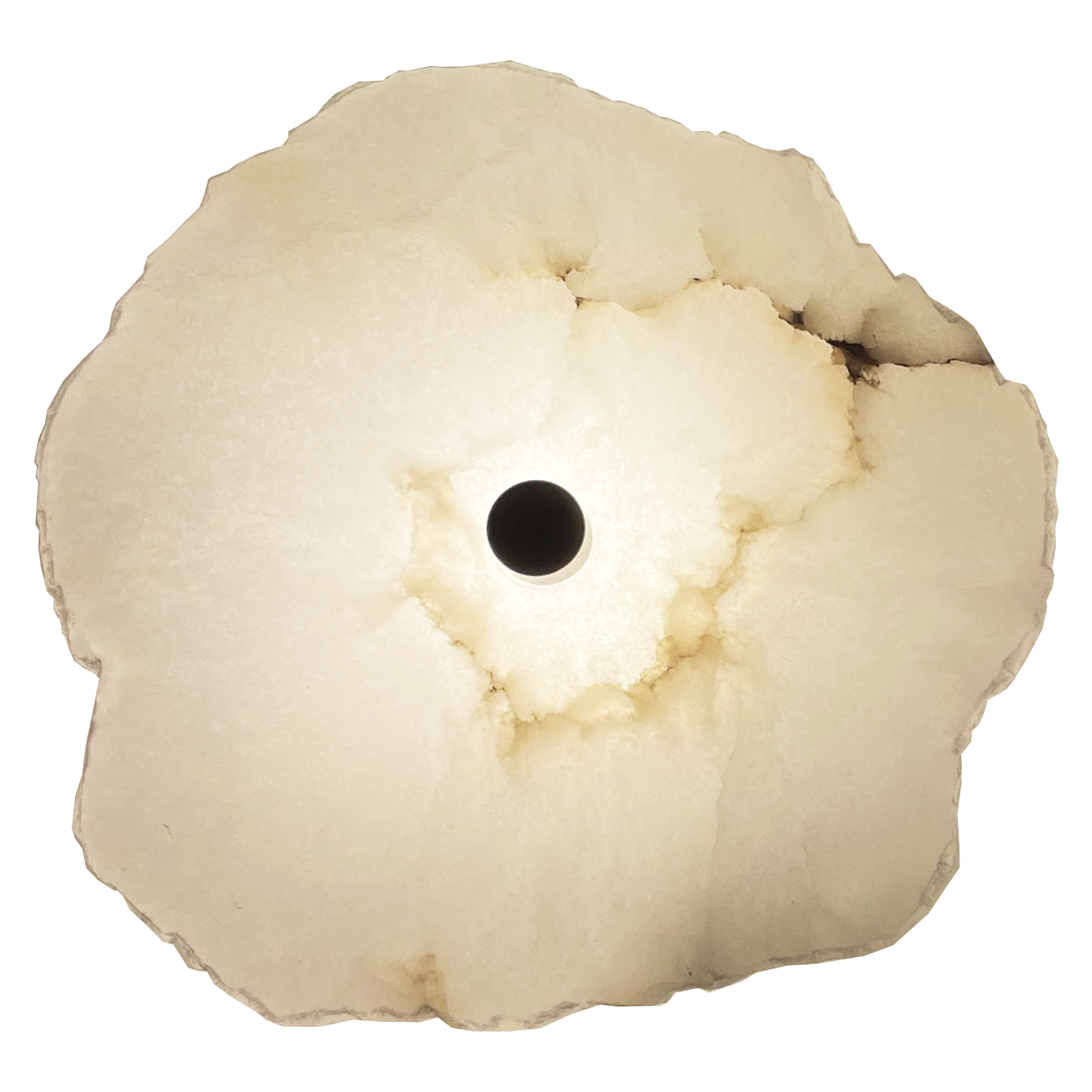

The Clementine II is a wall light crafted from alabaster stone and antique brass. This fitting creates a beautiful backlit glow, with a halo of light. The Clementine II has a smaller version, the Clementine I, which can paired together to create a gorgeous lighting solution.
SPECIFICATIONS
Power: 5W LED
Lumen Output: 300lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 85mm
Adjustability: Fixed
CRI: 80-90
IP Rated: 20
Wiring Info: DALI to driver or 240V to driver remote, low voltage to fitting. If more than one fitting, wire in parallel.
Input: 24V
Beam Angle: Backlit
Dimming: DALI, requires 2 or more fittings.
Warranty: 3 years.
FINISH OPTIONS
Alabaster Stone
PRODUCT GALLERY
CONTROL GEAR OPTIONS
-
• 240V to fitting (non-dimmable)
-
• DALI Relay - One per switch (non-dimmable)
DOWNLOADS
Photometric IES Files
WIRING INFORMATION FOR DALI OPTION
See the below diagram on how to wire DALI Relays.
