Clementine I

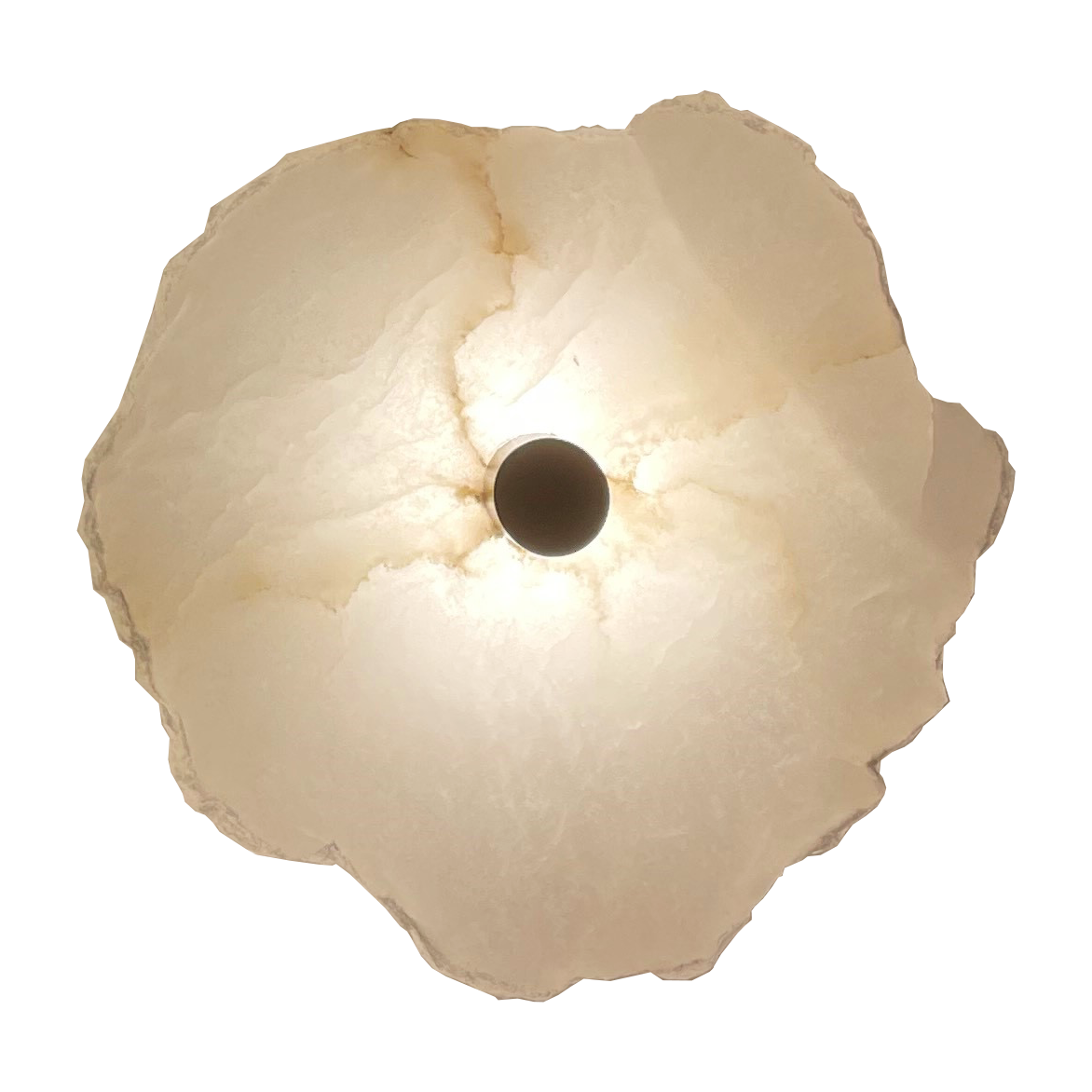

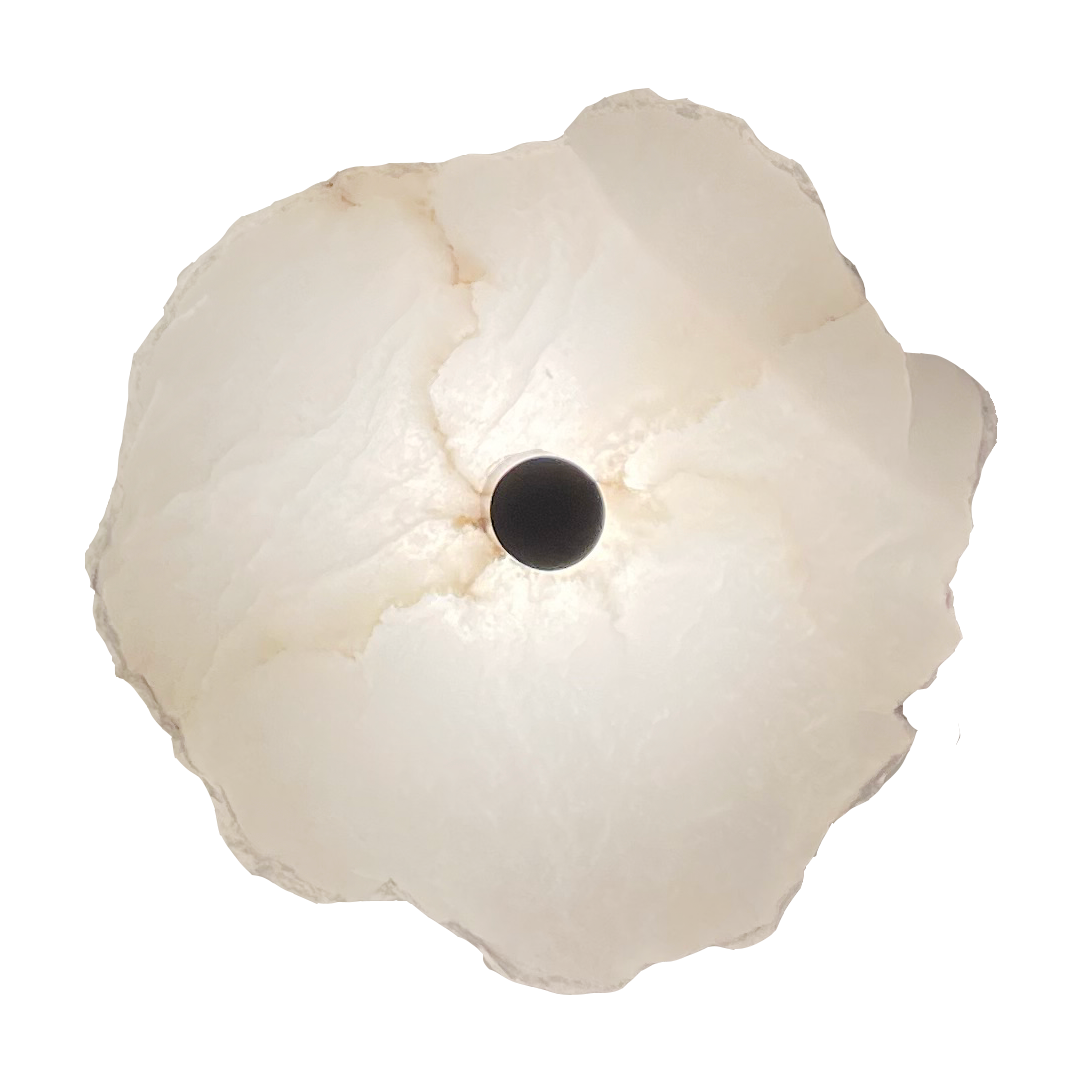

The Clementine I is a wall light crafted from alabaster stone and antique brass. This fitting creates a beautiful backlit glow, with a halo of light. The Clementine I has a larger version, the Clementine II, which can paired together to create a gorgeous lighting solution.
SPECIFICATIONS
Power: 5W LED
Lumen Output: 300lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 65mm
Adjustability: Fixed
CRI: 80-90
IP Rated: 20
Wiring Info: DALI to driver or 240V to driver remote, low voltage to fitting. If more than one fitting, wire in parallel.
Input: 24V
Beam Angle: Backlit
Dimming: DALI, requires 2 or more fittings.
Warranty: 3 years.
FINISH
Alabaster crystal with antique brass

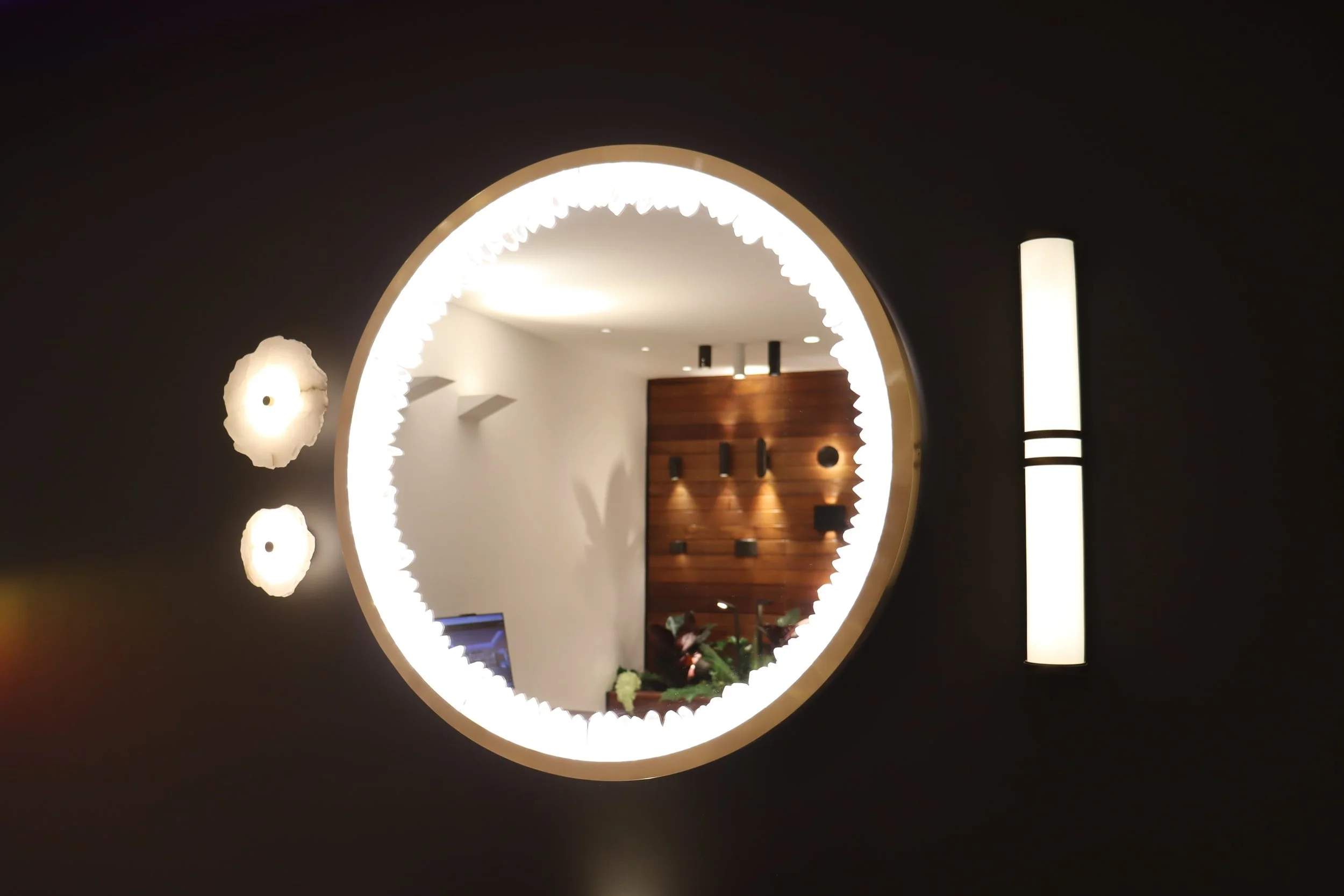

PRODUCT GALLERY
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V DALI Driver (Dimmable) - Remote Driver
• 75W/24V DALI Driver (Dimmable) - Remote Driver
• 150W/24V DALI Driver (Dimmable) - Remote Driver
• 240W/24V DALI Driver (Dimmable) - Remote Driver
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant voltage 24V drivers must be wired in parallel. See the below diagram on how to wire in parallel.
