Vader
SURFACE MOUNTED LOW LEVEL WALL LIGHT | DARK RANGE

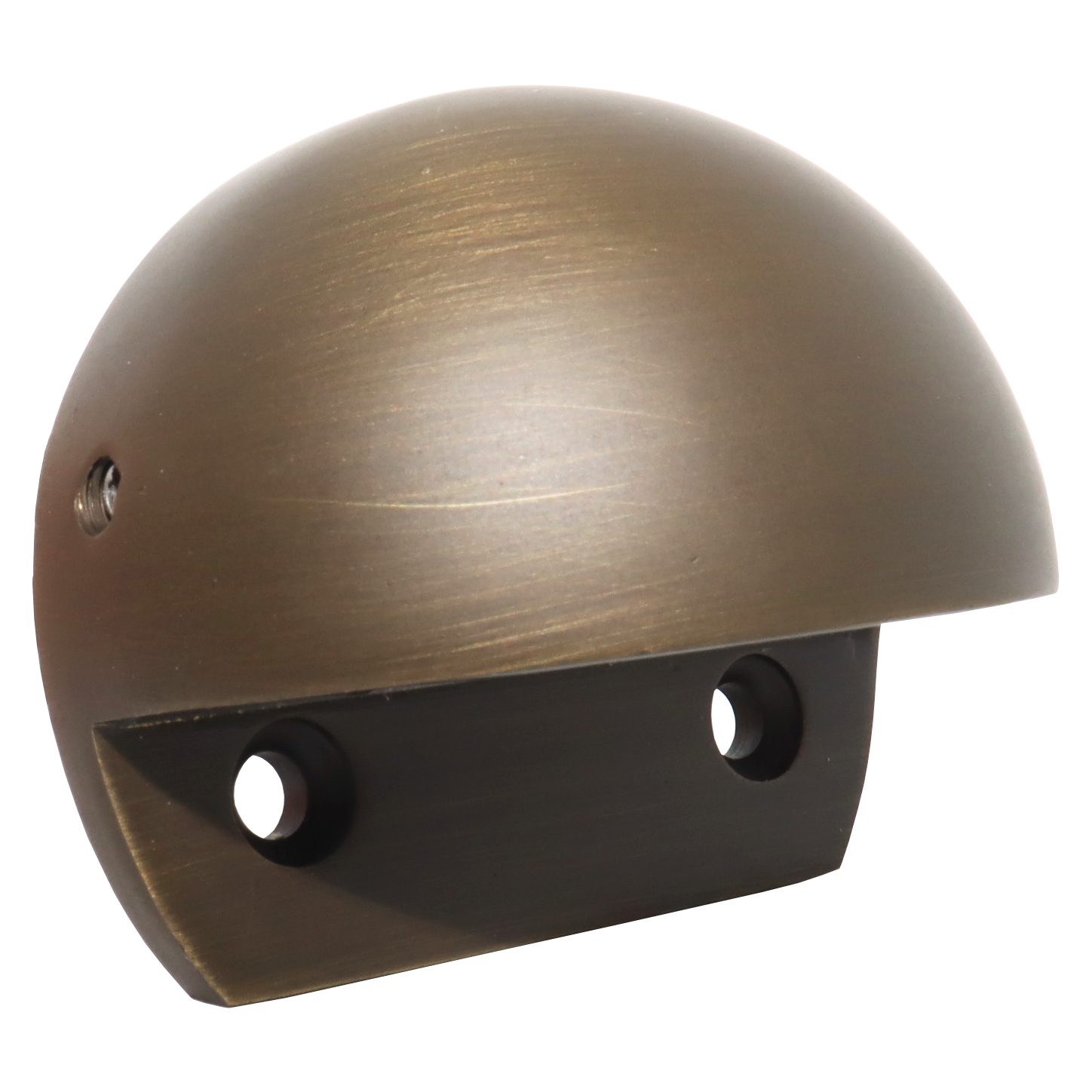

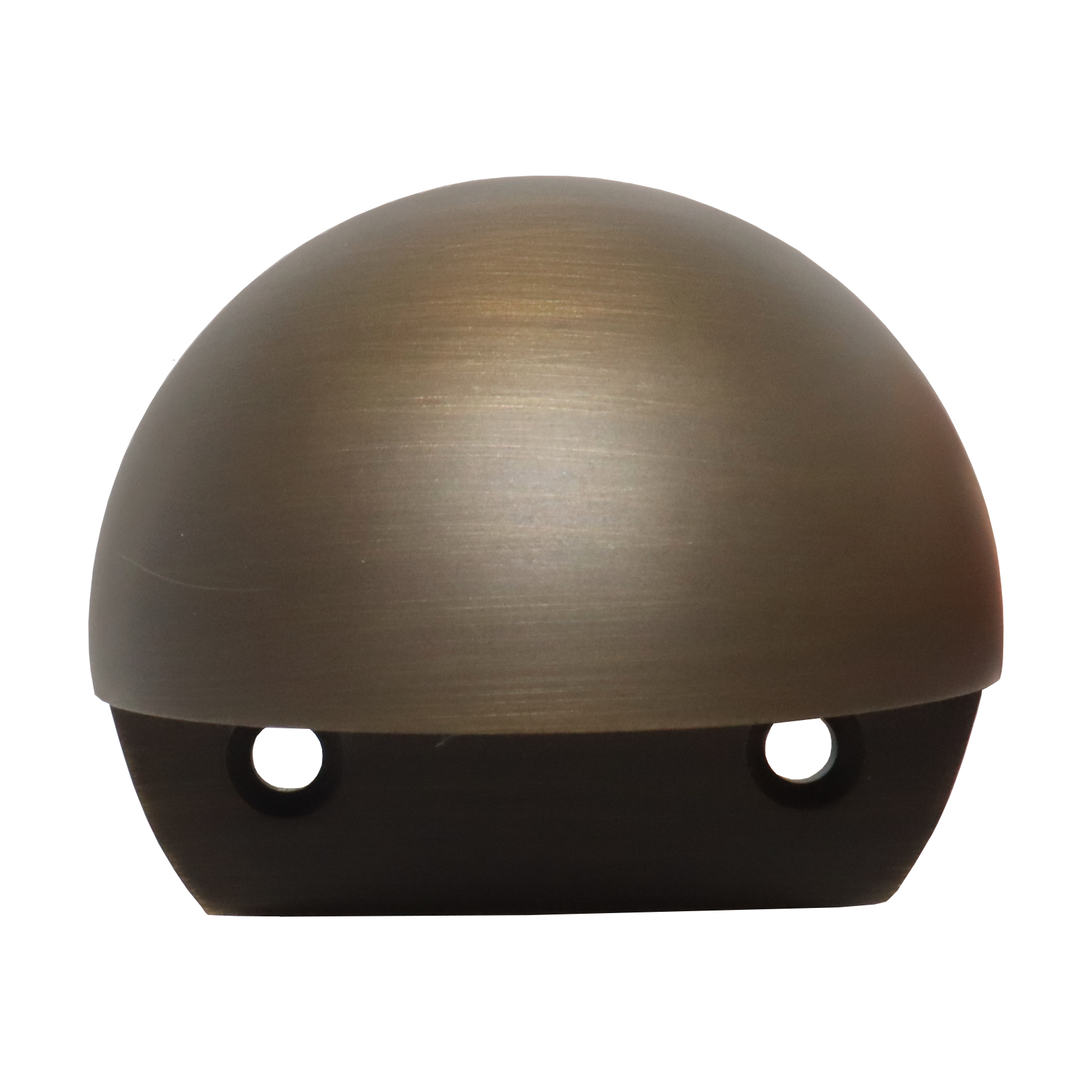

The Vader is a solid brass, surface mounted low level wall light. This fitting is suitable for lighting exterior stairs and pathways.
Our brass luminaires are suitable for all climates, including coastal environments. Brass exposed to the elements will oxidise over time to create a patina and a darker finish. This is a natural process and does not compromise the structural integrity.
SPECIFICATIONS
Power: 3W LED
Lumen Output: 300lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Depth: 33mm
Adjustability: Fixed
CRI: 80-90
IP Rated: 65
Wiring Info: 240V to driver remote, low voltage to fitting. If more than one fitting, wire in parallel.
Input: 12V DC
Beam Angle: 120°
Dimmable: No
Warranty: 7 year ‘structural’ warranty.
FINISH OPTIONS
Antique Brass

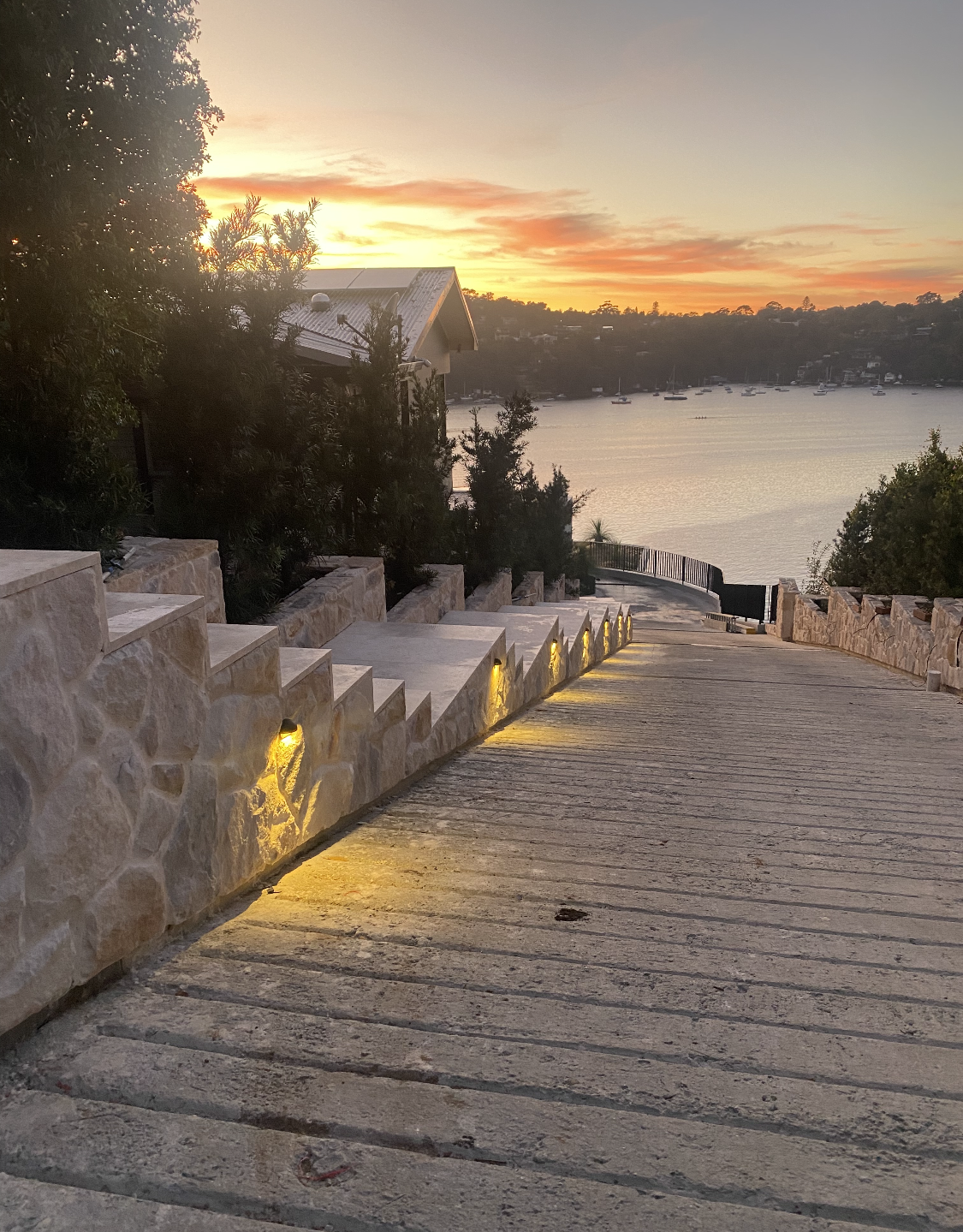

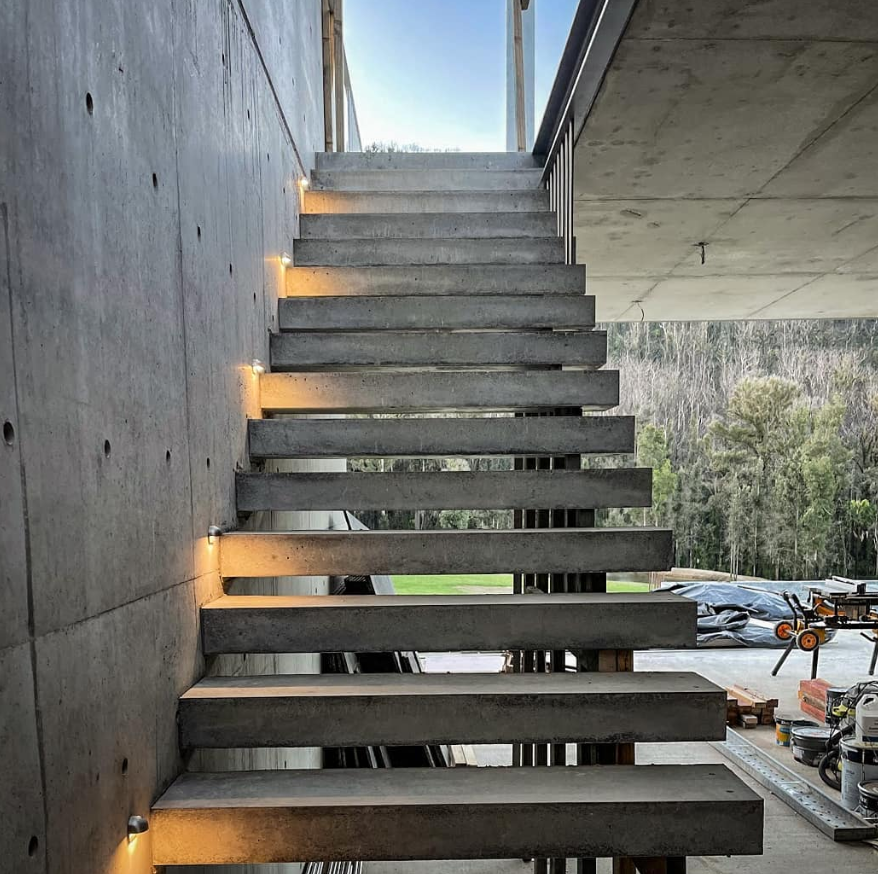

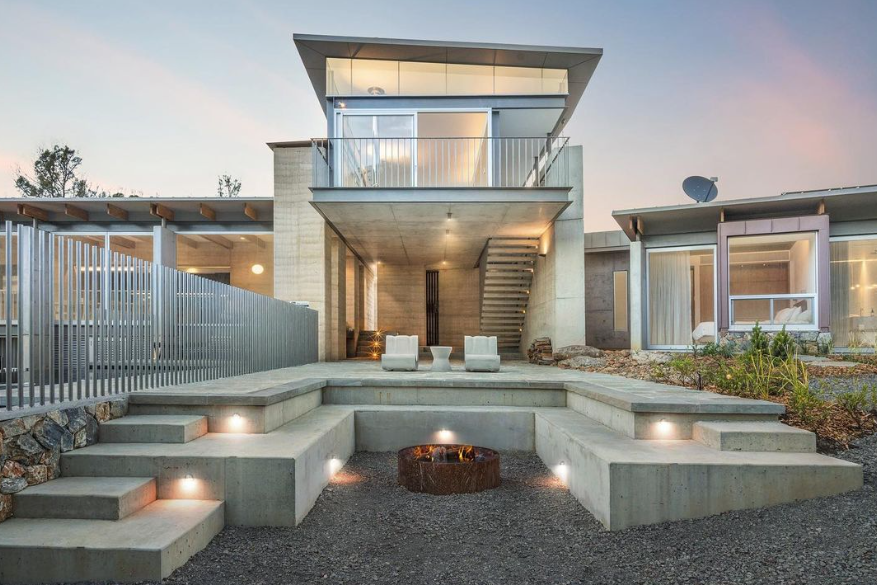

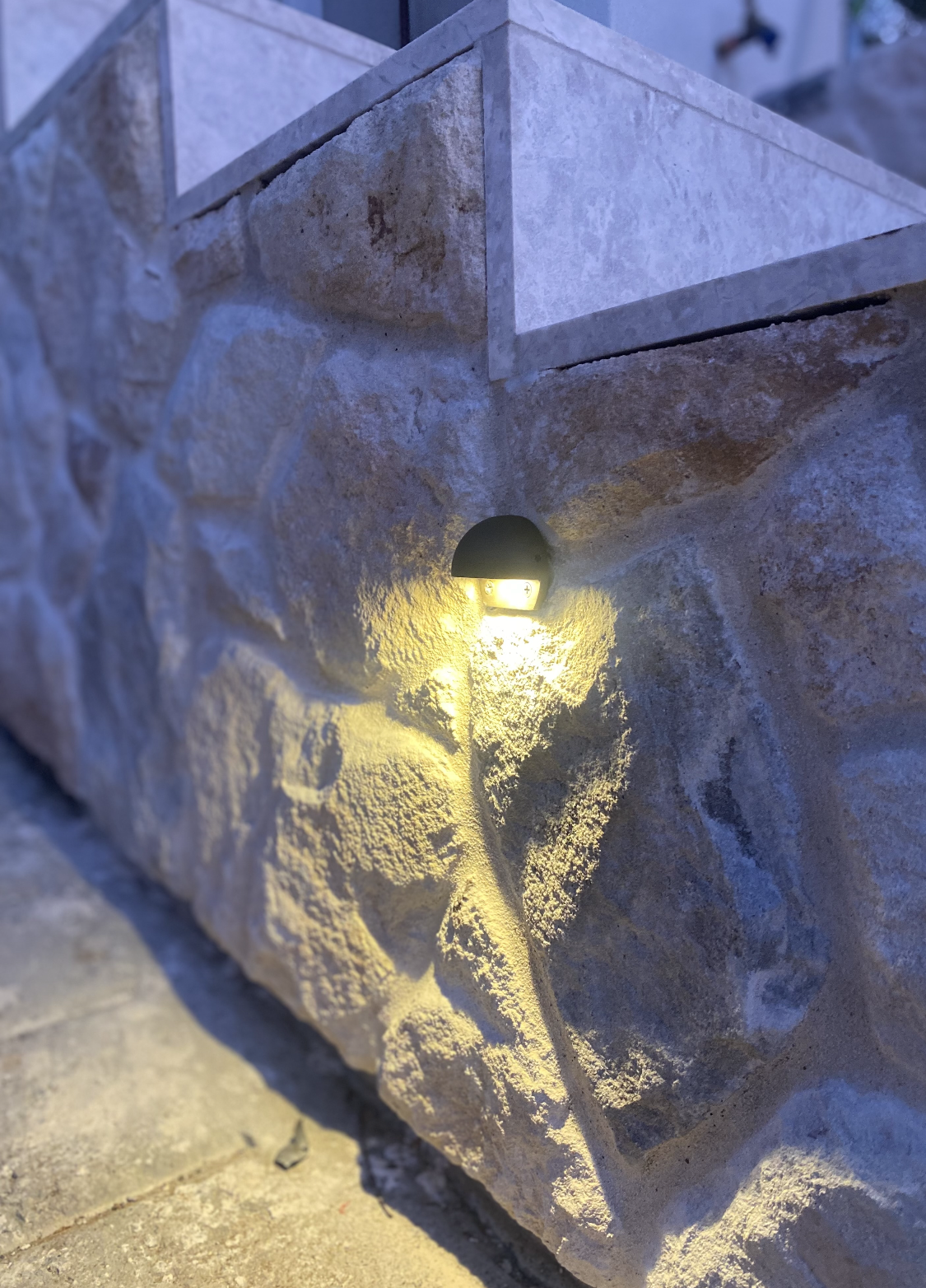

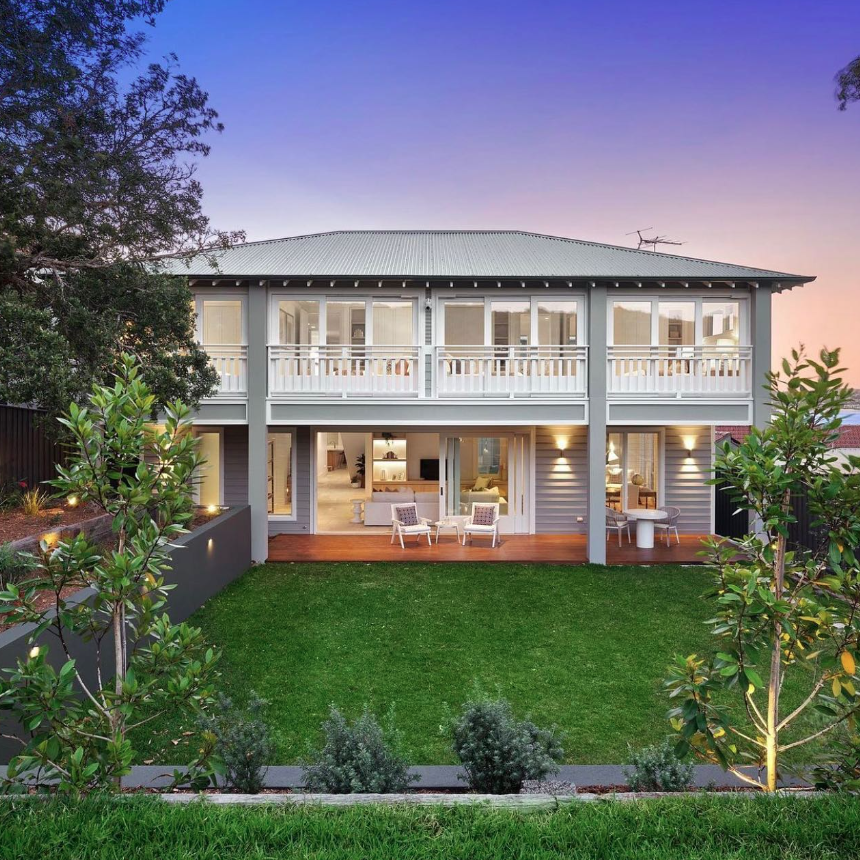

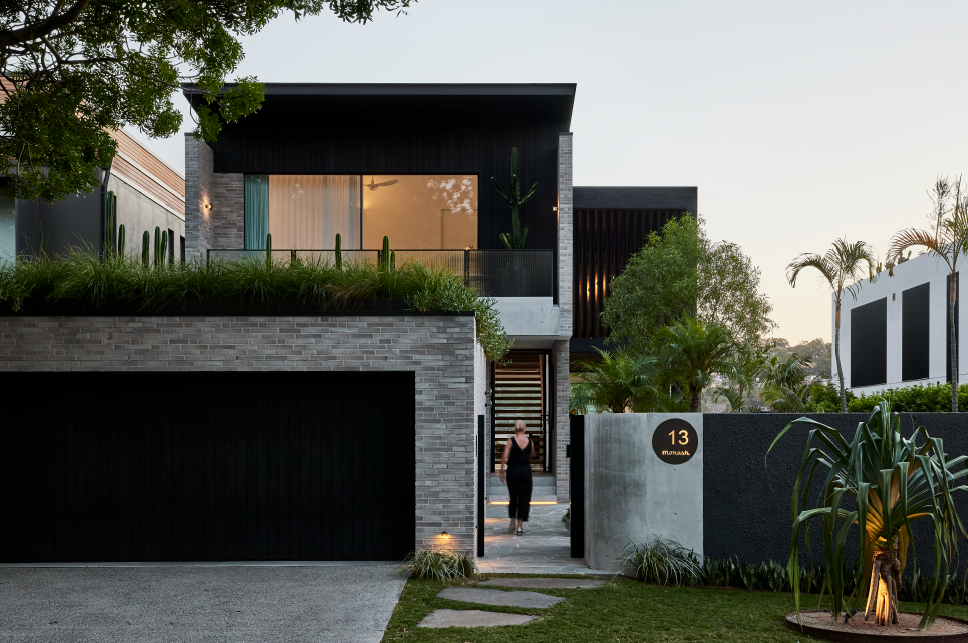

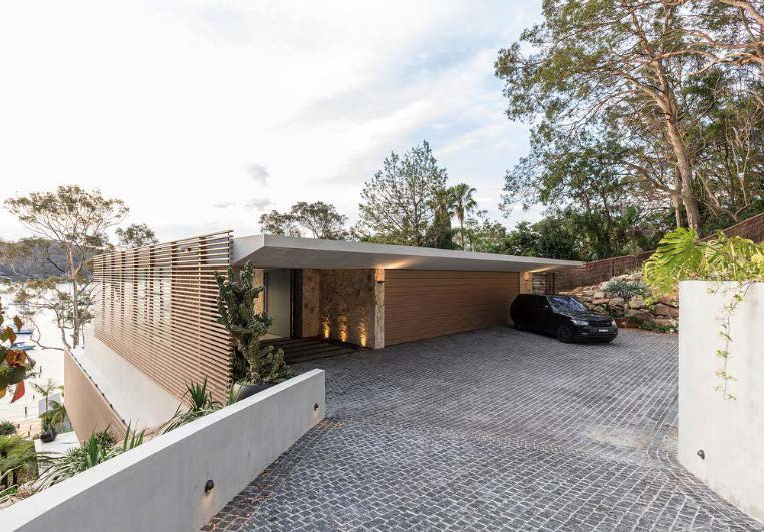

PRODUCT GALLERY
DOWNLOADS
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
• 150W/12V Driver (Dimmable) - Remote Driver
• 240W/12V Driver (Dimmable) - Remote Driver
WIRING INFORMATION
Constant voltage 12V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
Electricians must use silicon-based heat shrink to secure the back of the fitting, ensuring there is no water leakage and allowing for proper drainage during careful installation to prevent water damage.
Failure to adhere to these guidelines will result in voiding the warranty.
DRIVER OPTIONS
