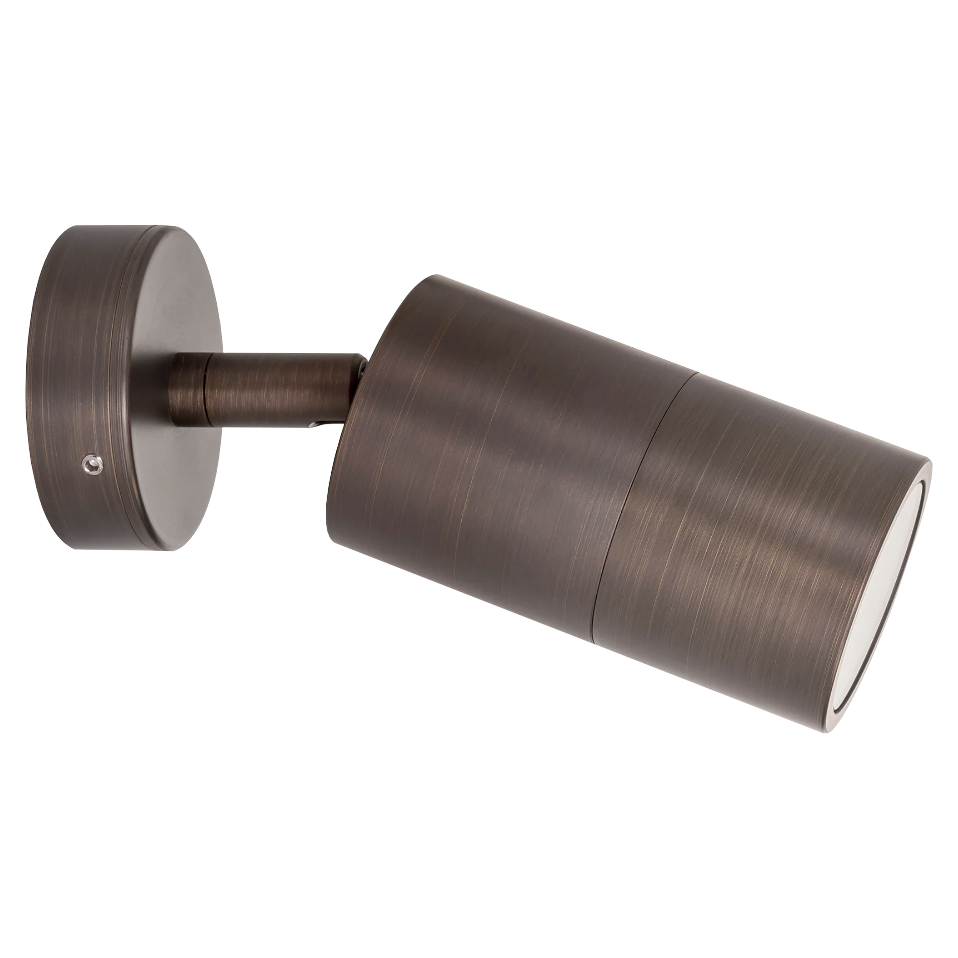

Alpha One
The Alpha One is an external spotlight with an antique brass finish. This fitting is perfect for providing external directional lighting in various settings such as terraces, walkways, above a BBQ, pool decks, gardens, and to highlight architectural features.
Our brass luminaires are suitable for all climates, including coastal environments. Brass exposed to the elements will oxidise over time to create a patina and a darker finish. This is a natural process and does not compromise the structural integrity.
Power: 4W LED MR16 (6W on request).
Lumen Output: 400lm
Colour Temperature: 3000K
Cut Out: Surface Mounted
Adjustability: 90°
CRI: 80-90
IP Rating: IP65
Wiring Info: 240V to the driver remote, low voltage to fitting. If more than one fitting, wire in parallel.
Input: 12V
Beam Angle: 60°
Dimming: DALI, phase dimming available on request, confirm with LA Lounge.
Warranty: 7 year ‘structural’ warranty.
Finishes: Antique brass. The following finishes may be available on request (prices may vary); stainless steel, copper, white or black.
SPECIFICATIONS
FINISH OPTIONS
Antique Brass
PRODUCT GALLERY
DOWNLOADS
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
• 150W/12V Driver (Dimmable) - Remote Driver
• 240W/12V Driver (Dimmable) - Remote Driver
WIRING INFORMATION
Constant voltage 12V drivers must be wired in parallel. See the below diagram on how to wire in parallel.
Electricians must use silicon-based heat shrink to secure the back of the fitting, ensuring there is no water leakage and allowing for proper drainage during careful installation to prevent water damage.
Failure to adhere to these guidelines will result in voiding the warranty.
DRIVER OPTIONS
