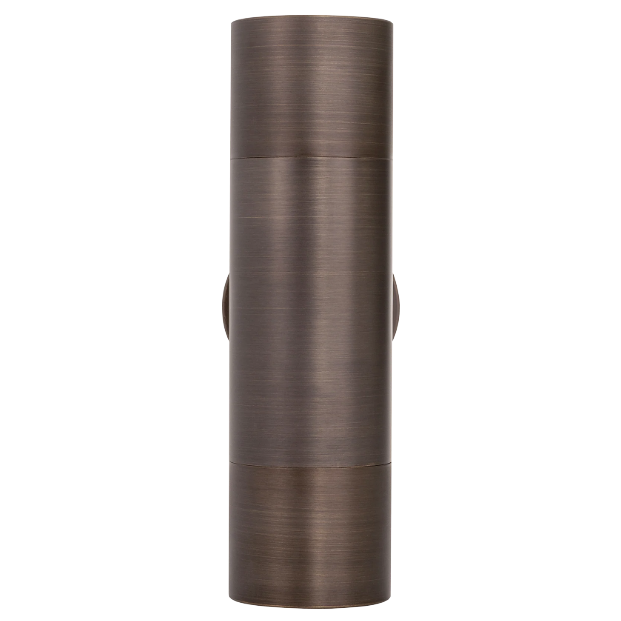

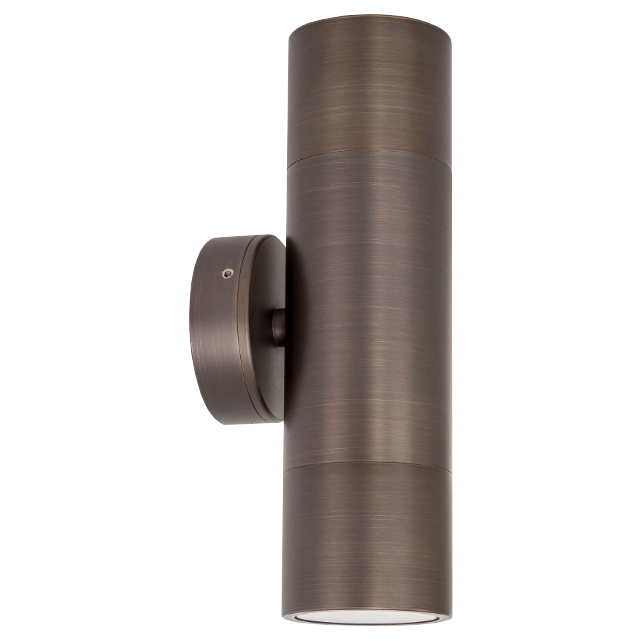

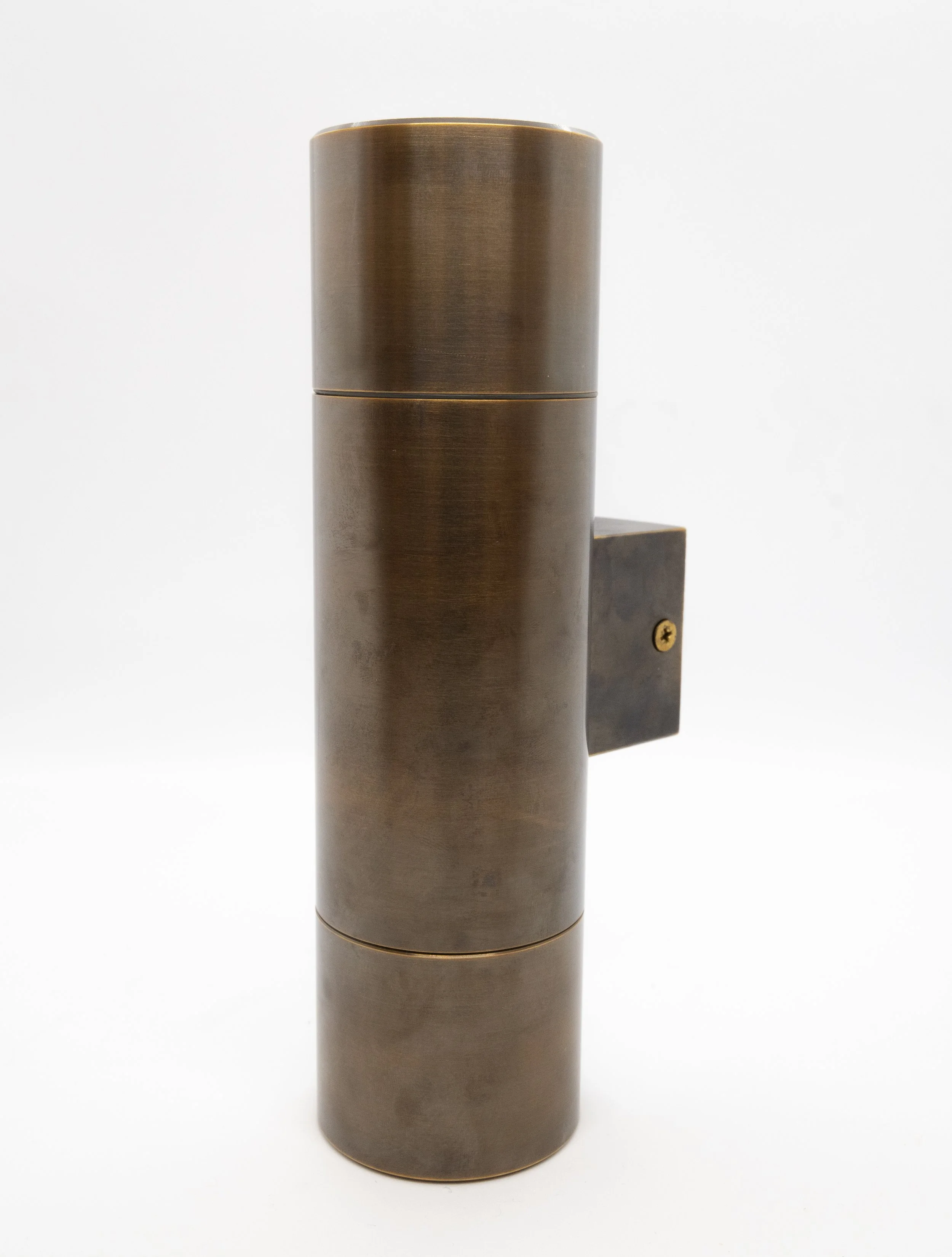

Alpha Two

The Alpha Two is an external up and down washing wall light, with an antique brass finish. This fitting has a sophisticated and refined design, ideal for providing general and ambient lighting to a range of settings, including walkways, external entrances, garages and to highlight architectural features.

Our brass luminaires are suitable for all climates, including coastal environments. Brass exposed to the elements will oxidise over time to create a patina and a darker finish. This is a natural process and does not compromise the structural integrity.

SPECIFICATIONS

Power: LED MR16 2 x 4W, 6W on request.

Lumen Output: 800lm

Colour Temperature: 3000K

Input: 12V

Beam Angle: 65°

Adjustability: Fixed

Cut Out: Surface Mounted

IP Rating: IP65

Wiring Info: 240V to the driver remote, low voltage to fitting. If more than one fitting, wire in parallel.

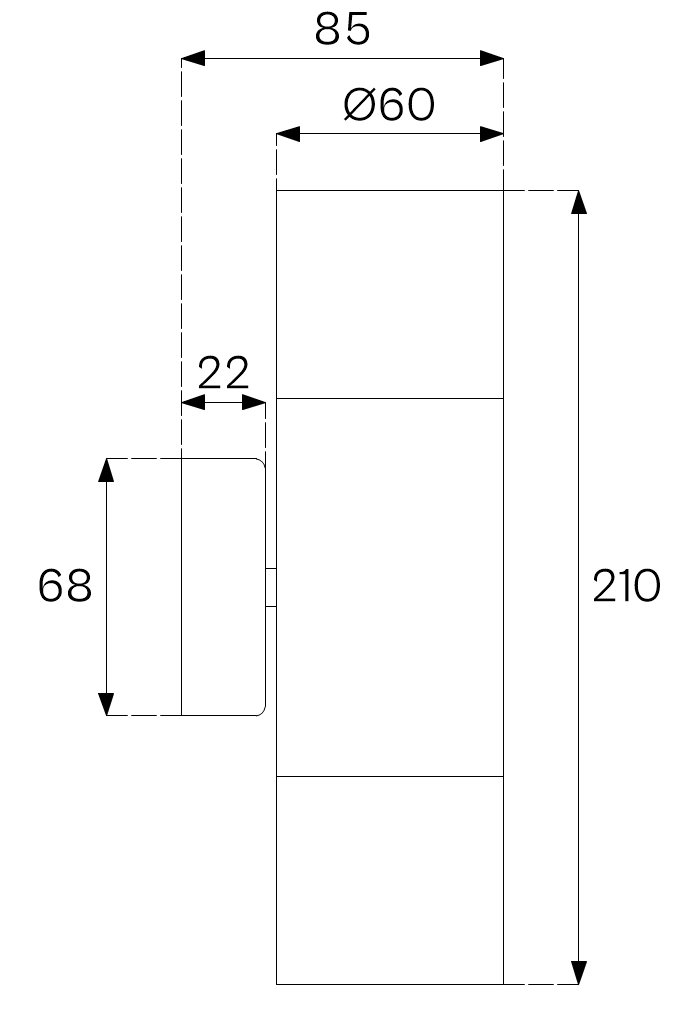

Base Size: Diameter - 80mm. Cable entry in the centre.

FINISH OPTIONS

Antique Brass

PRODUCT GALLERY

DOWNLOADS

Specification Data Sheet

Photometric IES Files

• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
• 150W/12V Driver (Dimmable) - Remote Driver
• 240W/12V Driver (Dimmable) - Remote Driver

WIRING INFORMATION

Constant voltage 12V drivers must be wired in parallel. See the below diagram on how to wire in parallel.

Electricians must use silicon-based heat shrink to secure the back of the fitting, ensuring there is no water leakage and allowing for proper drainage during careful installation to prevent water damage.

Failure to adhere to these guidelines will result in voiding the warranty.
