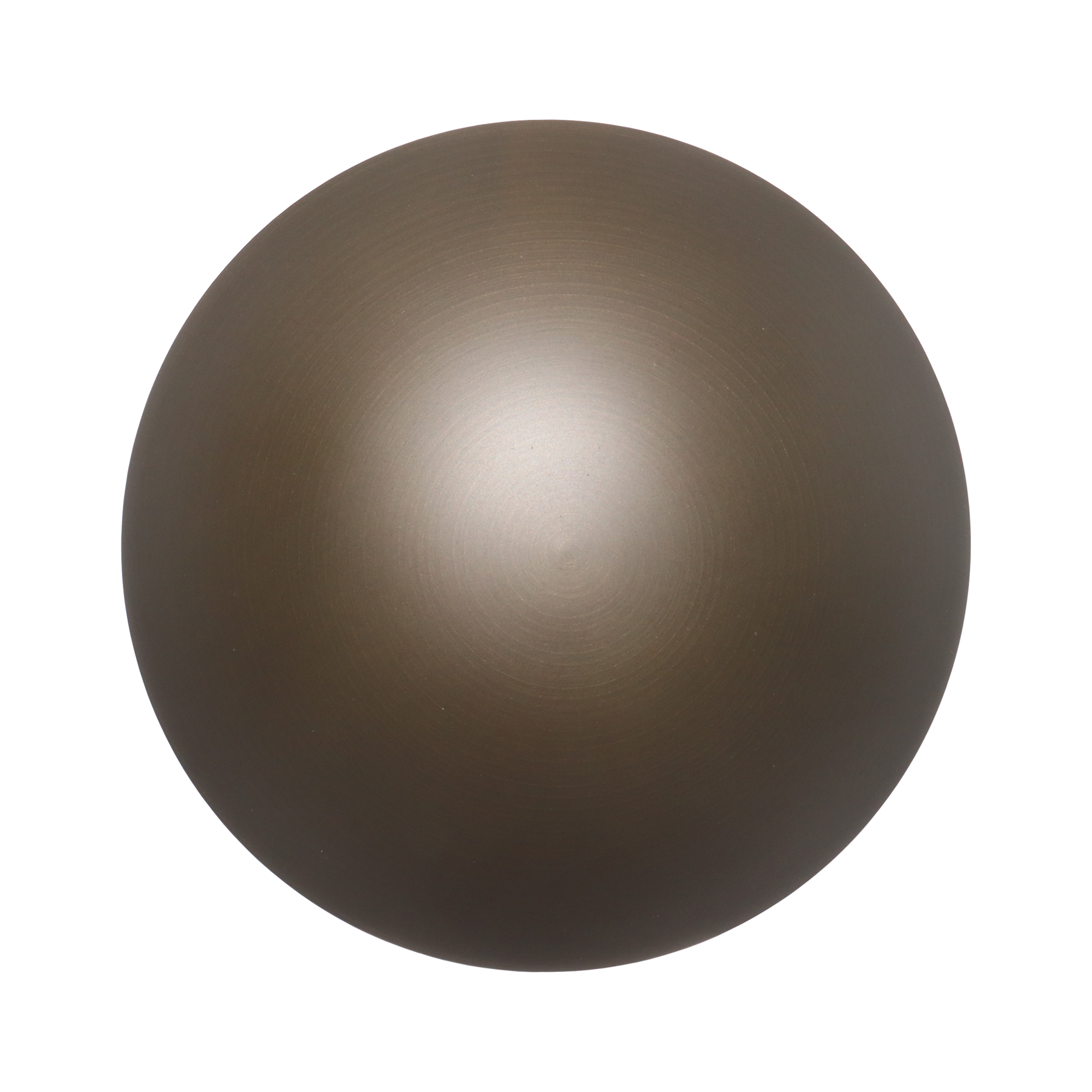

Eclipse I
The Eclipse I is a solid brass halo wall light suitable for interior and exterior applications. This fitting is ideal for all areas, including coastal locations, as the brass will oxidise overtime and patina. The Eclipse I is ideal for ambient lighting and to accentuate architectural features.
Our brass luminaires are suitable for all climates, including coastal environments. Brass exposed to the elements will oxidise over time to create a patina and a darker finish. This is a natural process and does not compromise the structural integrity.
SPECIFICATIONS
Power: 3W LED MR16
Lumen Output: 280lm
Colour Temperature: 3000K
Cut Out: Surface Mounted

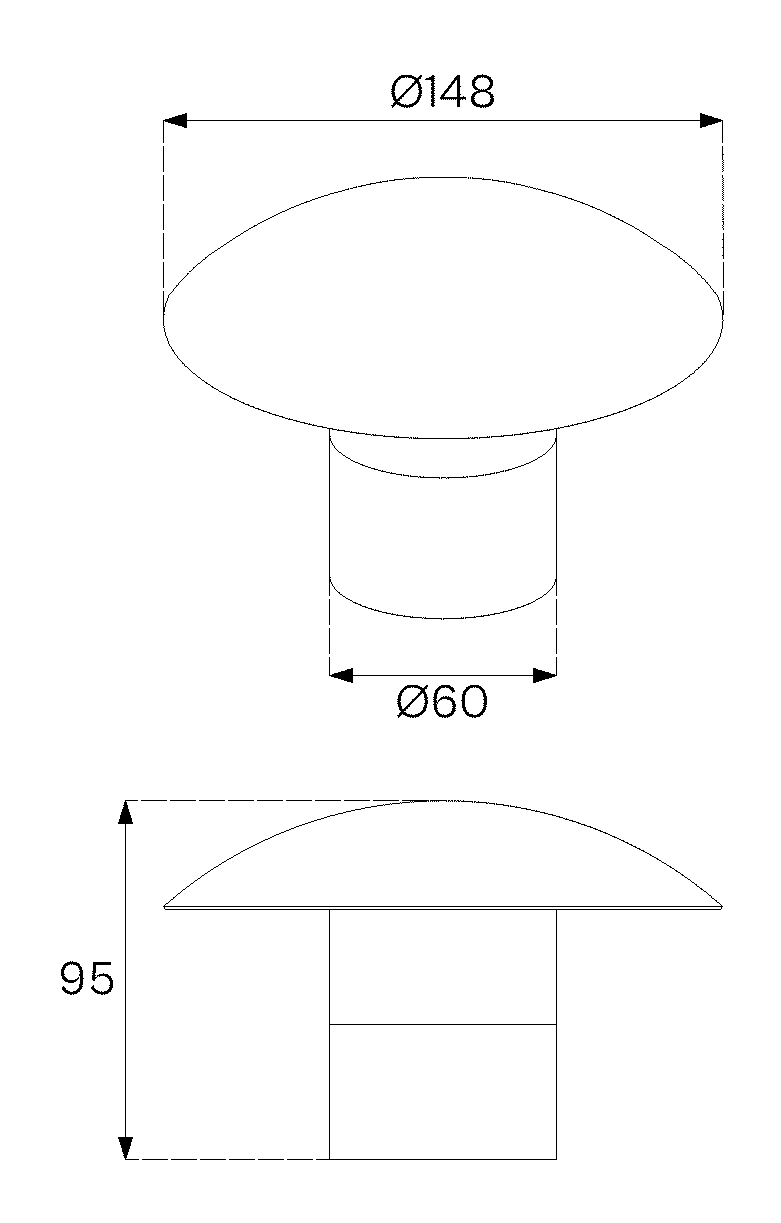

Depth: 95mm
Adjustability: Fixed
CRI: 80-90
IP Rated: 65
Wiring Info: 240V to driver remote, low voltage to fitting. If more than one fitting, wire in parallel.
Input: 12V
Beam Angle: 36°
Dimming: DALI
Warranty: 7 year 'structural' warranty.
FINISH OPTIONS
Antique Brass
CONTROL GEAR OPTIONS
-
• 4W MR16 Globe (Non-Dimmable)
-
• 4W MR16 Globe (Non-Dimmable)
DRIVER OPTIONS
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
-
• 36W/12V Driver (Dimmable) - Remote Driver
• 75W/12V Driver (Dimmable) - Remote Driver
PRODUCT GALLERY
DOWNLOADS
WIRING INFORMATION
Constant voltage 12V drivers must be wired in parallel. See below diagram on how to wire in parallel.
Electricians must a use silicon-based heat shrink to secure the back of the fitting, ensuring there is no water leakage and allowing for proper drainage during careful installation to prevent water damage.
Failure to adhere to these guidelines will result in voiding the warranty.
