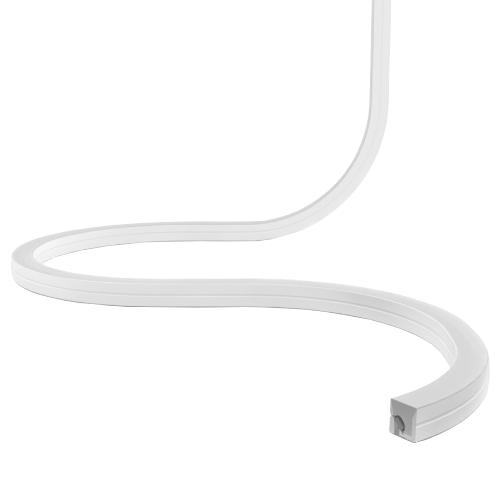

LED Flex 10mmx10mm
The LED Flex 10x10mm is a 3D bending, dot free flexible LED strip, available in 10m rolls. This LED is suitable for installation in curved ceilings, coffers, kickers and joinery. This fitting is IP-rated 67 and suitable for installation in interior, exterior areas.
SPECIFICATIONS
Power: 10W/m LED
Colour Temperature: 3000K
Cut Out: 10mm x 10mm, allow 2mm more.
Depth: 10mm, allow 2mm more.
Adjustability: Fixed; flexible 3D bend.
CRI: 90
IP Rated: 67
Wiring Info: 240V/ DALI to driver, low voltage, driver remote.
Input: 24V
Dimming: DALI, Phase.
Finishes: White
Warranty: 3 years.
FINISH OPTIONS
White
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver

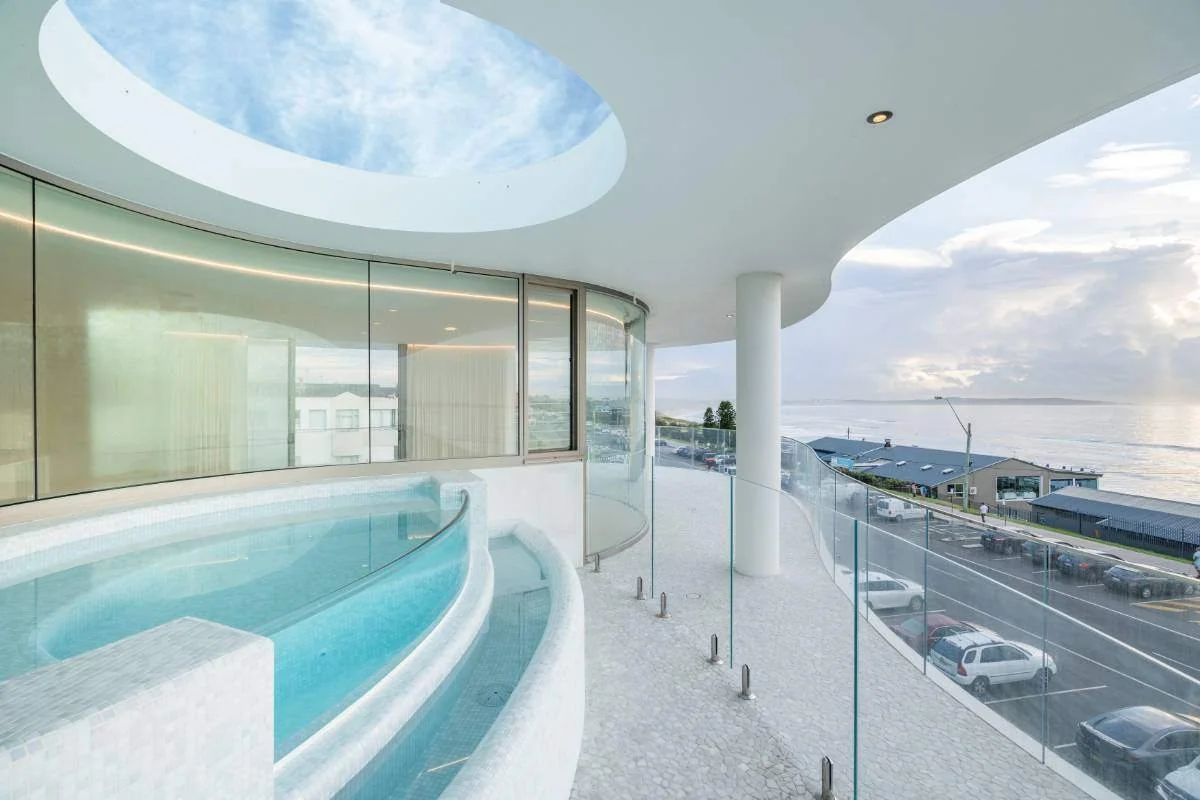

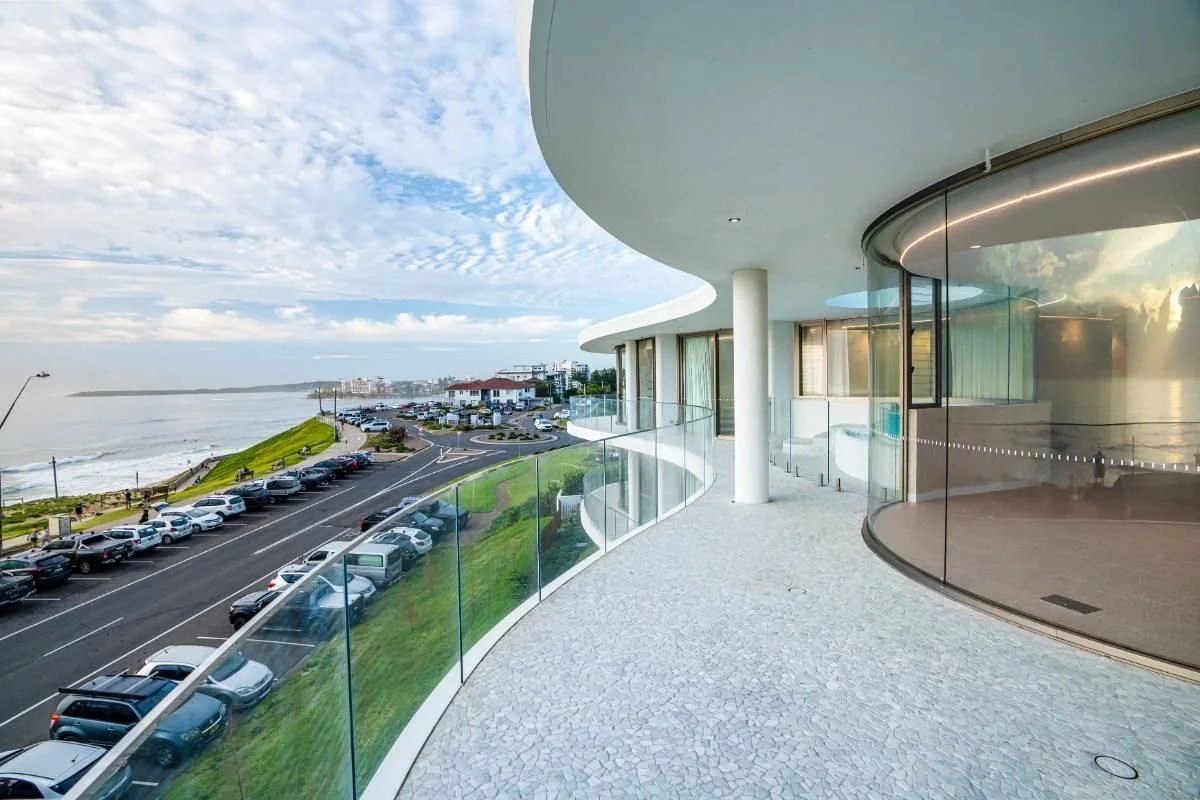

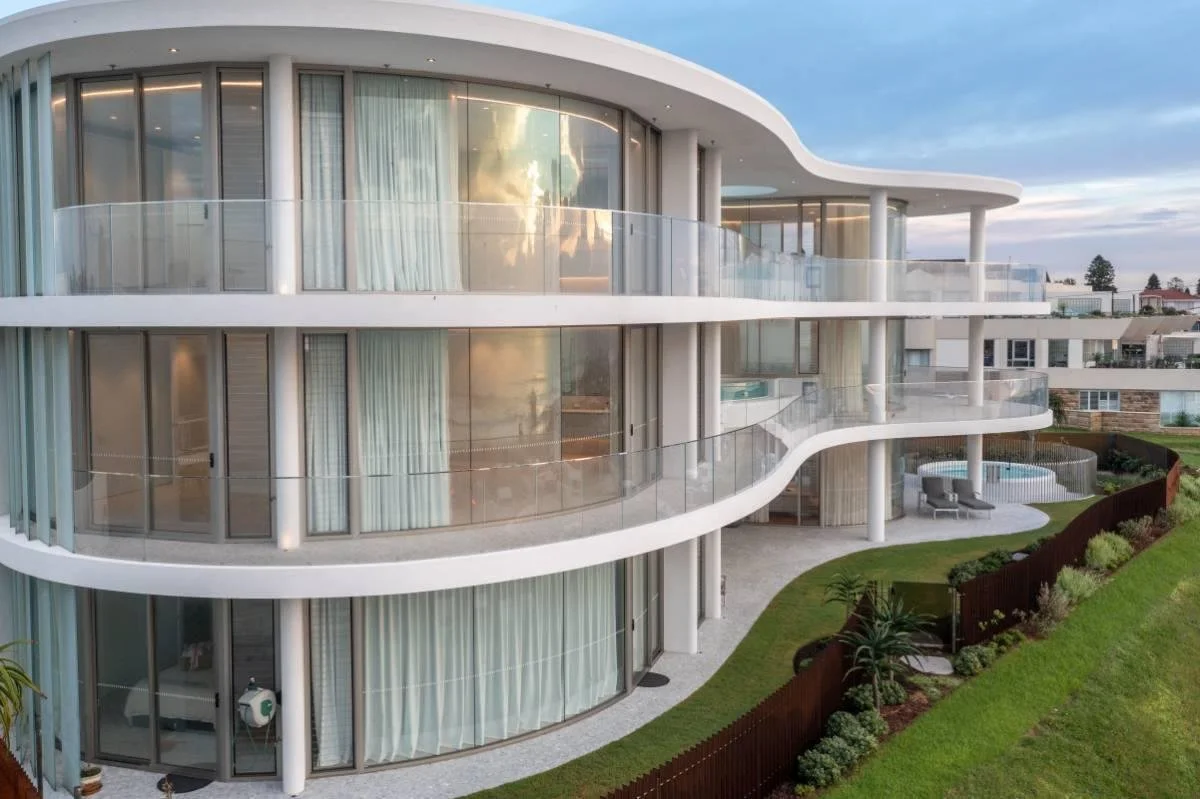

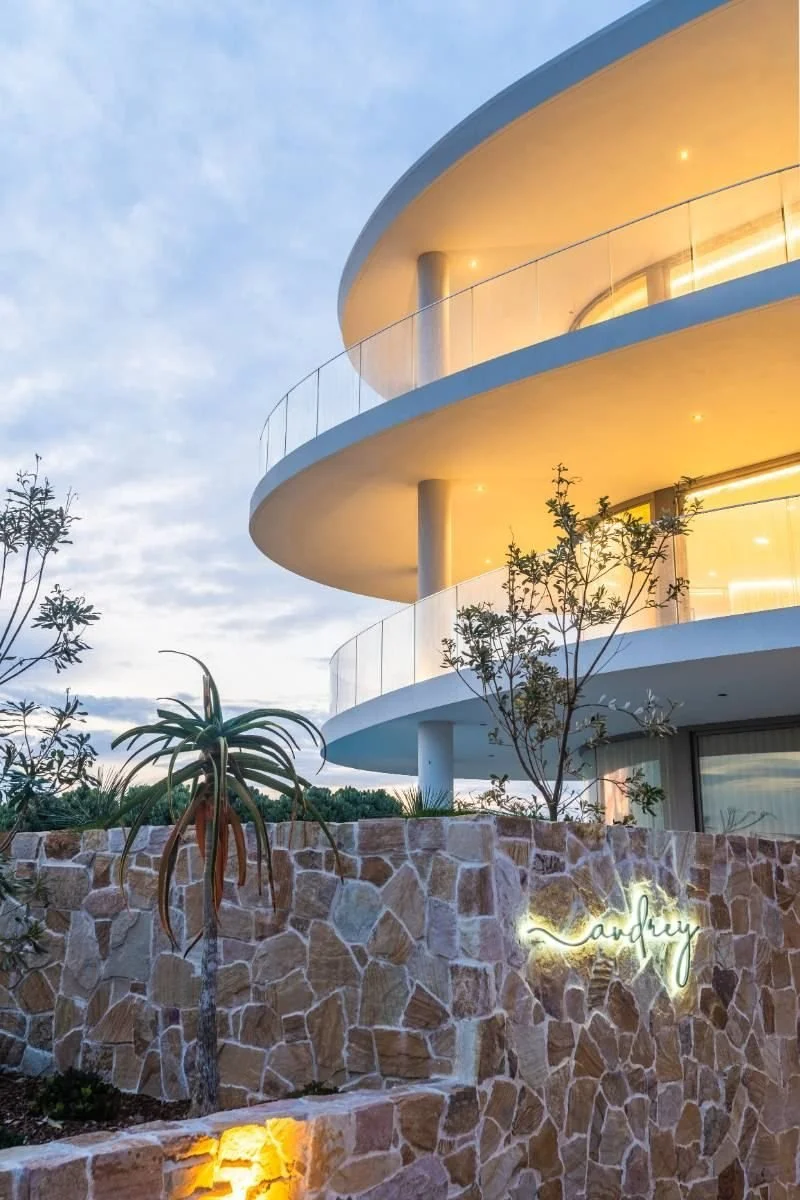

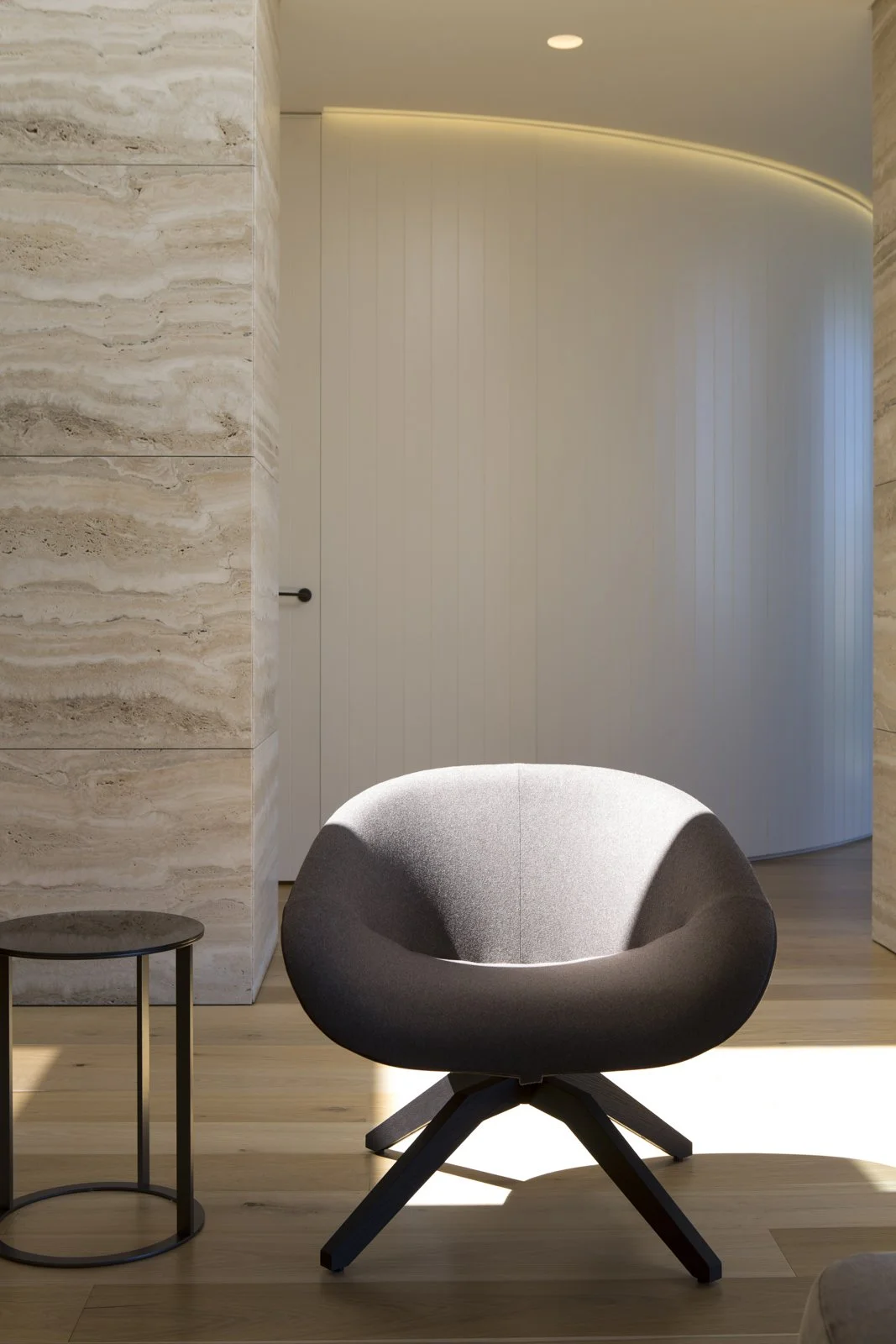

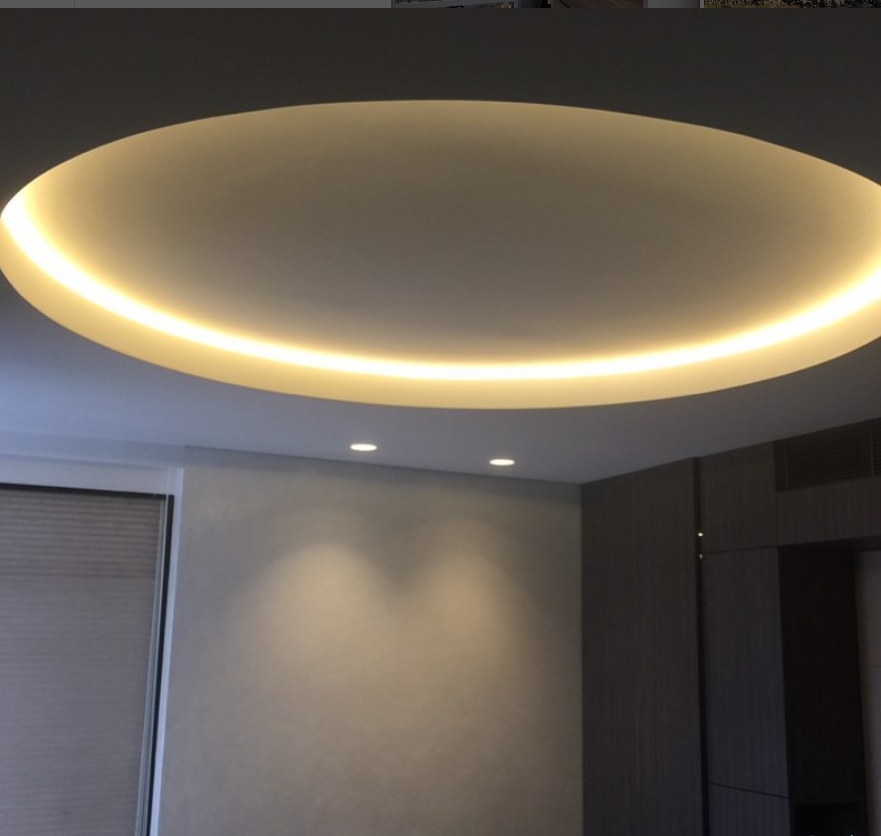

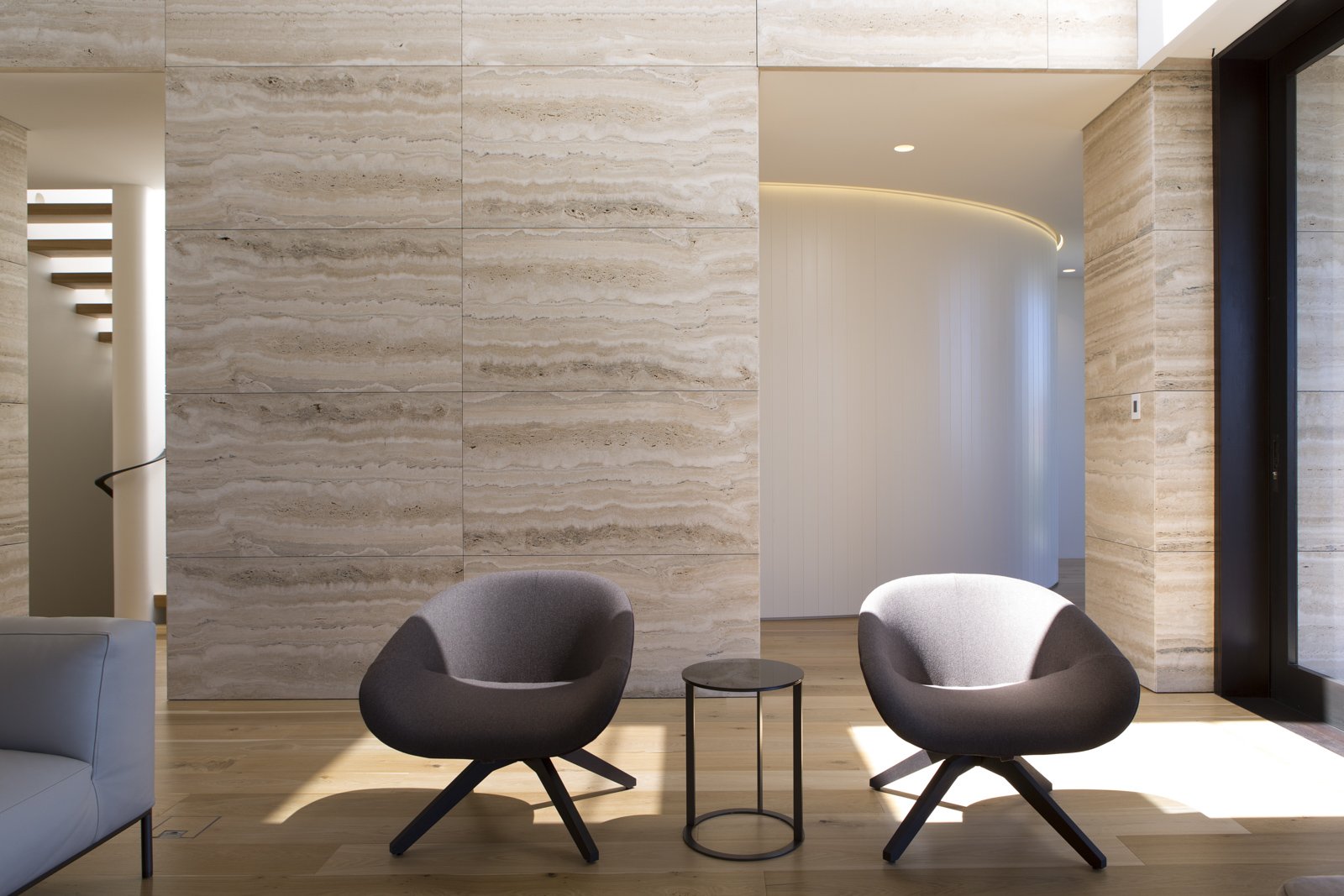

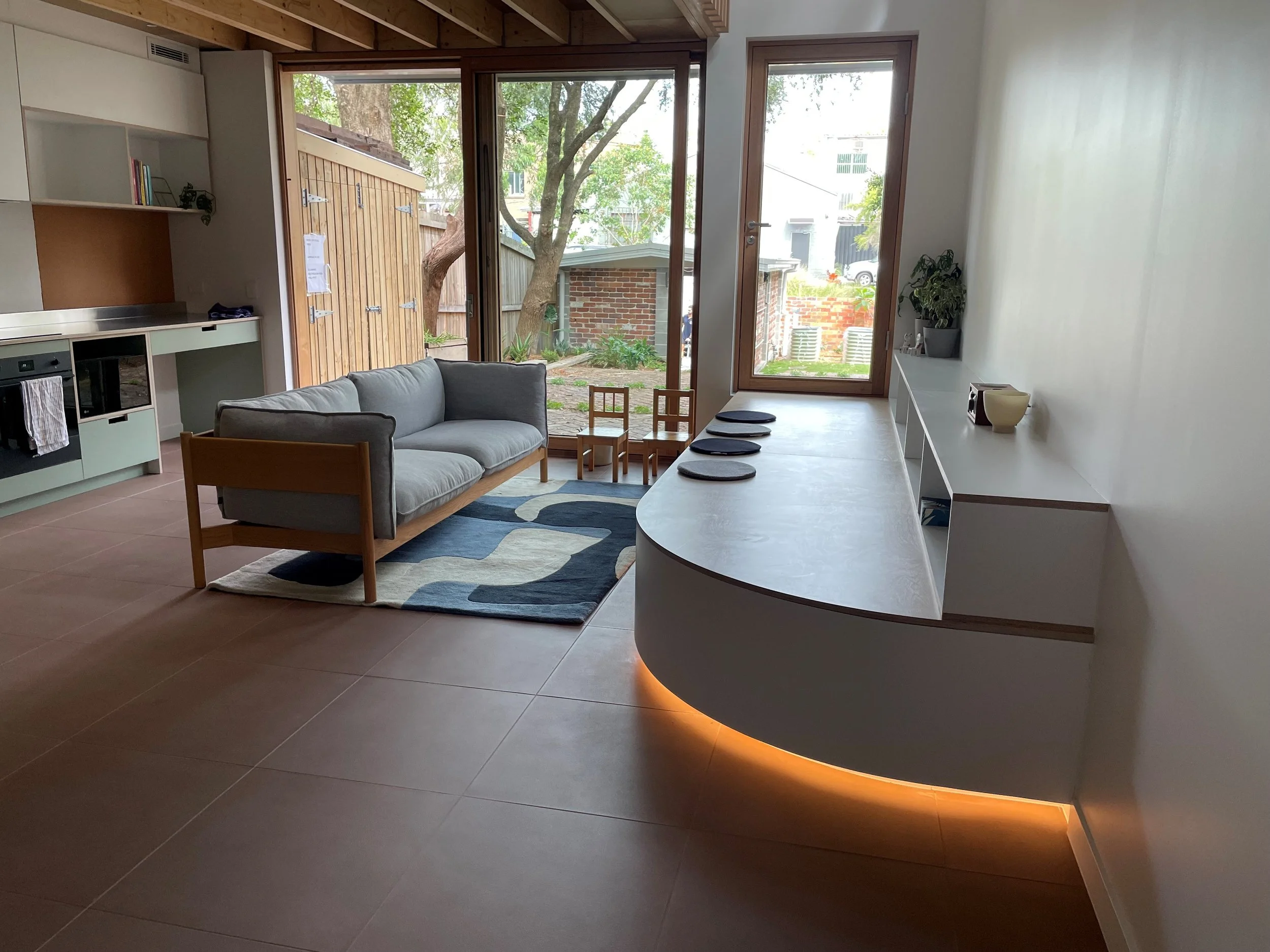

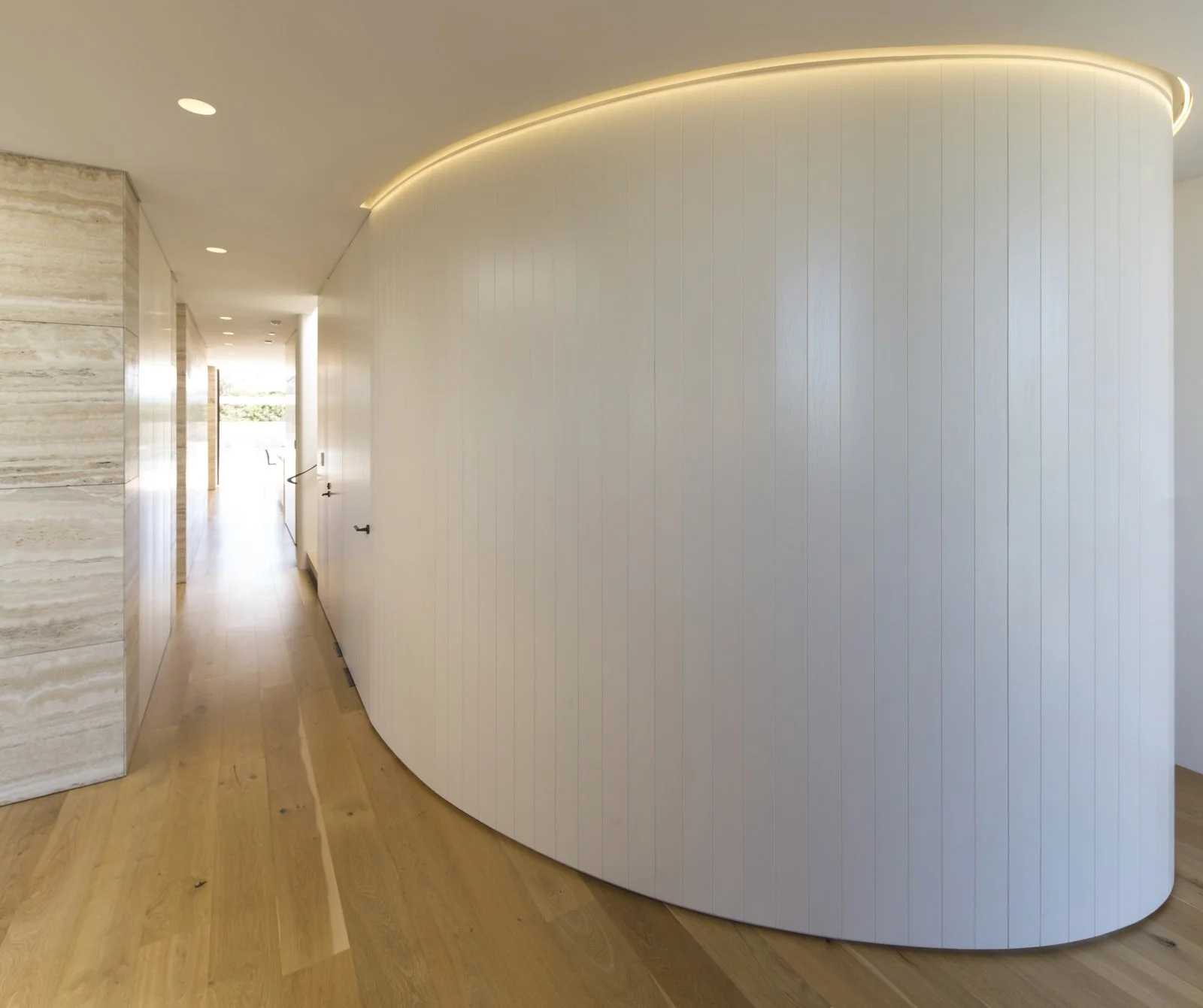

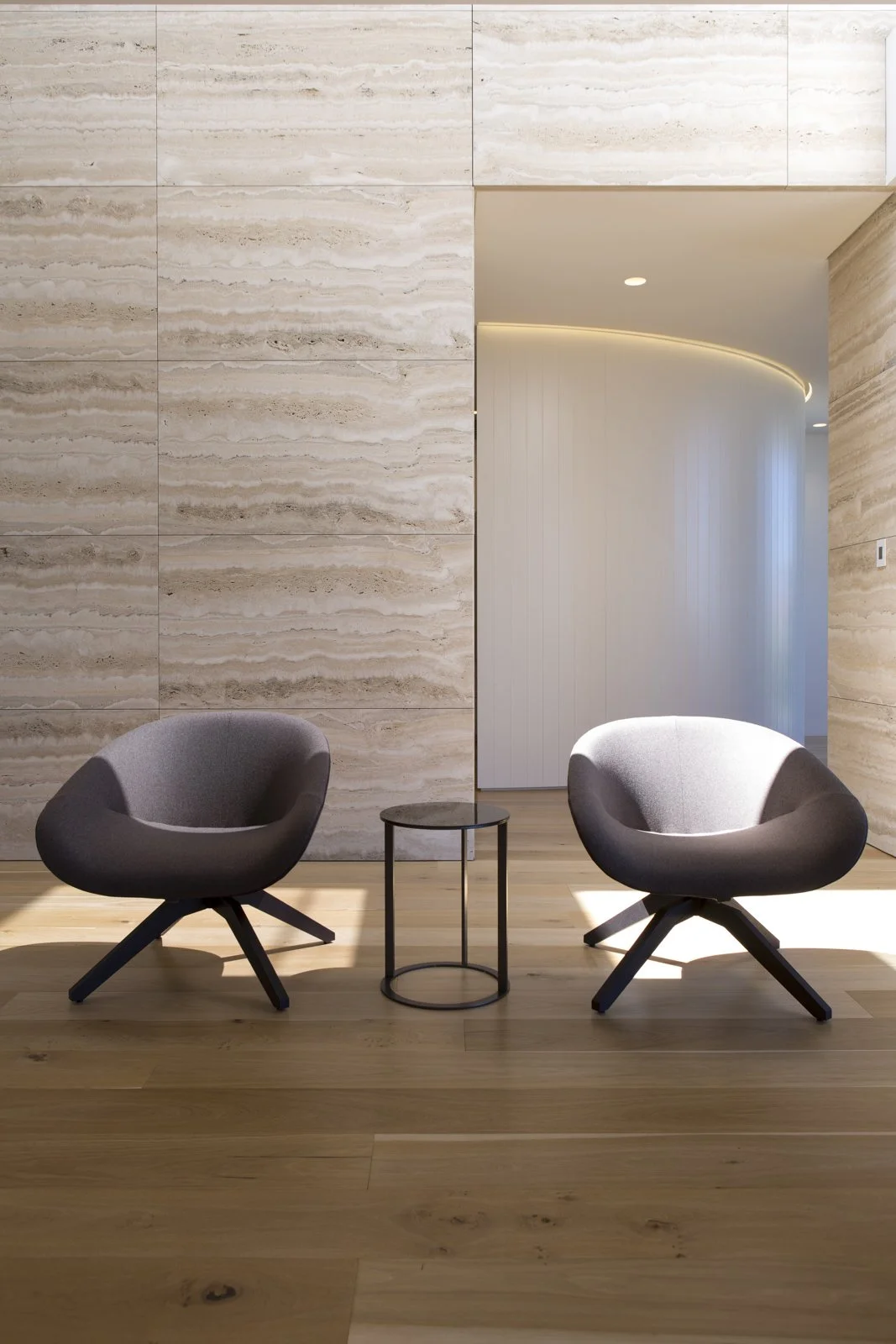

PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
