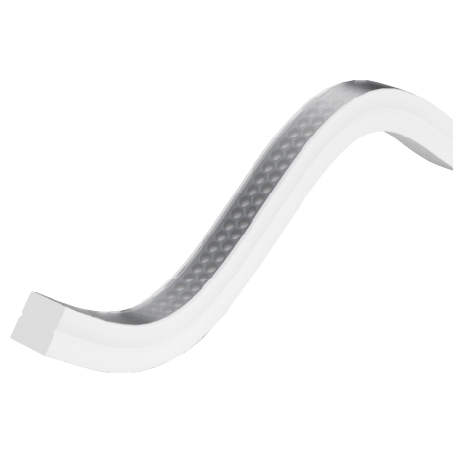

LED Flex 10mmx10mm Zero

The LED Flex 10x10mm Zero is a top bending, flexible LED strip,  available in 5m rolls. The LED is anti-glare, providing a soft and uniform light, minimising blue light and flicker. This LED is suitable for installation in curved mirrors, joinery and ceilings in interiors and exterior settings.

SPECIFICATIONS

Power: 10W/m LED

Lumen Output: 900lm

Colour Temperature: 3000K

Cut Out: 10mm x 10mm, allow 2mm more.

Depth: 10mm, allow 2mm more.

Adjustability: Fixed; flexible 3D bend.

CRI: 90

IP Rated: 67

Wiring Info: 240V/ DALI to driver, low voltage, driver remote.

Input: 24V

Dimming: DALI, Phase.

Finishes: White

Warranty: 3 years.

FINISH OPTIONS

White

CONTROL GEAR OPTIONS

  • • 36W/24V Driver (Dimmable) - Remote Driver

    • 75W/24V Driver (Dimmable) - Remote Driver

    • 150W/24V Driver (Dimmable) - Remote Driver

    • 240W/24V Driver (Dimmable) - Remote Driver

  • • 36W/24V Driver (Dimmable) - Remote Driver

    • 75W/24V Driver (Dimmable) - Remote Driver

    • 150W/24V Driver (Dimmable) - Remote Driver

    • 240W/24V Driver (Dimmable) - Remote Driver

PRODUCT GALLERY

DOWNLOADS

Specification Data Sheet

Photometric IES Files

WIRING INFORMATION

Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.

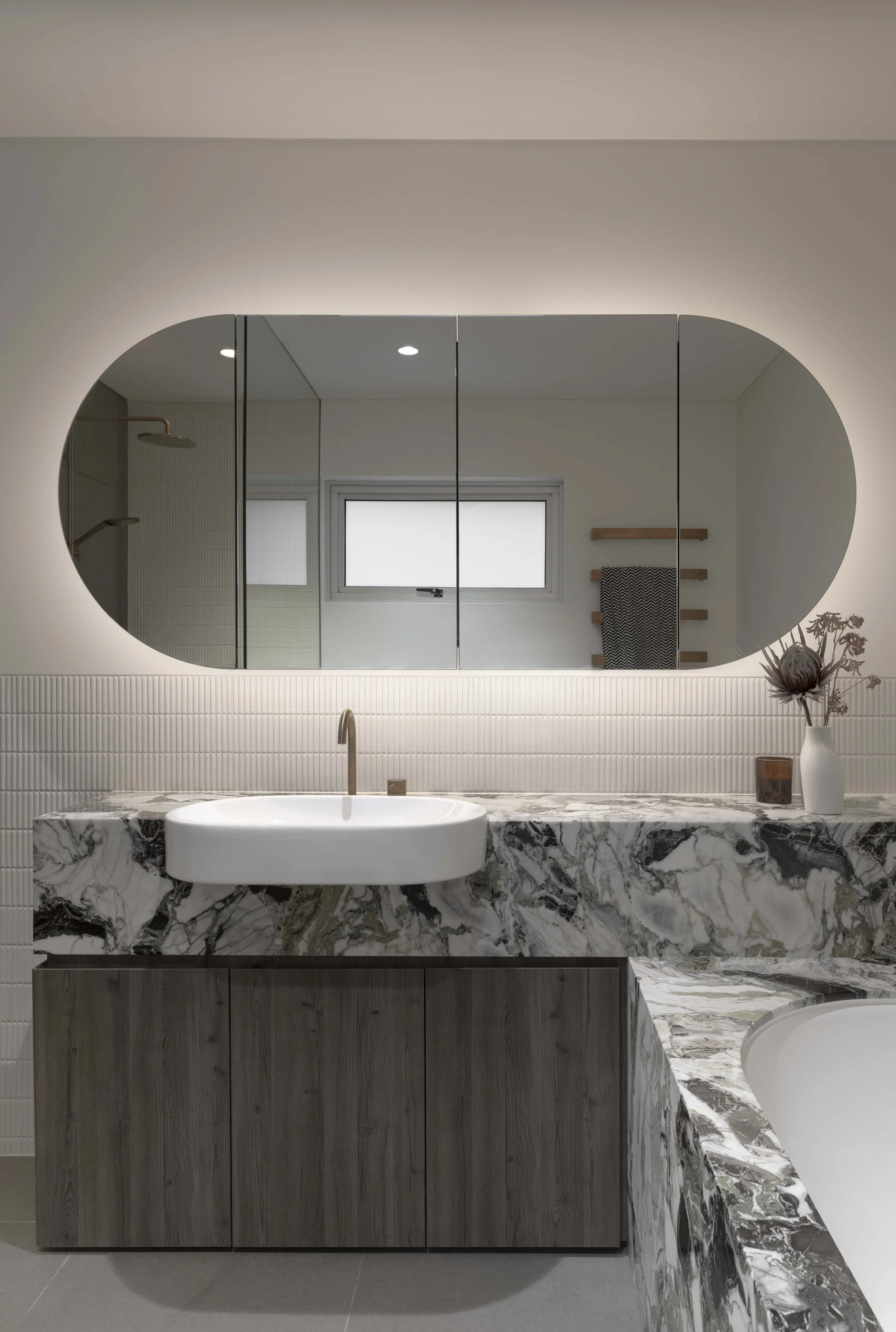

LURLINE BAY 14-07-2023_067B.JPG

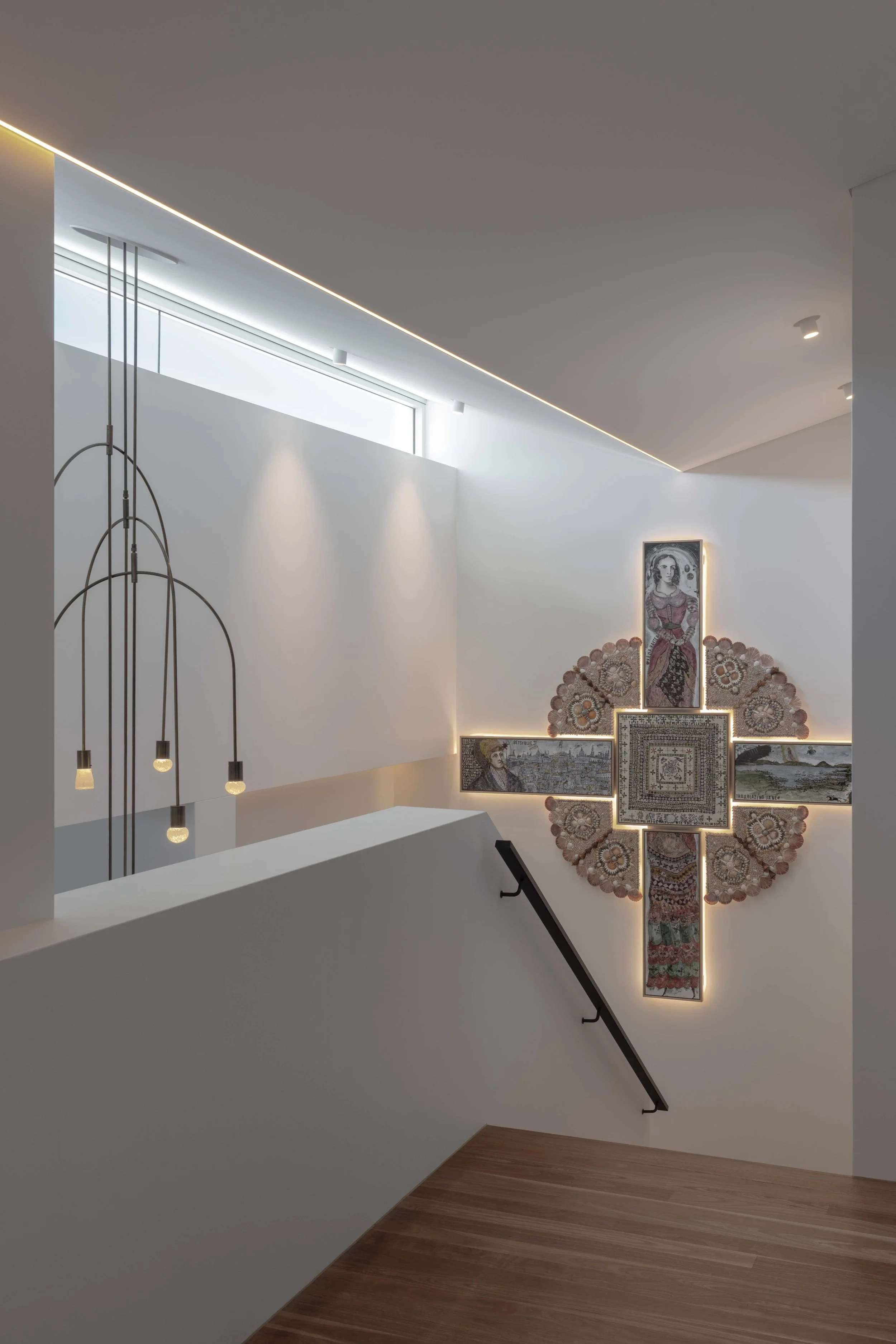

LURLINE BAY 13-07-2023_164B.JPG
