Deep Cover Fixed

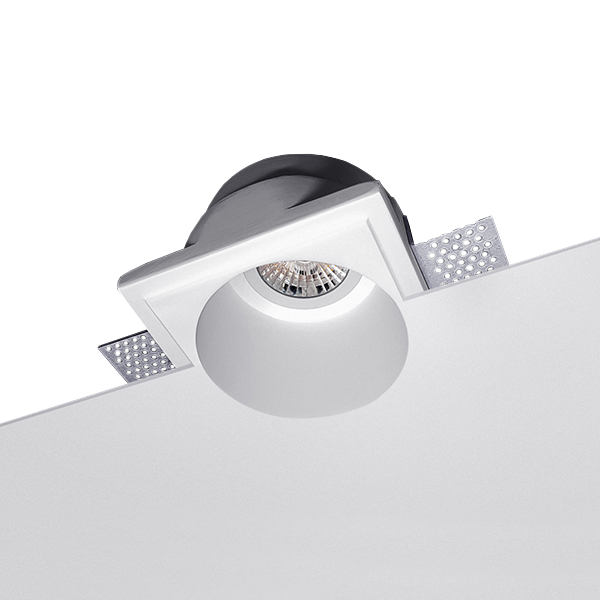

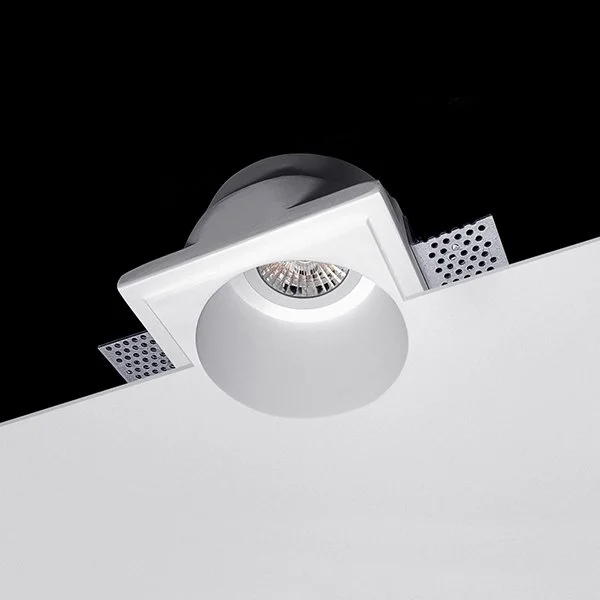

INSET PLASTER DOWNLIGHT

The Deep Cover Fix is an inset plaster downlight which has a seamless appearance, becoming a part of the fabric of the ceiling when installed. This downlight can provide both general, task and art lighting.

SPECIFICATIONS

Power: 10W COB-LED, 8W on request.

Lumen Output: 840lm (10W). 640lm (8W).

Colour Temperature: 3000K

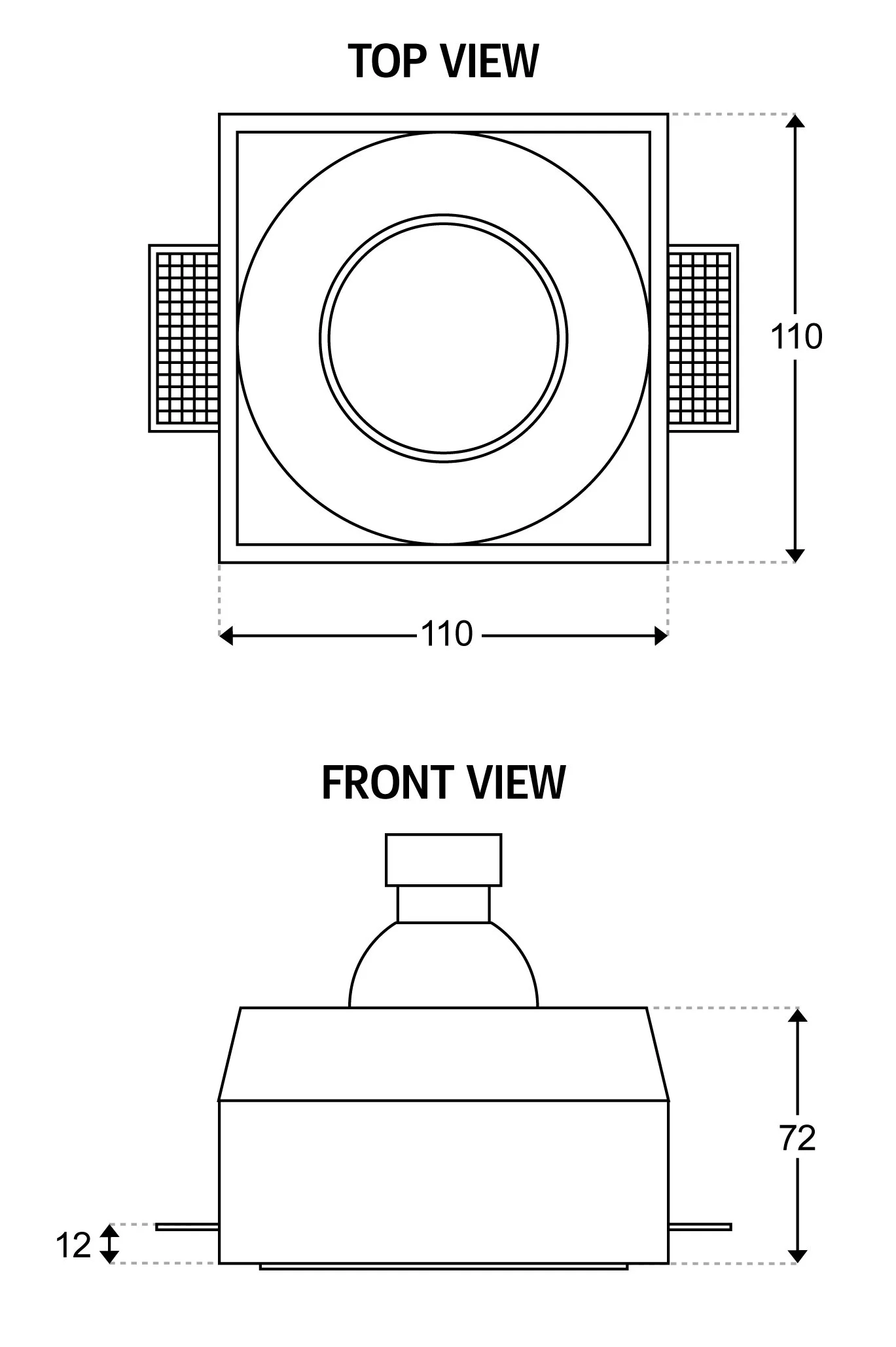

Cut Out: 113mm x 113mm

Depth: 145mm (10W), 124mm (8W). Allow 10mm more in ceiling.

Adjustability: Fixed

CRI: 95

IP Rated: 20, for use in wet areas or externally, contact LA Lounge.

Wiring Info: 240V/DALI to driver.

Input: 240V, DALI, 5G Wireless

Beam Angle: 55°

Dimming: DALI, Phase, CCT Tunable White

CCT Tunable White: 2200K-4500K

Warranty: 3 years.

FINISH OPTIONS

Plaster/Gypsum

CONTROL GEAR OPTIONS

• 10W 3000K Globe & Local Driver (Dimmable)
• 10W 2700K Globe & Local Driver (Dimmable) on request
• 8W 3000K Globe & Local Driver (Dimmable) on request
• 10W 3000K Globe & Local Driver (Dimmable)
• 10W 2700K Globe & Local Driver (Dimmable) on request
• 8W 3000K Globe & Local Driver (Dimmable) on request
• 10W 2200K-4500K CCT Globe & Local Driver (Dimmable)
