Deep Double Cover Adj
INSET PLASTER DOUBLE DOWNLIGHT

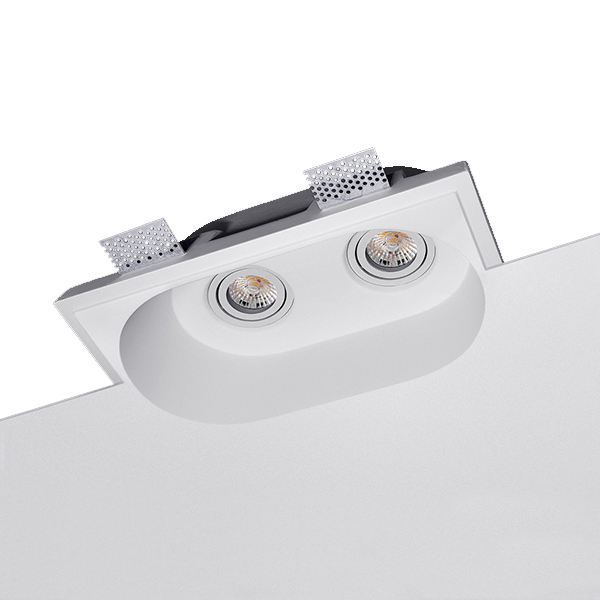

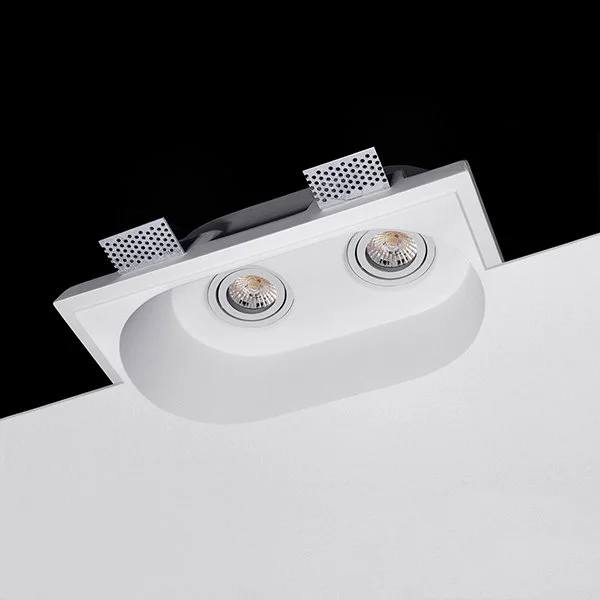

The Deep Double Cover Adj is an inset plaster adjustable double downlight which has a seamless appearance, becoming a part of the fabric of the ceiling when installed. This fitting is ideal for highlighting dining tables and kitchen islands.
SPECIFICATIONS
Power: 2 x 10W COB-LED, 8W on request.
Lumen Output: 1680lm (10W), 1280lm (8W).
Colour Temperature: 3000K
Cut Out: 291mm x 173mm
Depth: 150mm (10W), 129mm (8W). Allow 10mm more in ceiling.
Adjustability: Adjustable
CRI: 95
IP Rated: 20
Wiring Info: 240V/DALI to driver.
Input: 240V/DALI/5G Wireless
Beam Angle: 55°
Dimming: DALI, Phase, CCT Tunable White
CCT Tuneable White: 2200K-4500K
Warranty: 3 years.
FINISH OPTIONS
Plaster/Gypsum
CONTROL GEAR OPTIONS
-
• 10W 3000K Globe & Local Driver (Dimmable)
• 10W 2700K Globe & Local Driver (Dimmable) on request
• 8W 3000K Globe & Local Driver (Dimmable) on request
-
• 10W 3000K Globe & Local Driver (Dimmable)
• 10W 2700K Globe & Local Driver (Dimmable) on request
• 8W 3000K Globe & Local Driver (Dimmable) on request
-
• 10W 2200K-4500K CCT Globe & Local Driver (Dimmable)
