Deep Triple Cover Adj

INSET PLASTER TRIPLE DOWNLIGHT

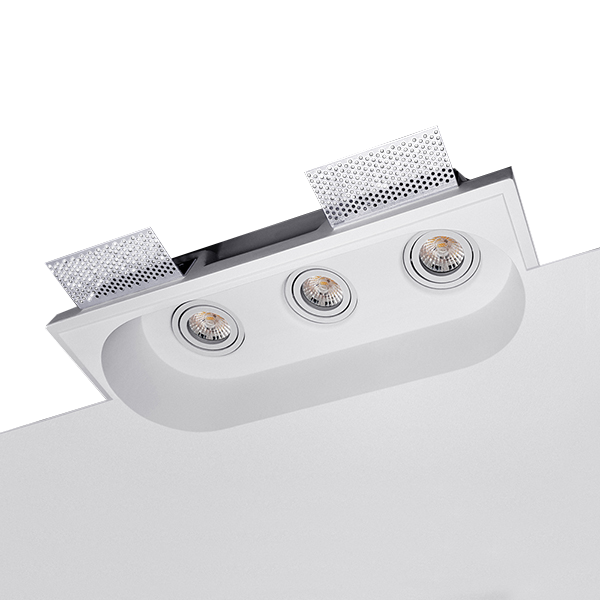

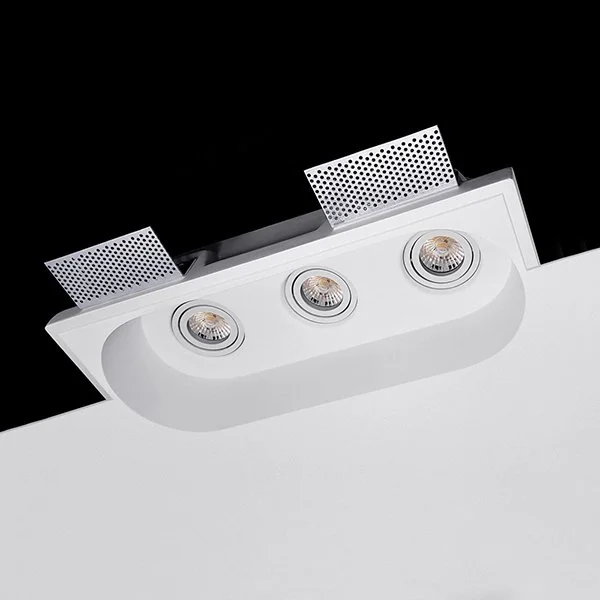

The Deep Triple Cover Adj is an inset plaster adjustable triple downlight which can be seamlessly installed into the fabric of a ceiling. This fitting is suitable for general lighting above dining tables, pool tables and kitchen islands.

SPECIFICATIONS

Power: 3 x 10W COB-LED, 8W on request.

Lumen Output: 2520lm (10W), 1920lm (8W).

Colour Temperature: 3000K

Cut Out: 409mm x 173mm

Depth: 150mm (10W), 129mm (8W). Allow 10mm more in ceiling.

Adjustability: Adjustable

CRI: 95

IP Rated: 20

Wiring Info: 240V/DALI to driver.

Input: 240V/DALI/5G Wireless

Beam Angle: 55°

Dimming: DALI, Phase, CCT Tunable White

CCT Tuneable White: 2200K-4500K

Warranty: 3 years.

FINISH OPTIONS

Plaster/Gypsum

CONTROL GEAR OPTIONS

• 10W 3000K Globe & Local Driver (Dimmable)
• 10W 2700K Globe & Local Driver (Dimmable) on request
• 8W 3000K Globe & Local Driver (Dimmable) on request
• 10W 3000K Globe & Local Driver (Dimmable)
• 10W 2700K Globe & Local Driver (Dimmable) on request
• 8W 3000K Globe & Local Driver (Dimmable) on request
• 10W 2200K-4500K CCT Globe & Local Driver (Dimmable)
