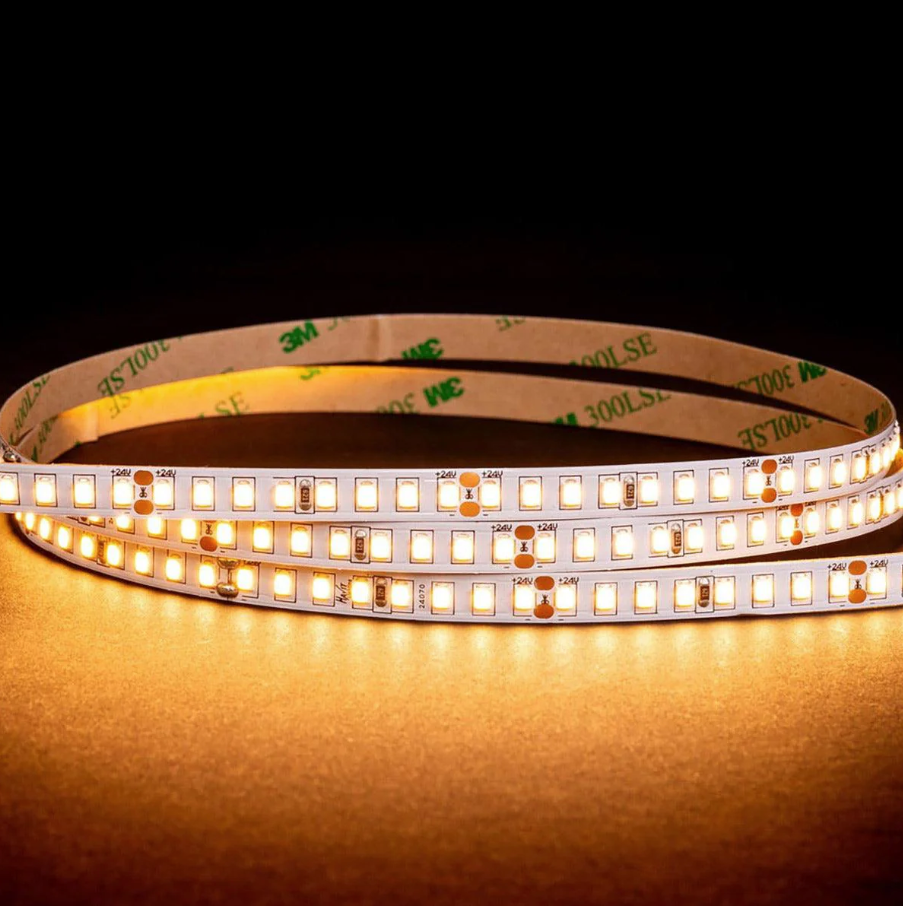

15W IP66 3000K LED Strip

The 15W IP66 3000K LED Strip is an IP-rated strip suitable for installation in LED profiles installed in interior and exterior areas. This LED strip is ideal for installation in showers, outdoor joinery and wet areas.

SPECIFICATIONS

Power: 15W LED

Lumen Output: 1300lm per metre

Colour Temperature: 3000K

Width: 12mm

Length: 5m roll per packet.

Adjustability: Fixed

CRI: 90

IP Rated: 20

Wiring Info: 240V or DALI to driver remote, low voltage to strip.

Input: 24V

Beam Angle: N/A

Dimming: DALI, Phase

Warranty: 3 years.

CONTROL GEAR OPTIONS

  • • 36W/24V Driver (Dimmable) - Remote Driver

    • 75W/24V Driver (Dimmable) - Remote Driver

    • 150W/24V Driver (Dimmable) - Remote Driver

    • 240W/24V Driver (Dimmable) - Remote Driver

  • • 36W/24V Driver (Dimmable) - Remote Driver

    • 75W/24V Driver (Dimmable) - Remote Driver

    • 150W/24V Driver (Dimmable) - Remote Driver

    • 240W/24V Driver (Dimmable) - Remote Driver

WIRING INFORMATION

Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.

DOWNLOADS

Specification Data Sheet

Photometric IES Files

Screenshot 2023-09-11 163821.png
Screenshot 2023-09-11 152615.png
Screenshot 2023-09-11 152640.png
