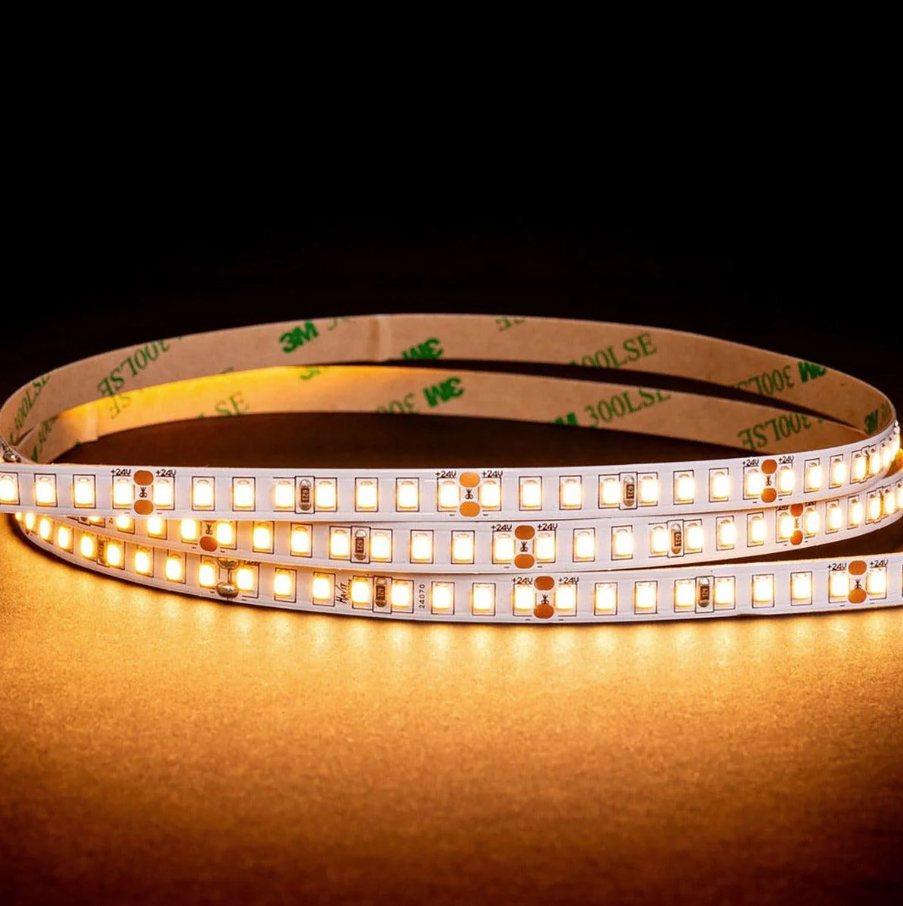

20.16W IP20 3000K LED Strip
The 20.16W IP20 3000K LED Strip is suitable for installation in LED profiles installed in interior areas where a higher lumen output is needed. This LED Strip is ideal for profiles installed in walls, ceilings and general areas.
SPECIFICATIONS
Power: 20.16W LED
Lumen Output: 1700lm per metre
Colour Temperature: 3000K
Width: 10mm
Length: 5m roll per packet.
Adjustability: Fixed
CRI: 90
IP Rated: 20
Wiring Info: 240V or DALI to driver remote, low voltage to strip.
Input: 24V
Beam Angle: N/A
Dimming: DALI, Phase
Warranty: 3 years.
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
DOWNLOADS
Photometric IES Files
